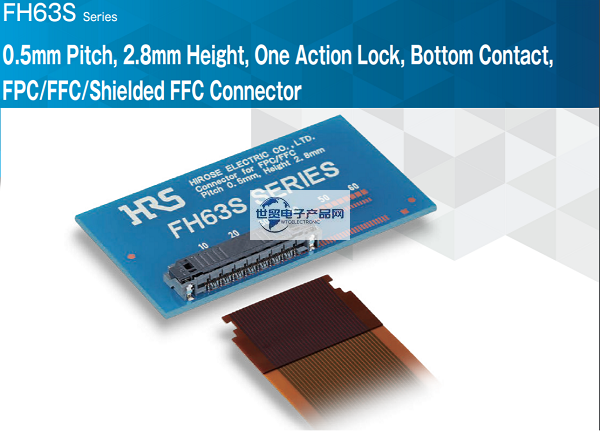

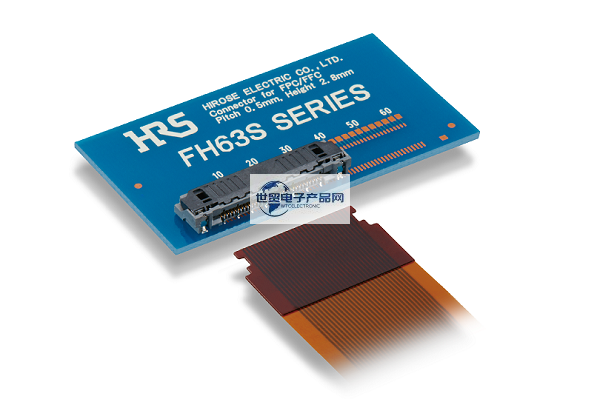

HRS|Hirose|Japan Hirose FH63S Series 0.5mm Pitch/2.8mm Height/Self-Locking FPC Connector is a: 0.5mm Pitch, 2.8mm Height, Single Action Locking, Bottom Contact, FPC/FFC/Shielded FFC Connector. Its main features are:1. Automatic single-action locking design, after installation, just insert the FPC to lock the single-action, which helps to improve the working performance. (Remove the FPC by operating the locking release.) There is no need to operate the locking lever when mating the FPC. It can be inserted with one hand.The locking design of the FH63S series helps to shorten assembly time. The locking lever will not be damaged by operation, and incomplete mating will not be caused by operation of the locking lever.2. Dust-proofHigh contact reliability is achieved by the independent spring two-point contact design, which prevents dust from causing contact failure.3. Supports FPC/FFC/Shielded FFC The FH63S, which allows you to choose from FPC, FFC, and Shielded FFC. Shielded FPC prevents EMI.4. High FPC retention forceThe connector automatically locks after a single FPC/FFC insertion action. The locking lever secures the slots on both sides of the FPC and maintains a high FPC retention force even at smaller pin counts.5. FPC/FFC Mating InspectionAfter the FPC is inserted, the position of the slots on both sides of the FPC can be inspected from above to prevent incomplete insertion.

1, HRS|Hirose|Japan Hirose FH63S series 0.5mm pitch/2.8mm height/self-locking FPC connector main product specification details:

Connector Type	PIN数
sockets	10, 20, 30, 40
Mounting distance	Number of other PINs
0.5 mm	Open Pitch
Connector length (pitch direction)	0.5 mm
12.7,   17.7, 22.7, 27.7 mm	(columns
Connector height	1
2.8 mm	Transmission Specifications
Connector width (longitudinal)	MIPI D-PHY ver.   1.2, eDP ver. 1.3
5.15 mm	transmission speed
Contact position	(Max.) Operating Temperature Range
lower contact (elec.)	125 ℃
ZIF/Non-O   ZIF/LIF	(Min.) Operating Temperature Range
Recommended FFC/FPC	-55 ℃
FPC/FFC Connectors	(nominal voltage
FPC/FFC insertion direction	AC 50.0 V
level (of achievement etc)	(nominal voltage
movable type orientation	DC 50.0 V
	rated current
	0.5 A

------------------------------------------------------------------------------------------------

2, Japan HRS | Hirose | Hirose FH63S series 0.5mm pitch / 2.8mm height / self-locking FPC connector main material number / type:

FH63S-20S-0.5SH(99)	FH63S-10S-0.5SH(99)	FH63S-20S-0.5SH	FH63S-10S-0.5SH	FH63S-30S-0.5SH
FH63S-40S-0.5SH(99)	FH63S-30S-0.5SH(99)	FH63S-40S-0.5SH

------------------------------------------------------------------------------------------------

3, Japan HRS connectors - HRS | Hirose | Hirose FH63S series 0.5mm pitch / 2.8mm height / self-locking FPC connector This product seller:

Agent sales [Japan HRS connectors - HRS | Hirose | Japan Hirose FH63S series 0.5mm pitch / 2.8mm height / self-locking FPC connectors] as well as the contents of the second item in the table list of all (material number / model) connector products; if you want to buy or understand what we can provide connector | harness | cable product solutions, welcome through the following If you want to purchase or know what connectors, harnesses or cables we can provide, please feel free to contact us through the following ways.
