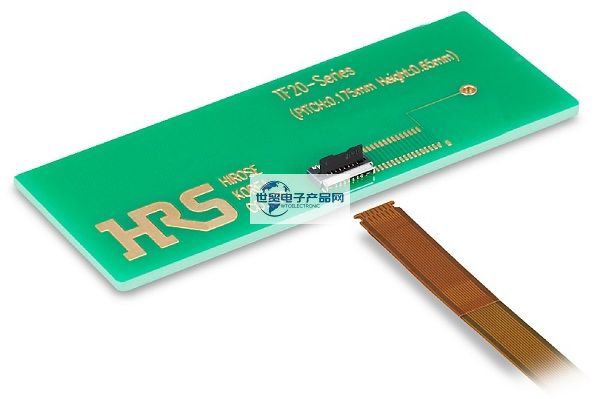

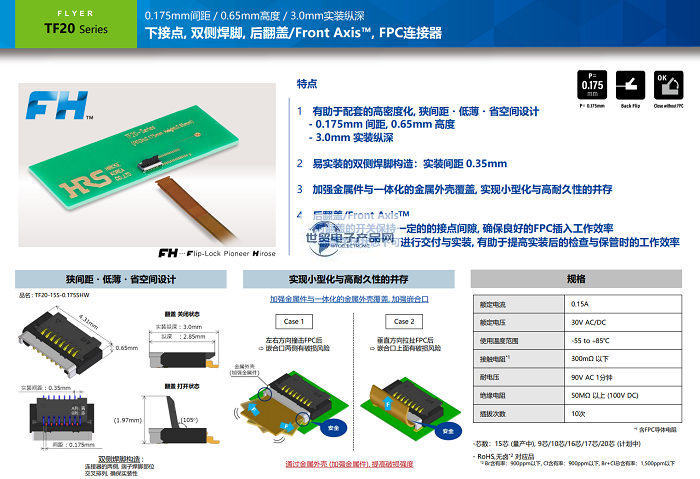

HRS|Hirose|Hirose TF20 Series 0.175mm Pitch / 0.65mm Height / Lower Contact FPC Connector is a: Lower Contact, Dual Side Solder Pins, Rear Flip-Flop / Front Axis™ , FPC Connector (0.175mm Pitch / 0.65mm Height / 3.0mm Depth of Installation); its main features are:1 Contribute to the high density of the mating , Narrow pitch, low profile, space saving design

- 0.175mm pitch, 0.65mm height - 3.0mm mounting depth;2 Easy-to-mount dual-side soldering feet: 0.35mm mounting pitch;3 Reinforced metal parts and integrated metal housing cover, realizing miniaturization and high durability;4 Rear Flip-Flap/Front Axis™ - Maintains a certain contact gap for flip-flap switching to ensure good FPC insertion and working efficiency;- Can be delivered and mounted with the flip-flap closed, which helps to improve the working efficiency during inspection and storage after mounting. Work efficiency;- Delivery and assembly can be performed with the flap closed, which helps to improve the work efficiency during inspection and storage after assembly.


1, HRS | Hirose | Japan Hirose TF20 series 0.175mm pitch / 0.65mm height / lower contact FPC connector main product specification details:


Connector TypePIN数
sockets15
Mounting distanceNumber of other PINs
0.35 mmOpen Pitch
Connector length (pitch direction)0.175   mm
4.31 mm(columns
Connector height2
0.65 mmTransmission Specifications
Connector width (longitudinal)transmission speed
3.0 mm(Max.) Operating Temperature Range
Contact position85   ℃
lower contact (elec.)(Min.) Operating Temperature Range
ZIF/Non-O ZIF/LIF-55   ℃
ZIF(nominal voltage
Recommended FFC/FPCAC   30.0 V
FPC(nominal voltage
FPC/FFC insertion directionDC   30.0 V
level (of achievement etc)rated current
movable type orientation0.15   A

------------------------------------------------------------------------------------------------

2, Japan HRS | Hirose | Hirose TF20 series 0.175mm pitch / 0.65mm height / lower contact FPC connector main material number / type:

TF20-15S-0.175SHW(800)

------------------------------------------------------------------------------------------------
