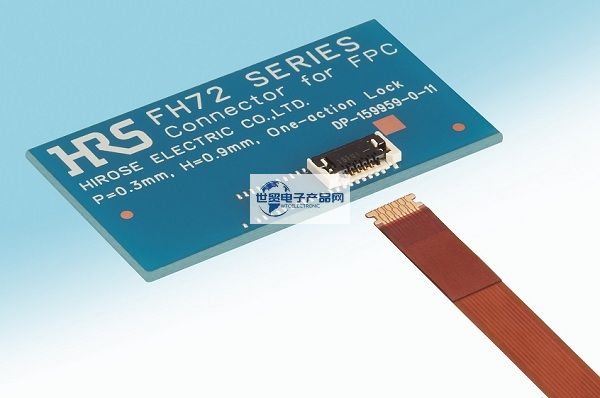

HRS|Hirose|Japan Hirose FH72 series 0.3mm pitch/0.9mm height/self-locking FPC connector is a: 0.3mm pitch, 0.9mm height, top-touch single-action locking, high retention FPC connector. Its main features are:1. Space-saving design-0.3mm pitch, 3.5mm depth, 0.9mm height space-saving design.2. Automatic single-action locking designAfter installation, just insert the FPC to realize the single-action locking, which helps to improve operability. (The lock is released by operating the locking lever during disassembly.) -No need to operate the actuator when FPC is mated. -Can be inserted with one hand. -Helps shorten assembly time. -Operation does not damage the locking lever. -Eliminates malfunctions due to FPC movement during locking.3. High FPC retention force-The slots on both sides of the FPC are held in place by the locking lever, which produces a high FPC retention force in spite of its small size.4. Easy insertion of the FPC-Wide guide rails for easy insertion of the FPC.5. Compatible with FPCs up to 0.2mm thick-3mm pitch connectors compatible with FPCs up to a standard thickness of 0.2mm (proper sheet metal stiffness prevents FPC deformation and problems during insertion and assembly).6. Detect mismatch between FPC and original structure-Mismatch can be detected by checking FPC insertion status and FPC pattern.


1, HRS | Hirose | Japan Hirose FH72 series 0.3mm pitch / 0.9mm height / self-locking FPC connector main product specification details:


Connector TypePIN数
sockets11, 15, 21, 31
Mounting distanceNumber of other PINs
0.6 mmOpen Pitch
Connector length (pitch direction)0.3 mm
6.7,   7.9, 9.7, 12.7 mm(columns
Connector height2
0.9 mmTransmission Specifications
Connector width (longitudinal)transmission speed
3.5 mm(Max.) Operating Temperature Range
Contact position85 ℃
upper contact(Min.) Operating Temperature Range
ZIF/Non-O   ZIF/LIF-55 ℃
Recommended FFC/FPC(nominal voltage
FPCAC 30.0 V
FPC/FFC insertion direction(nominal voltage
level (of achievement etc)DC 30.0 V
movable type orientationrated current

0.3 A

------------------------------------------------------------------------------------------------

2, Japan HRS | Hirose | Hirose FH72 series 0.3mm pitch / 0.9mm height / self-locking FPC connector main material number / type:

FH72-15S-0.3SHW(99)FH72-21S-0.3SHW(99)FH72-21S-0.3SHWFH72-11S-0.3SHW(99)FH72-11S-0.3SHW
FH72-15S-0.3SHWFH72-31S-0.3SHW(99)FH72-31S-0.3SHW

------------------------------------------------------------------------------------------------
