FPC Connectors- Provide HRS|Hirose|Hirose FH82 Series 0.25mm Pitch/0.65mm Height/Self-locking FPC Connectors

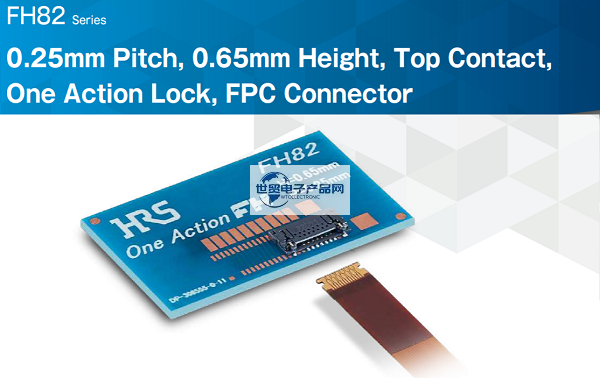

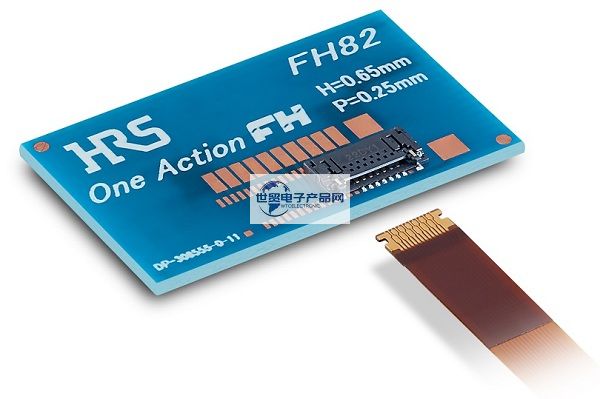

HRS|Hirose|Japan Hirose FH82 Series 0.25mm Pitch/0.65mm Height/Self-Locking FPC Connector is a: 0.25mm Pitch, 0.65mm Height, Top Contact, Single Action Locking, FPC Connector. Its main features are:1. Ultra-low height, space-saving design 0.65mm height and 0.25mm pitch space-saving design.2. Single-action auto-locking design No need to touch the actuator when inserting to prevent damage to the actuator. It also prevents incomplete mating due to FPC misalignment.3. High FPC retention forceLocking lever retains slots on both sides of the FPC and maintains a high FPC retention force even with small pin counts.4. Original FPC mismatch detection designMismatch can be detected by mating detection using the FPC pattern to confirm the insertion status.5. Environmental compatibilityNo chlorine or bromine is used in the halogen-free connectors that exceeds the standard values. of chlorine or bromine.

1, HRS | Hirose | Japan Hirose FH82 series 0.25mm pitch / 0.65mm height / self-locking FPC connector main product specification details:

Connector Type	PIN数
sockets	14
Mounting distance	Number of other PINs
0.5 mm	Open Pitch
Connector length (pitch direction)	0.25 mm
7.2 mm	(columns
Connector height	2
0.65 mm	Transmission Specifications
Connector width (longitudinal)	transmission speed
3.7 mm	(Max.) Operating Temperature Range
Contact position	85 ℃
upper contact	(Min.) Operating Temperature Range
ZIF/Non-O   ZIF/LIF	-55 ℃
Recommended FFC/FPC	(nominal voltage
FPC	AC 30.0 V
FPC/FFC insertion direction	(nominal voltage
level (of achievement etc)	DC 30.0 V
movable type orientation	rated current
	0.2 A

------------------------------------------------------------------------------------------------

2, Japan HRS | Hirose | Hirose FH82 series 0.25mm pitch / 0.65mm height / self-locking FPC connector main material number / type:

FH82-14S-0.25SHW

------------------------------------------------------------------------------------------------

3, Japan HRS connectors - HRS | Hirose | Hirose FH82 series 0.25mm pitch / 0.65mm height / self-locking FPC connector This product seller:

Agent sales [Japan HRS connectors - HRS | Hirose | Japan Hirose FH82 series 0.25mm pitch / 0.65mm height / self-locking FPC connectors] and the contents of the second item in the table list of all (material number / model) connector products; if you want to buy or understand what we can provide connector | harness | cable product solutions, welcome to contact us through the following way. If you want to purchase or know what connectors, harnesses or cables we can provide, please feel free to contact us through the following ways.
