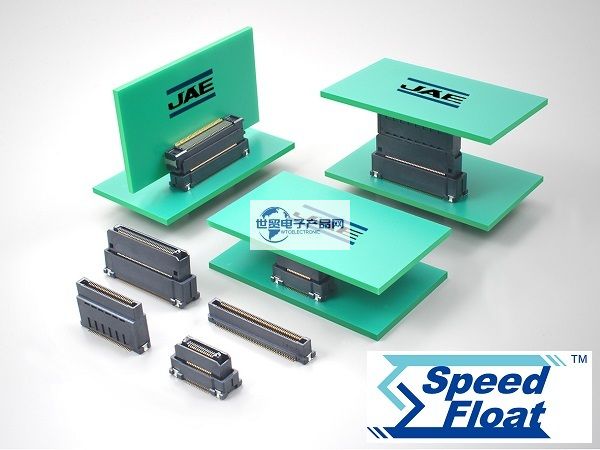

JAE|JAE Connectors|Japan Aerospace Electronics MA01 Series Automotive Grade High Speed Transmission Floating Board-to-Board Connector is a: next generation floating board-to-board connector. It utilizes a highly reliable two-point contact structure to achieve high speed transmission in excess of 8Gbps. The connector has an operating temperature range of -40 °C to 125 °C, making it suitable for the harsh temperature environments unique to the automotive industry. Key features include: Float tolerance: 0.5 mm in both X and Y directions, Stack height tolerance between boards: 0.5 mm in the Z-axis direction, Two-point contact structure ensures high contact reliability, Low insertion and removal forces through roll surface contact structure, Operating temperature range: -40 °C to +125 °C, 8 Gbps+ high speed transmission (10GBASE-KR and PCIe Gen3 equivalent), and Excellent docking process with large rails, supports automatic assembly and docking (mating rail length: 1.0 mm), supports automatic mounting, allows multiple connectors on one board, keyed to prevent mismatch. Main applications are: in-vehicle equipment (ADAS-ECU, central gateway, etc.) The main applications are: in-vehicle equipment (ADAS-ECU, central gateway, etc.), FA equipment, semiconductor manufacturing equipment, office machines, communication equipment, measurement equipment, broadcasting equipment, and various other applications.


1, JAE | JAE Connectors | Japan Avionics MA01 Series Automotive Grade High Speed Transmission Floating Board-to-Board Connectors main product specification details:

Number   of Contacts30, 40, 60,   80, 90, 100, 120, 140 pos.
Contact Pitch0.635 mm pitch
Rated Current0.5 A
Rated VoltageAC 50 Vr.m.s.
Contact ResistanceInitial: 50 milliohm max.
After test: 100 milliohm max.
Dielectric Withstanding VoltageAC 250 Vr.m.s., conduction for 1 minute
Insulation Resistance100 megohm min.
Stacking Height8, 10, 14, 16, 18, 20, 22, 24, 30 mm
Floating Movable AmountX direction: +/-0.5 mm,
Y direction: +/-0.5 mm
Durability100 mating cycles
Operating Temperature Range-40 deg. C to +125 deg. C
(including conduction temperature rise)

------------------------------------------------------------------------------------------------

2、Japan JAE|JAE Connectors|Japan Avionics MA01 Series Automotive Grade High Speed Transmission Floating Board-to-Board Connectors Main Part Number / Model Number:

MA01F030VAABR500MA01R040VABBR600MA01R060HAYBR600MA01F090VACBR150MA01R100VANBR200
MA01F030VABBR300MA01R040VADBR500MA01F080VAABR500MA01R090VABBR600MA01R100HAYBR600
MA01F030VACBR150MA01R040VANBR200MA01F080VABBR300MA01R090VADBR500MA01F120VAABR500
MA01R030VABBR600MA01R040HAYBR600MA01F080VACBR150MA01R090VANBR200MA01F120VABBR300
MA01R030VADBR500MA01F060VAABR500MA01R080VABBR600MA01R090HAYBR600MA01F120VACBR150
MA01R030VANBR200MA01F060VABBR300MA01R080VADBR500MA01F100VAABR500MA01R120VABBR600
MA01R030HAYBR600MA01F060VACBR150MA01R080VANBR200MA01F100VABBR300MA01R120VADBR500
MA01F040VAABR500MA01R060VABBR600MA01R080HAYBR600MA01F100VACBR150MA01R120VANBR200
MA01F040VABBR300MA01R060VADBR500MA01F090VAABR500MA01R100VABBR600MA01R120HAYBR600
MA01F040VACBR150MA01R060VANBR200MA01F090VABBR300MA01R100VADBR500MA01F140VAABR500

------------------------------------------------------------------------------------------------

3, Japan JAE connectors--JAE|Japan Avionics MA01 Series Automotive Grade High Speed Transmission Floating Board to Board Connector This product seller:

Agency sales [Japan JAE connectors - JAE | Japan Avionics MA01 series of automotive-grade high-speed transmission floating board-to-board connectors] as well as the contents of the second item in the table list of all (No./Model) connector products; if you want to buy or understand what we can provide connectors | wiring harness | wire and cable product solutions, welcome to contact us through the following way.
