Board-to-Board Connectors-Supply JAE|Japanese Avionics AC02 Series 0.5mm Pitch Vertical Board-to-Board Connectors

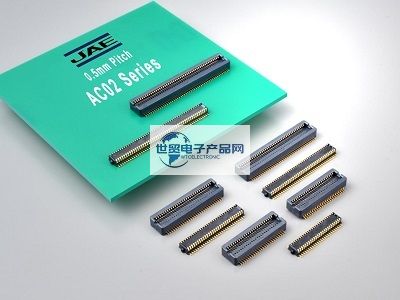

JAE|JAE Connectors|Japan Aerospace Electronics AC02 Series 0.5mm Pitch Vertical Board-to-Board Connectors are a: 0.5mm pitch vertical board-to-board connectors for information and communication equipment and a variety of other industrial equipment. The connector series is available in 2.5mm and 3.0mm stacking heights while utilizing a highly stable and reliable contact structure proven over decades of use. The main features are: .5 mm pitch, large pin count board-to-board connectors, stacking heights of 2.5 mm and 3.0 mm (3.0 mm stacking heights are available for 50 positions. and 100 positions. The main applications are: information and communication equipment, factory automation equipment and various other electrical equipment.

1, JAE | JAE Connectors | Japan Avionics AC02 series 0.5mm pitch vertical board-to-board connector main product specification details:

Number   of Contacts	50, 60, 80,   100 pos.
Pitch	0.5mm, Double row
Rated Current	AC, DC each 0.3 A/ contact
Contact Resistance	40 milliohm max.
Insulation Resistance	100 megohm min.
Dielectric Withstanding Voltage	AC 500 Vr.m.s. (per minute)
Stacking Heights	60 and 80 pos.: 2.5 mm
	50 and 100 pos.: 2.5 mm, 3.0 mm
Operating Temperature Range	-40 deg. C to +85 deg. C

------------------------------------------------------------------------------------------------

2、Japan JAE|JAE Connectors|Japan Avionics AC02 Series 0.5mm Pitch Vertical Board-to-Board Connectors Main Part Number / Model Number:

AC02S050WA1R500	AC02S050WA2R2800	AC02S080WA1R500	AC02S100WA1R500	AC02S100WA2R500
AC02S050WA1R3000	AC02S060WA1R500	AC02S080WA1R3000	AC02S100WA1R3000	AC02S100WA2R2800
AC02S050WA2R500	AC02S060WA1R3000

------------------------------------------------------------------------------------------------
