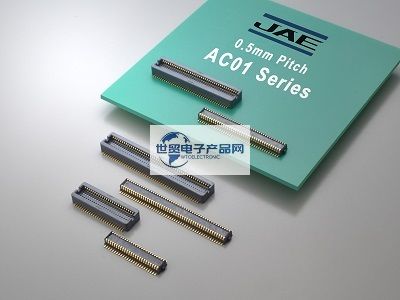

JAE|JAE Connectors|Japan Aerospace Electronics AC01 Series 0.5 mm Pitch Stacked Board-to-Board Connectors are a: 0.5 mm pitch horizontal board-to-board connectors for information and communication equipment as well as a variety of other industrial equipment. The connector series is available in 2.5 mm and 3.0 mm stacking heights and utilizes a highly stable and reliable contact construction proven over decades of use. The main features are:Contact pitch:0.5 mm; Stacking heights:2.5 mm and 3.0 mm (3.0 mm stacking heights are available for 50 positions. and 100 positions. Only),Highly stable and reliable contact structure, proven by decades of use. The embossed tape package facilitates SMT production. The main applications are: information and communication equipment, factory automation equipment, medical equipment (ultrasonic diagnostic equipment) and various other electrical equipment.


1, JAE | JAE Connectors | Japan Aviation Electronics AC01 Series 0.5 mm pitch stacked board-to-board connector main product specification details:

Number   of Contacts50, 60, 80,   100 pos.
Pitch0.5 mm, Double row
Rated CurrentAC, DC each 0.3A/contact
Contact Resistance40 milliohm max.
Insulation Resistance100 megohm min.
Dielectric Withstanding VoltageAC 500 Vr.m.s. (per minute)
Stacking Heights60 and 80 pos.: 2.5 mm
50 and 100 pos.: 2.5 mm, 3.0 mm
Operating Temperature Range-40 deg. C to +85 deg. C

------------------------------------------------------------------------------------------------

2、Japan JAE|JAE Connectors|Japan Avionics AC01 Series 0.5mm Pitch Stacked Board-to-Board Connectors Main Part Number / Model Number:

Product   NameFeaturesNumber of   Positions
AC01P050WA1R5000.5   mm pitch, Horizontal Board-to-Board connector, 50 pos., Plug50   pos.
AC01P050WA1R30000.5   mm pitch, Horizontal Board-to-Board connector, 50 pos., Plug50   pos.
AC01P060WA1R30000.5   mm pitch, Horizontal Board-to-Board connector, 60 pos., Plug60   pos.
AC01P060WA1R5000.5   mm pitch, Horizontal Board-to-Board connector, 60 pos., Plug60   pos.
AC01P080WA1R30000.5   mm pitch, Horizontal Board-to-Board connector, 80 pos., Plug80   pos.
AC01P080WA1R5000.5   mm pitch, Horizontal Board-to-Board connector, 80 pos., Plug80   pos.
AC01P100WA1R30000.5   mm pitch, Horizontal Board-to-Board connector, 100 pos., Plug100   pos.
AC01P100WA1R5000.5   mm pitch, Horizontal Board-to-Board connector, 100 pos., Plug100   pos.
AC01S050WA1R5000.5   mm pitch, Horizontal Board-to-Board connector, 50 pos., Socket50   pos.
AC01S050WA1R30000.5   mm pitch, Horizontal Board-to-Board connector, 50 pos., Socket50   pos.
AC01S050WA2R5000.5   mm pitch, Horizontal Board-to-Board connector, 50 pos., Socket50   pos.
AC01S050WA2R28000.5   mm pitch, Horizontal Board-to-Board connector, 50 pos., Socket50   pos.
AC01S060WA1R5000.5   mm pitch, Horizontal Board-to-Board connector, 60 pos., Socket60   pos.
AC01S060WA1R30000.5   mm pitch, Horizontal Board-to-Board connector, 60 pos., Socket60   pos.
AC01S080WA1R5000.5   mm pitch, Horizontal Board-to-Board connector, 80 pos., Socket80   pos.
AC01S080WA1R30000.5   mm pitch, Horizontal Board-to-Board connector, 80 pos., Socket80   pos.
AC01S100WA1R5000.5   mm pitch, Horizontal Board-to-Board connector, 100 pos., Socket100   pos.
AC01S100WA1R30000.5   mm pitch, Horizontal Board-to-Board connector, 100 pos., Socket100   pos.
AC01S100WA2R5000.5   mm pitch, Horizontal Board-to-Board connector, 100 pos., Socket100   pos.
AC01S100WA2R28000.5   mm pitch, Horizontal Board-to-Board connector, 100 pos., Socket100   pos.

------------------------------------------------------------------------------------------------

3, Japan JAE connectors--JAE|Japan Avionics AC01 Series 0.5 mm pitch stacked board-to-board connectors This product seller:

Agency sales [Japan JAE connectors - JAE | Japan Avionics AC01 series 0.5 mm pitch stacked board-to-board connectors] and the contents of the second item in the table list of all (number / type) connector products; if you want to buy or understand what we can provide connector | harness | cable product solutions, welcome to contact us through the following way.
