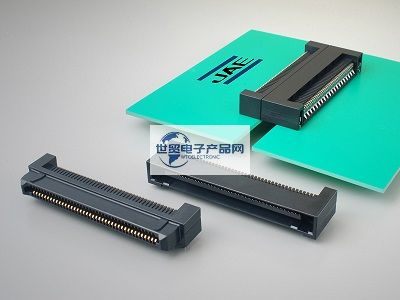

JAE|JAE Connectors|Japan Aerospace Electronics TX24A/TX25A Series 1.27mm Pitch High Speed Board-to-Board Connector is a: 1.27mm pitch high speed transmission board-to-board connector. Ideal for high-speed transmission in various applications such as office automation and measurement. It has the same dimensions, is match compatible with the existing TX24/TX25 series, and supports increased internal transmission speeds. instruments and video equipment. Its main features are:Size and match compatibility with the existing TX24/TX25 series. Ruggedized with matching rails for rack and panel mounting. Click sense ensures full insertion. High reliability with long contact stroke. Improved electrical characteristics of TX24/TX25 series to support higher speed transmission. Improved electrical characteristics of the upper contact. High-speed signals are arranged on the upper level. Main applications are: office automation, measuring instruments and video equipment.
1, JAE | JAE Connectors | Japan Avionics TX24A / TX25A series 1.27 mm pitch high-speed board-to-board connector main product specification details:
| Number of Contacts | 80 pos. |
| Pitch | 1.27 mm |
| Rated Current | 1.0 A/ terminal |
| Contact Resistance | 40 milliohm max. (initial) |
| Insulation Resistance | 100 megohm min. (initial) |
| Dielectric Withstanding Voltage | AC 500 Vr.m.s./1minute (initial) |
| Life Time | 500 times |
| Operating Temperature Range | -40 deg. C to +85 deg. C |
------------------------------------------------------------------------------------------------
2、Japan JAE|JAE Connectors|Japan Avionics TX24A/TX25A Series 1.27mm Pitch High Speed Board-to-Board Connectors Main Part Number/Model Number:
| Product Name | Features | Number of Positions |
| TX24A-80R-LT-H1E | 1.27mm pitch high-speed transmission board-to-board connector, 80 pos., Receptacle | 80 pos. |
| TX25A-80P-LT-H1E | 1.27mm pitch high-speed transmission board-to-board connector, 80 pos., Plug | 80 pos. |
------------------------------------------------------------------------------------------------
3, Japan JAE connectors--JAE|Japan Avionics TX24A/TX25A series 1.27 mm pitch high-speed board-to-board connectors This product seller:
Agency sales [Japan JAE connectors - JAE | Japan Avionics TX24A / TX25A series 1.27 mm pitch high-speed board-to-board connectors] and the contents of the second item in the table list of all (material number / model) connector products; if you want to buy or understand what we can provide connector | harness | cable product solutions, welcome to contact us through the following way.
