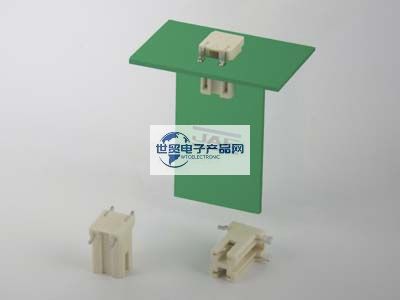

JAE|JAE Connectors|Japan Aerospace Electronics ES6 Series LED Lighting Card Edge Connector is a: new card edge connector for LED bulbs and LED lighting designed to simplify the connection and assembly of LED mounting boards and power supply boards. The use of LED lighting is rapidly increasing due to its efficiency and environmental benefits to consumers. As LED lighting becomes more popular, LED manufacturers seek to increase capacity and production while reducing costs, so efficient production practices and quality consistency are essential for mass manufacturing.The ES6 Series card-edge connection feature makes the assembly of LED boards and power supply boards easy for LED manufacturers in mass production. Its compact design saves board mounting space and increases design flexibility. Its main features are: It facilitates simple and automatic assembly of LED mounting boards and power supply boards with card-edge connections. Adopts tuning fork structure terminals for high contact reliability in long term high temperature environments. Compatible with automatic mounting. Has a wide absorption space and conforms to standard nozzles. Saves mounting space on circuit boards, ideal for compact bulbs and lamps. cULus is recognized as a separate connector. cULus products: File No. E67741, RoHS compliant product. Main applications are: LED bulbs, downlights, spotlights, LED lighting and compact electrical equipment.
1, JAE | JAE Connectors | Japan Aviation Electronics ES6 Series LED Lighting Card Edge Connector main product specification details:
| Number of Contacts | 2 pos. |
| Rated Current | AC/DC 1 A |
| Rated Voltage | AC/DC 250 V |
| Contact Resistance | 30 milliohm max. |
| Applicable Board Thickness (Card Side Board Thickness) | 1 mm +/-0.1 |
| Durability Mating Cycles | 20 times |
| Operating Temperature Range | -40 deg. C to +105 deg. C |
------------------------------------------------------------------------------------------------
2、Japan JAE|JAE Connectors|Japan Avionics ES6 Series LED Lighting Card Edge Connector Main Part Number / Model Number:
| Product Name | Features | Connector Type |
| ES6B002WF1R1000 | LED Lighting Card Edge Connector, cULus certified product, 2 pos., Card edge type | Card edge type |
------------------------------------------------------------------------------------------------
3, Japan JAE connectors - JAE | Japan Avionics WP10 series 0.4 mm pitch board-to-board (FPC) connectors This product seller:
Agency sales [Japan JAE connectors - JAE | Japan Avionics ES6 series LED lighting card edge connectors] and the contents of the second item in the table list of all (material number / model) connector products; if you want to buy or understand what we can provide connectors | wiring harness | cable product solutions, welcome to contact us through the following way.
