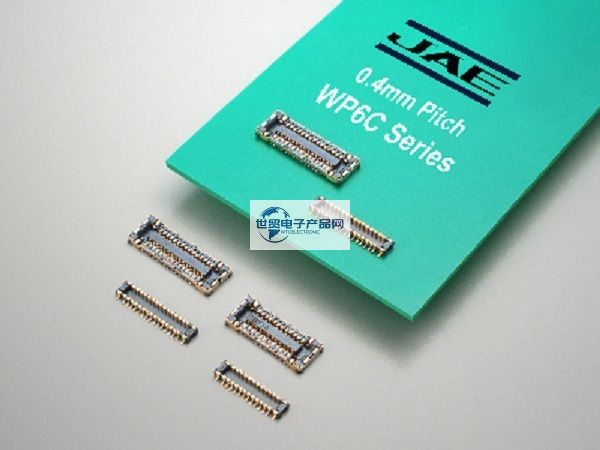

JAE|JAE Connectors|Japan Aerospace Electronics WP6C Series 0.4 mm pitch board-to-board (FPC) connectors are a: thin stacking type board-to-board (FPC) connectors with 0.4 mm pitch, ideal for high-density mounting in ultra-thin infocommunication devices such as cellular phones, smartphones, LCDs, and laptops.The WP6C Series has a shielded construction that reduces noise when mating with a safety ground connection by having dedicated terminals at the four corners and a dedicated terminal on the back side of the socket equipped with a shield that reduces noise when mating with a safety ground connection. In addition, the WP6C series has the same mounting pattern as the existing WP6 series. Both shielded and unshielded types are available. Its main features are:Pitch 0.4 mm, 2 rows, stacking height 0.8 mm. The contact structure ensures high wear resistance and high contact reliability. Safe compression prevents insulator breakage and detachment from the FPC. Two-point contact design resists torsional stress. Reinforced ground connection for mating, shielded structure with anti-noise measures. Lead-free. (Nickel barrier layer on contacts prevents solder core suction.) Main applications are: ultra-thin information communication devices such as cellular phones, smart phones, LCD monitors and laptops.
1, JAE | JAE Connectors | Japan Avionics WP6C series 0.4 mm pitch board-to-board (FPC) connector main product specification details:
| Number of Positions | 24, 30 pos. |
| Contact Pitch | 0.4 mm, 2 rows |
| Rated Current | AC, DC 0.3 A/ terminal |
| Rated Voltage | AC, DC 50 V |
| Contact Resistance | 70 milliohm max. (initial) |
| Insulation Resistance | 100 megohm min. |
| Dielectric Withstanding Voltage | AC 250 Vr.m.s. (1 minute) |
| Total Insertion Force | 1.5 N x n max. (n: No. of pos.) |
| Total Extraction Force | 0.15 N x n min. (n: No. of pos.) |
| Durability Mating Cycles | 30 mating cycles |
| Operating Temperature Range | -40 deg. C to +85 deg. C |
------------------------------------------------------------------------------------------------
2、Japan JAE|JAE Connectors|Japan Avionics WP6C Series 0.4mm Pitch Board-to-Board (FPC) Connectors Main Part Number / Model Number:
| Product Name | Features | Number of Positions |
| WP6C-P024VA1-R6000 | 0.4mm pitch, Stacking type board-to-board (FPC) connector, 24 pos., Plug | 24 pos. |
| WP6C-P030VA1-R6000 | 0.4mm pitch, Stacking type board-to-board (FPC) connector, 30 pos., Plug | 30 pos. |
| WP6C-S024VA1-R6000 | 0.4mm pitch, Stacking type board-to-board (FPC) connector, 24 pos., Receptacle | 24 pos. |
| WP6C-S030VA1-R6000 | 0.4mm pitch, Stacking type board-to-board (FPC) connector, 30 pos., Receptacle | 30 pos. |
------------------------------------------------------------------------------------------------
3, Japan JAE connectors - JAE | Japan Avionics WP6C series 0.4 mm pitch board-to-board (FPC) connectors This product seller:
Agency sales [Japan JAE connectors - JAE | Japan Avionics WP6C series 0.4 mm pitch board-to-board (FPC) connectors] and the contents of the second item in the table list of all (No./Model) connector products; if you want to buy or understand what we can provide connector | harness | cable product solutions, welcome to contact us through the following way.
