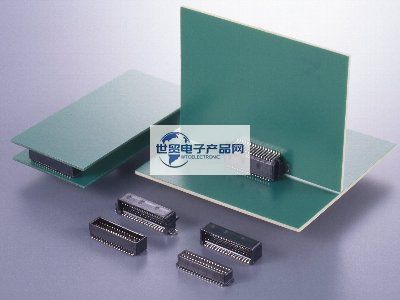

JAE|JAE Connectors|Japan Aerospace Electronics IL-WX Series 0.8 mm pitch board-to-board connectors are a: designed for board-to-board applications. Extremely small pitch design with double row contact arrangement centered at 0.8 mm. The connector has a self-mounting SMT contact configuration. It is intended for use in portable devices where size reduction is important. Its main features are: 0.8 mm pitch, SMT, parallel/vertical, thin, 4.5 mm connection pitch between parallel boards, combination of sockets (straight) and plugs (right/rectangular) for vertical and parallel connections. Tabs on both sides of the bottom of the connector ensure correct positioning on the board. The right-angle pin header is designed with metal hold-downs on both sides to prevent floating during automatic packaging and to improve retention on the board. Suitable configuration for automatic packaging. Sufficient adsorption surface. Terminal length for easy image recognition.

1, JAE | JAE Connectors | Japan Aviation Electronics IL-WX series 0.8 mm pitch board-to-board connector main product specification details:

Number   of Contacts	6, 8, 10, 12,   14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 34, 36
Rated Current	0.5 A
Dielectric Withstanding Voltage	500 VACr.m.s. (1 minute)
Insulation Resistance	100 megohm min.
Contact Resistance	20 milliohm max.
Operating Temperature Range	-40 deg. C to +85 deg. C

------------------------------------------------------------------------------------------------

2、Japan JAE|JAE Connectors|Japan Avionics IL-WX Series 0.8mm Pitch Board-to-Board Connectors Main Part Number/Model Number:

IL-WX-10PB-HF-A1-B-E1000	IL-WX-10S-VF-B-E1000E	IL-WX-12SB-VF-B-E1000E	IL-WX-14P-HF-HD-S-B-E1000E	IL-WX-16PB-VF-B-E1000E
IL-WX-10PB-HF-B-E1000E	IL-WX-12PB-HF-A1-B-E1000	IL-WX-12S-VF-B-E1000E	IL-WX-14P-VF-B-E1000E	IL-WX-16P-HF-B-E1000E
IL-WX-10PB-HF-HD-S-B-E1000E	IL-WX-12PB-HF-B-E1000E	IL-WX-14PB-HF-A1-B-E1000	IL-WX-14SB-VF-A1-B-E1000E	IL-WX-16P-VF-B-E1000E
IL-WX-10PB-VF-B-E1000E	IL-WX-12PB-HF-HD-S-A1-B-E1000E	IL-WX-14PB-HF-B-E1000E	IL-WX-14SB-VF-B-E1000E	IL-WX-16SB-VF-A1-B-E1000E
IL-WX-10P-HF-A1-B-E1000	IL-WX-12PB-HF-HD-S-B-E1000E	IL-WX-14PB-HF-HD-S-A1-B-E1000E	IL-WX-14S-VF-A1-B-E1000E	IL-WX-16SB-VF-B-E1000E
IL-WX-10P-HF-B-E1000E	IL-WX-12PB-VF-B-E1000E	IL-WX-14PB-HF-HD-S-B-E1000E	IL-WX-14S-VF-B-E1000E	IL-WX-16S-VF-B-E1000E
IL-WX-10P-HF-HD-S-B-E1000E	IL-WX-12P-HF-B-E1000E	IL-WX-14PB-VF-A1-B-E1000	IL-WX-16PB-HF-A1-B-E1000	IL-WX-18PB-HF-B-E1000E
IL-WX-10P-VF-B-E1000E	IL-WX-12P-HF-HD-S-B-E1000E	IL-WX-14PB-VF-B-E1000E	IL-WX-16PB-HF-B-E1000E	IL-WX-18PB-HF-HD-S-A1-B-E1000E
IL-WX-10SB-VF-A1-B-E1000E	IL-WX-12P-VF-B-E1000E	IL-WX-14P-HF-A1-B-E1000	IL-WX-16PB-HF-HD-S-B-E1000E	IL-WX-18PB-HF-HD-S-B-E1000E
IL-WX-10SB-VF-B-E1000E	IL-WX-12SB-VF-A1-B-E1000E	IL-WX-14P-HF-B-E1000E	IL-WX-16PB-VF-A1-B-E1000	IL-WX-18PB-VF-B-E1000E

3, Japan JAE connectors--JAE|Japan Avionics IL-WX series 0.8 mm pitch board-to-board connectors This product seller:

Agency sales [Japan JAE connectors - JAE | Japan Avionics IL-WX series 0.8 mm pitch board-to-board connectors] and the contents of the second item in the table list of all (number / type) connector products; if you want to buy or understand what we can provide connectors | wiring harness | wire and cable product solutions, welcome to contact us through the following way.
