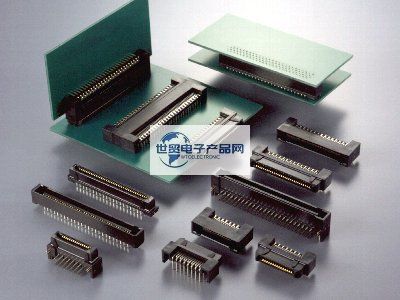

JAE|JAE Connectors|Japan Aerospace Electronics TX24/TX25 Series 1.27mm Pitch High Speed Board-to-Board Connectors are one of a kind: parallel boards with 12 to 24mm (2mm increments) connection pitch between them. Ruggedized and equipped with matching rails suitable for mounting on racks or panels. Ribbon contacts ensure reliable electrical continuity and resist coup torque on the 1.27 mm pitch, parallel/vertical/horizontal board-to-board connectors. Its main features are:1.27 mm pitch, parallel/vertical/horizontal, 12 to 24 mm (in 2 mm increments) connection spacing between parallel boards. Robust, with matching rails suitable for mounting on racks or panels. Ribbon contacts ensure reliable electrical continuity and resistance to coup torsion.
1, JAE | JAE Connectors | Japan Avionics TX24/TX25 series 1.27 mm pitch high-speed board-to-board connector main product specification details:
| Number of Contacts | 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 32, 34, 36 |
| Rated Current | 0.5 A |
| Dielectric Withstanding Voltage | 500 VACr.m.s. (1 minute) |
| Insulation Resistance | 100 megohm min. |
| Contact Resistance | 20 milliohm max. |
| Operating Temperature Range | -40 deg. C to +85 deg. C |
------------------------------------------------------------------------------------------------
2、Japan JAE|JAE Connectors|Japan Avionics TX24/TX25 Series 1.27mm Pitch High Speed Board-to-Board Connectors Main Part Number/Model Number:
| IL-WX-10PB-HF-A1-B-E1000 | IL-WX-12P-HF-HD-S-B-E1000E | IL-WX-14S-VF-A1-B-E1000E |
| IL-WX-10PB-HF-B-E1000E | IL-WX-12P-VF-B-E1000E | IL-WX-14S-VF-B-E1000E |
| IL-WX-10PB-HF-HD-S-B-E1000E | IL-WX-12SB-VF-A1-B-E1000E | IL-WX-16PB-HF-A1-B-E1000 |
| IL-WX-10PB-VF-B-E1000E | IL-WX-12SB-VF-B-E1000E | IL-WX-16PB-HF-B-E1000E |
| IL-WX-10P-HF-A1-B-E1000 | IL-WX-12S-VF-B-E1000E | IL-WX-16PB-HF-HD-S-B-E1000E |
| IL-WX-10P-HF-B-E1000E | IL-WX-14PB-HF-A1-B-E1000 | IL-WX-16PB-VF-A1-B-E1000 |
| IL-WX-10P-HF-HD-S-B-E1000E | IL-WX-14PB-HF-B-E1000E | IL-WX-16PB-VF-B-E1000E |
| IL-WX-10P-VF-B-E1000E | IL-WX-14PB-HF-HD-S-A1-B-E1000E | IL-WX-16P-HF-B-E1000E |
| IL-WX-10SB-VF-A1-B-E1000E | IL-WX-14PB-HF-HD-S-B-E1000E | IL-WX-16P-VF-B-E1000E |
| IL-WX-10SB-VF-B-E1000E | IL-WX-14PB-VF-A1-B-E1000 | IL-WX-16SB-VF-A1-B-E1000E |
| IL-WX-10S-VF-B-E1000E | IL-WX-14PB-VF-B-E1000E | IL-WX-16SB-VF-B-E1000E |
| IL-WX-12PB-HF-A1-B-E1000 | IL-WX-14P-HF-A1-B-E1000 | IL-WX-16S-VF-B-E1000E |
| IL-WX-12PB-HF-B-E1000E | IL-WX-14P-HF-B-E1000E | IL-WX-18PB-HF-B-E1000E |
| IL-WX-12PB-HF-HD-S-A1-B-E1000E | IL-WX-14P-HF-HD-S-B-E1000E | IL-WX-18PB-HF-HD-S-A1-B-E1000E |
| IL-WX-12PB-HF-HD-S-B-E1000E | IL-WX-14P-VF-B-E1000E | IL-WX-18PB-HF-HD-S-B-E1000E |
| IL-WX-12PB-VF-B-E1000E | IL-WX-14SB-VF-A1-B-E1000E | IL-WX-18PB-VF-B-E1000E |
| IL-WX-12P-HF-B-E1000E | IL-WX-14SB-VF-B-E1000E |
------------------------------------------------------------------------------------------------
3, Japan JAE connectors--JAE|Japan Avionics TX24/TX25 series 1.27 mm pitch high-speed board-to-board connectors This product seller:
Agency sales [Japan JAE connectors - JAE | Japan Avionics TX24/TX25 series 1.27 mm pitch high-speed board-to-board connectors] and the contents of the second item in the table list of all (material number / model) connector products; if you want to buy or understand what we can provide connectors | wiring harness | wire and cable product solutions, welcome to contact us through the following way.
