Push-on Connectors - JST|Japan Push-on Terminal JFA-J300 Series 3.81mm Pitch Push-on Connectors

JST|JST Connectors|Japan Crimp Terminal JFA-J300 Series 3.81mm Pitch Crimp Type Connector is a: 3.81mm Pitch/Printed Circuit Board Connector/Crimp and Plug Type; the product is a connector for signal and power circuits for FA, Heavy Electricity, and other general industrial equipment. A wide variety of molded shell products are available. By generalizing the corresponding terminals, the crimping tool has been homogenized. The main features are: double spring structure, molded shell locking method, and a solid snap-in sensation.

The general specifications for the electrical performance of this series of products are:
Rated voltage: J310/J340 series (3.81mm pitch) 250V AC/DC	Withstanding Voltage: J310/J340 series (3.81mm pitch) AC 1,500V/1min.
J320/J350 Series (5.08mm pitch) 600V AC/DC	J320/J350 Series (5.08mm pitch) AC 2,200V/1minute
J330 Series (5.4mm pitch) 600V AC/DC	J330 Series (5.4mm pitch) AC 2,200V/1minute
Operating temperature range: -55°C to +105°C (including temperature rise during energization)	Applicable wire range : AWG#28 to #14
Contact resistance: Initially / 5mΩ or less, after environmental test / 10mΩ or less	Applicable PCB thickness: 1.6 to 2.4mm
Insulation resistance: 1,000MΩ or more

1, JST | JST Connectors | Japan Crimp Terminal JFA-J300 Series 3.81mm Pitch Crimp Connector main product specification details:

Type 1.	Detachable
Type 2.	crimp type
Spacing:	3.81

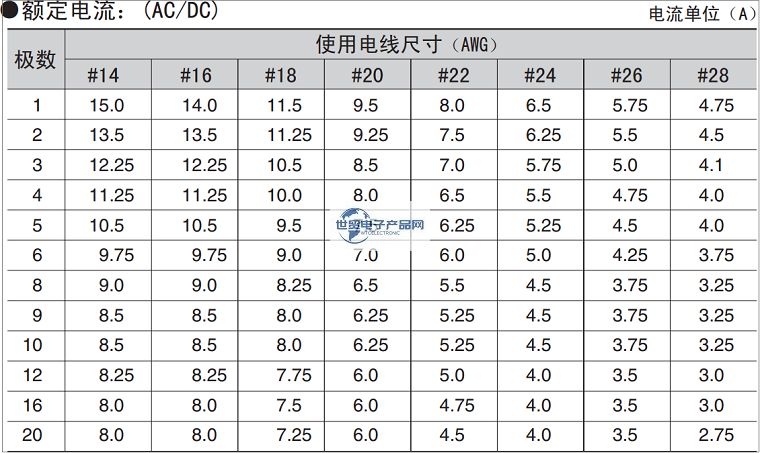

Current:	15A (Single circuit/AWG#14)
Features:	With safety locking device
	High Current Capacity
	High voltage resistance
Category Name:	Crimp Connectors (Wire-to-Board Type)
Height:	3.81
Voltage:	250V
Thickness:
Description .	Signal circuit or power circuit connectors for general industrial equipment such as factory automation and heavy duty motors.

------------------------------------------------------------------------------------------------

2、Japan JST|JST Connector|Japan Crimp Terminal JFA-J300 Series 3.81mm Pitch Crimp Type Connector Main Part Number / Model Number:

B10B-F31DK-GGR	LF3F-41GF-P2.0	B06B-F31MK-GGXXR	B20B-F31DK-GGR	B16B-F31DK-GGR
F31FDS-10V-K	LF3F-41GI-P2.0	S03B-F31SK-GGYR	B04B-F31SK-GGXR	EJ-JFAJ3R
F31FSS-06V-KX	LF3F-41T-P2.0	S06B-F31MK-GGYYR	S05B-F31SK-GGYR	J3KP-VS
B04B-F31SK-GGYR	F31FDS-08V-K	S04B-F31SK-GGXR	B06B-F31SK-GGYR	CT-JFAJ3A
F31FSS-05V-KX	SF3F-71GF-P2.0	F31FSS-03V-KY	S16B-F31DK-GGR	J3KM-VR-X
B10B-F31SK-GGYR	F31FMS-06V-KXY	B05B-F31SK-GGXR	B05B-F31SK-GGYR	J3KM-VE-Z
F31FSS-05V-KY	SF3F-002GF-P2.0	B12B-F31DK-GGR	S10B-F31DK-GGR	F38FDS-40V-KE
F31FSS-06V-KY	S06B-F31MK-GGXYR	F31FSS-08V-KY	S10B-F31SK-GGYR	J3KF-VY-Y
S08B-F31SK-GGYR	SF3F-002GI-P2.0	S10B-F31SK-GGXR	S08B-F31SK-GGXR	J3KM-VY-Y
F31FSS-03V-KX	SF3F-002T-P2.0	S03B-F31SK-GGXR	S04B-F31SK-GGYR	S40B-F38DK-GGER
BF3F-002GF-P2.0	SF3F-01GI-P2.0	B08B-F31SK-GGYR	S06B-F31SK-GGYR	J3KF-VS-W
BF3F-002GI-P2.0	SF3F-01T-P2.0	S06B-F31MK-GGXXR	S06B-F31SK-GGXR	J3KF-VR-X
BF3F-002T-P2.0	SF3F-41GI-P2.0	F31FDS-06V-K	S06B-F31DK-GGR	J3KF-VE-Z
BF3F-01GF-P2.0	SF3F-41T-P2.0	F31FDS-12V-K	B06B-F31MK-GGYYR	S20B-F38DK-GGER
BF3F-01GI-P2.0	SF3F-71GI-P2.0	S12B-F31DK-GGR	SF3F-01GF-P2.0	B40B-F38DK-GGER
BF3F-01T-P2.0	SF3F-71T-P2.0	F31FDS-16V-K	F31FMS-06V-KYY	F38FDS-20V-KE
BF3F-71GF-P2.0	B06B-F31SK-GGXR	F31FSS-04V-KY	S20B-F31DK-GGR	J3KM-VS-W
BF3F-71GI-P2.0	B06B-F31MK-GGXYR	F31FSS-04V-KX	B08B-F31DK-GGR	F34FFC-12V-K
BF3F-71T-P2.0	S05B-F31SK-GGXR	B03B-F31SK-GGXR	F31FSS-08V-KX	SC12B-F34FK-GGR
EJ-JFAJ3	SF3F-41GF-P2.0	S08B-F31DK-GGR	B10B-F31SK-GGXR	SC20B-F34FK-GGR
B03B-F31SK-GGYR	B08B-F31SK-GGXR	F31FSS-10V-KY	B06B-F31DK-GGR	F34FFC-20V-K
F31FMS-06V-KXX	F31FDS-20V-K	F31FSS-10V-KX

------------------------------------------------------------------------------------------------

3、Japan JST Connector--JST|Japan Crimp Terminal JFA-J300 Series 3.81mm Pitch Crimp Connector This product seller:

Agency sales [Japan JST connectors - JST | Japan Crimp Terminal JFA-J300 series 3.81mm pitch crimp connectors] and the contents of the second item in the table list of all (material number / model) connector products; if you want to buy or understand what we can provide connector | harness | cable product solutions, welcome to contact us through the following way.
