Categorization：Brand Connector

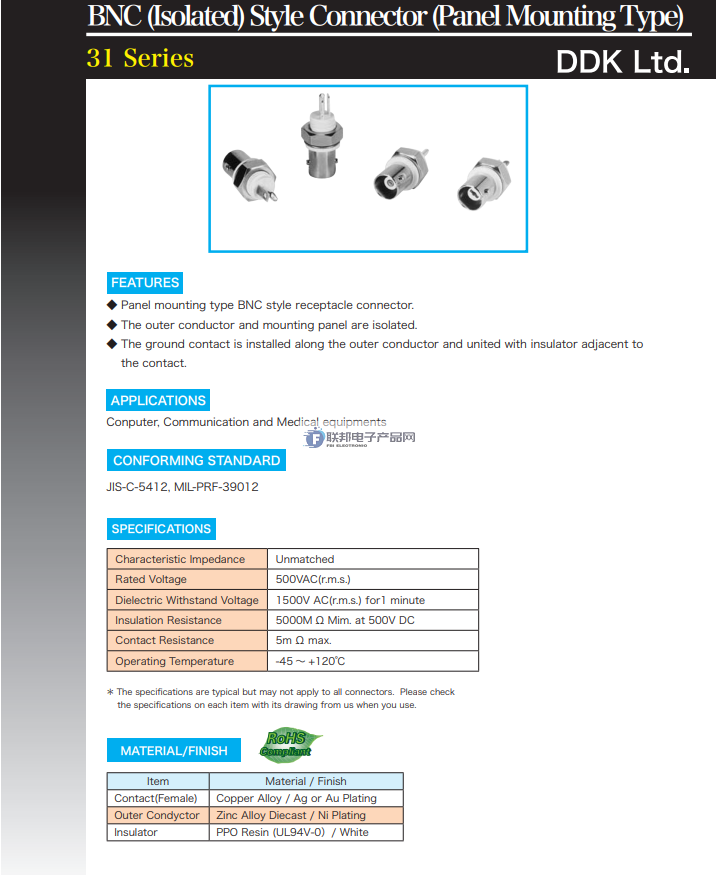

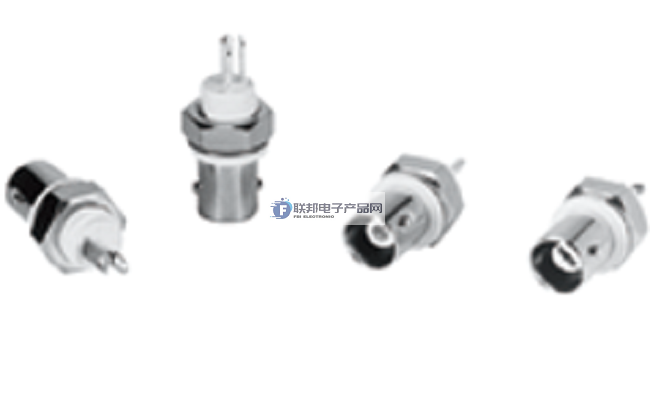

DDK|DDK Connectors|NIPPON ELECTRONICS 31 Series BNC Shaped Coaxial Connectors are a type of receptacle that is insulated with the BNC series (plug) inserted in a mounting panel. The outer conductor of the connector provides substantial insulation between the connector and the panel. The grounding terminal connects the outer conductor to the center conductor, and it is an injection molded one-piece type that is easy to use. The round pin connector type (31-10-CF, 31-10-CAu-CF) is UL approved. (UL File No. E72124).
| The general specifications for the electrical performance of this series of products are: | |
| Characteristic impedance: mismatch | Insulation resistance: DC500V 5000MΩ or above is used |
| Rated voltage: AC500V(r.m.s.) | Contact resistance: 5mΩ or less |
| Use temperature range: -45～+120℃ | Locking torque: 135.2N・cm (13.8kg・cm) or less |
| Withstanding Voltage : AC1500V(r.m.s.) for 1min. | |
1, DDK | DDK Connectors | Japan Electronics 31 series BNC-shaped coaxial connector main product specification details:
| Features. |
| ◆ Panel mount type BNC type receptacle connector. |
| ◆ External conductors and mounting panels are isolated. |
| ◆ Grounding contacts are mounted along the outer conductor and are in bonded contact with adjacent insulators. |
------------------------------------------------------------------------------------------------
2, Japan DDK | DDK connectors | Japan Electronics 31 series BNC-shaped coaxial connector main material number / type:
| 31-10-CF | 31-10T-D2 | |||
| 31-10-CAu-CF |
------------------------------------------------------------------------------------------------
3, Japan DDK - DDK | Japan Electronics 31 series BNC-shaped coaxial connector This product seller:
Agency sales [Japan DDK connectors - DDK | Japan's first electronic 31 series BNC-shaped coaxial connectors] as well as the contents of the second item in the table list of all (No./Model) connector products; if you want to buy or understand what we can provide connectors | wiring harness | wire and cable product solutions, welcome through the following way to contact us.
