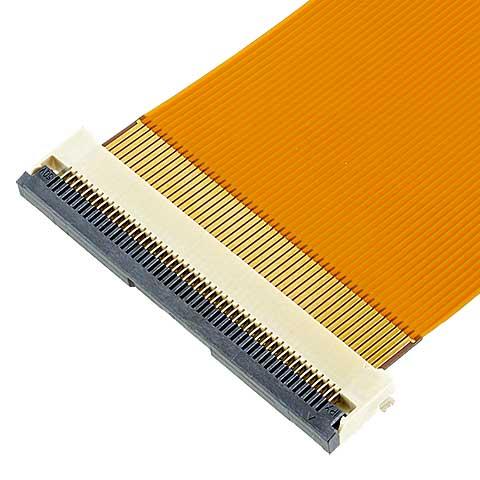

I-PEX 0.5mm Pitch 20593 Series Back-Locking FFC/FPC Connector is a: Package and FPC size compatible with conventional products in the industry, height = 2.0 mm, 0.5 mm pitch, horizontal plug, back-locking; Package and FPC size compatible with conventional products in the industry; Fully enclosed piano cover prevents foreign bodies and terminal deformation; When the piano cover is closed without inserting the FPC, the connector can still be used; Pin spacing (mm): 0.500; Height: 2.20 Max (2.00 Nom.); Pin number available: 8 10 12 14 18 20 22 24 30 34 36 38 40 45 50; Fitting type: horizontal FFC/FPC connector.
1、 I-PEX 0.5mm Pitch 20593 Series Rear Locking FFC/FPC Connectors Main Product Details:

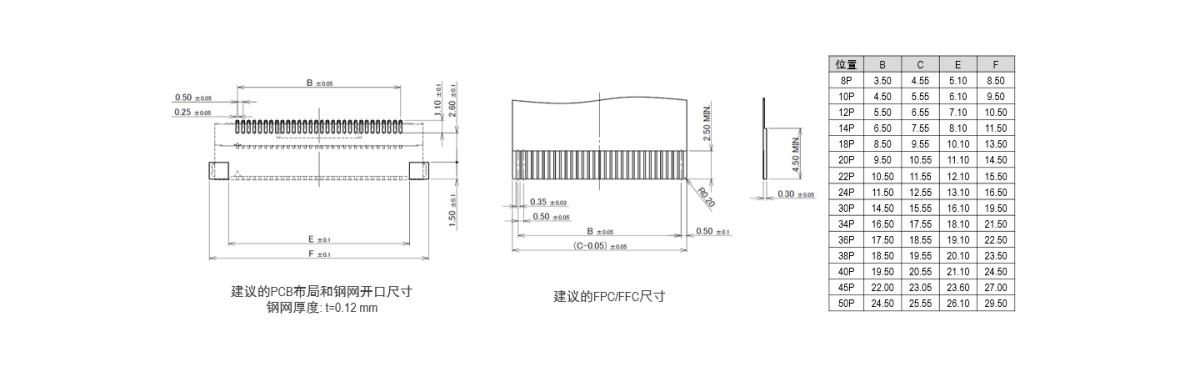

Package and FPC dimensions are compatible with conventional products in the industry:

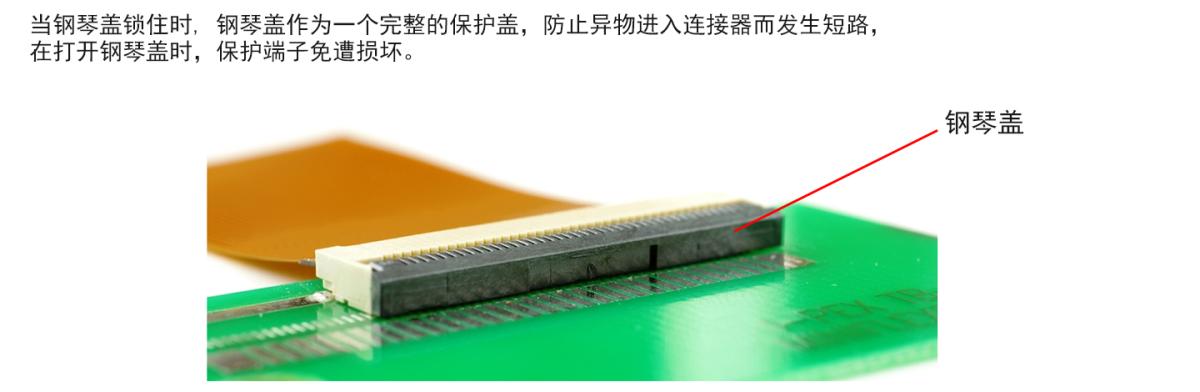

Fully enclosed piano cover prevents foreign objects and terminal deformation:

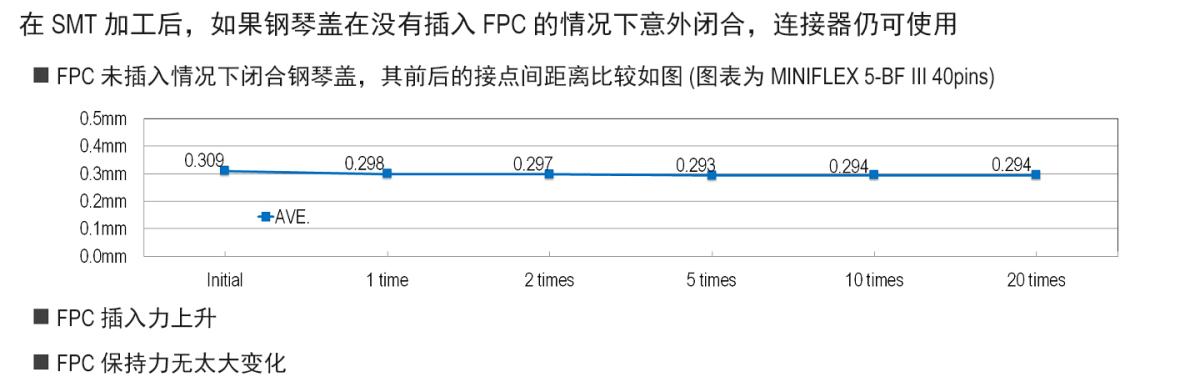

When the piano cover is closed without the FPC inserted, the connector can still be used:
------------------------------------------------------------------------------------------------
2、 I-PEX 0.5mm Pitch 20593 Series Rear Locking FFC/FPC Connectors Specifications:
| Product Type | Rear lock type |
| Chimera type | Level |
| Contact pitch | 0.50 mm |
| Height | 2.20 Max (2.00 Nom.) , |
| Depth | 5.90 mm |
| Width Formula | 3.5+(0.5*?P) mm |
| Pin count | 81012141820222430343638404550 |
| FPC/FFC Thickness | 0.3 |
| Current rating | 0.5A / Signal pin |
| Full shielding (ZenShield®) | No |
| Mechanical lock | No |
------------------------------------------------------------------------------------------------
Main model/material number of 3、 I-PEX 0.5mm pitch 20593 series rear locking FFC/FPC connector:
MINIFLEX 5-BFN III RECOMMENDED PART NUMBERS
| Part Number Description | Pin count | Part Number |
| MINIFLEX 5-BF III | 8 | 20593-008E-01 |
| 10 | 20593-010E-01 | |
| 12 | 20593-012E-01 | |
| 14 | 20593-014E-01 | |
| 18 | 20593-018E-01 | |
| 20 | 20593-020E-01 | |
| 22 | 20593-022E-01 | |
| 24 | 20593-024E-01 | |
| 30 | 20593-030E-01 | |
| 34 | 20593-034E-01 | |
| 36 | 20593-036E-01 | |
| 38 | 20593-038E-01 | |
| 40 | 20593-040E-01 | |
| 45 | 20593-045E-01 | |
| 50 | 20593-050E-01 |
OTHER MINIFLEX 5-BFN III PART NUMBERS
| Part Number Description | Pin count | Part Number |
| MINIFLEX 5-BF III | 60 | 20593-060E-01 |
------------------------------------------------------------------------------------------------
4、 Japan I-PEX Connectors -- I-PEX 0.5mm Pitch 20593 Series Rear Locking FFC/FPC Connector
