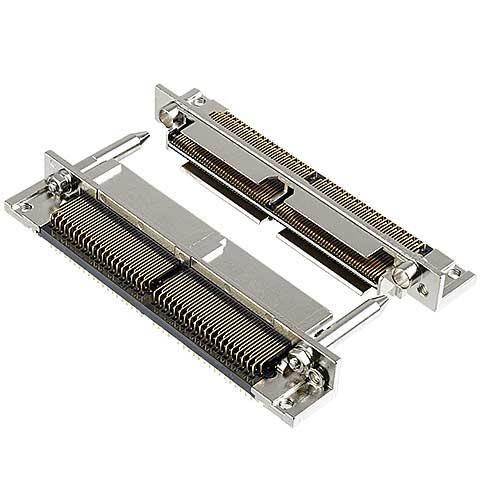

The I-PEX 30001 series high-pin MINIDOCK ™ STANDARD I/O connector is a robust, high-pin Docking I/O connector; Rugged connector for multiple applications (mobile devices, instrumentation, medical devices, etc.); Up to 5,000 mating cycles; Screw-on option with ideal latching; Contact pitch (mm): 0.635; Available Pin counts: 100 120 160 200 240; Mating type: Right angle MINIDOCK I/O connector.
1、 I-PEX30001 Series High Pin MINIDOCK ™ STANDARD I/O Connectors Main Product Details:
Rugged connectors for multiple applications (mobile devices, instrumentation, medical devices, etc.):
Up to 5,000 mating cycles:
Available in a screw-on version with ideal latching features:
------------------------------------------------------------------------------------------------
2、 I-PEX30001 Series High-Pin MINIDOCK ™ STANDARD I/O Connectors Specifications:
| Chimera type | Right angle |
| Width Formula | 36.0 ~ 96.10 mm (Plug / Rece) mm |
| Pin count | 100120160200240 |
| Other Features | With screw but without positioning column |
------------------------------------------------------------------------------------------------

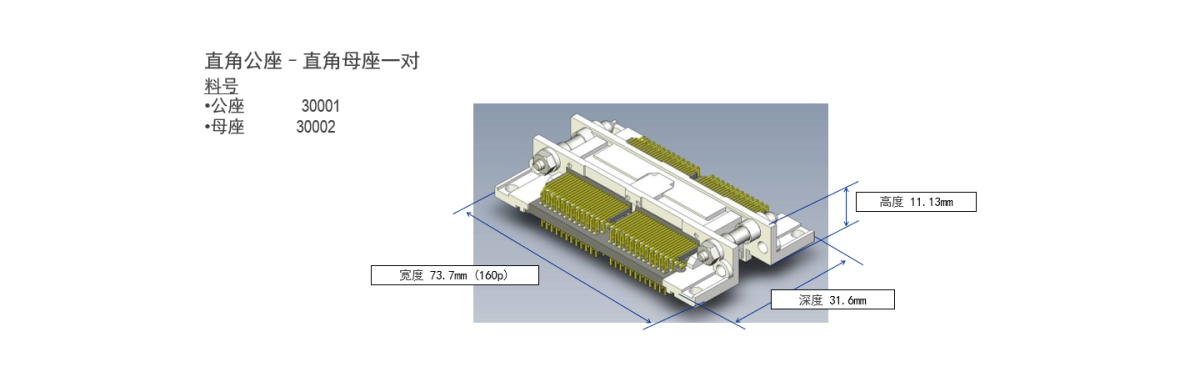

3、 I-PEX30001 Series High Pin MINIDOCK ™ STANDARD I/O Connectors Key Models/Part Numbers:

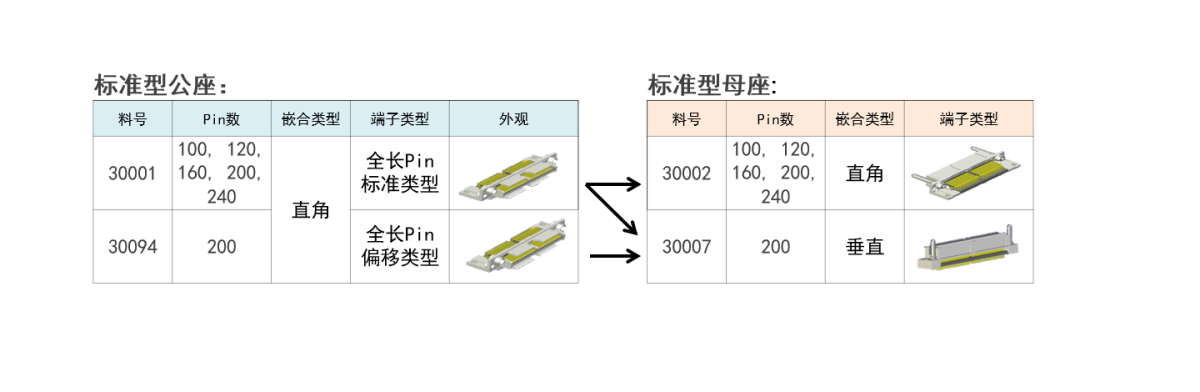

MINIDOCK (Standard) RECOMMENDED PART NUMBERS
| Part Number Description | Pin count | Part Number | |
| PLUG | RIGHT ANGLE | 100 | 30001-100T-01F |
| 120 | 30001-120T-03F | ||
| 160 | 30001-160T-F | ||
| 200 | 30001-200T-01F | ||
| 200 | 30094-200T-F | ||
| 240 | 30001-240T-02F | ||
| RECEPTACLE | RIGHT ANGLE | 100 | 30002-100T-F |
| 120 | 30002-120T-F | ||
| 160 | 30002-160T-F | ||
| 200 | 30002-200T-01F | ||
| 240 | 30002-240T-01F | ||

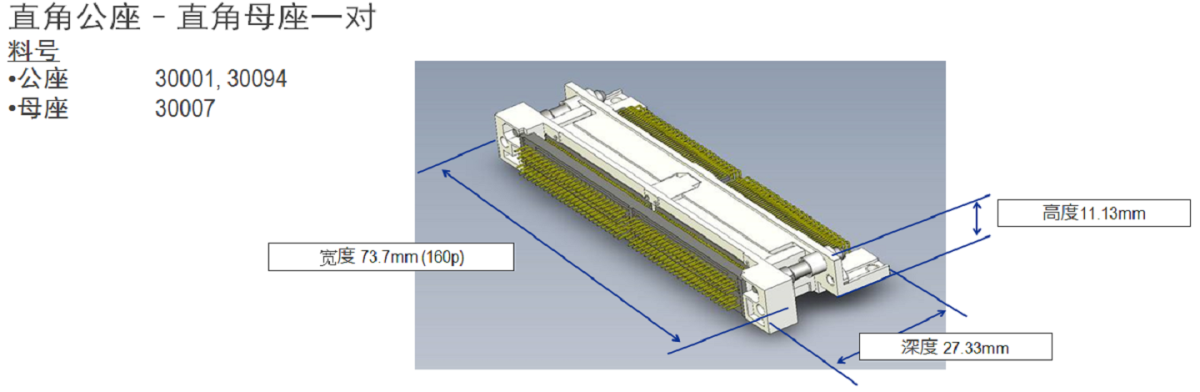

| VERTICAL | 200 | 30007-200T-03F | |
OTHER MINIDOCK (Standard) PART NUMBERS
| Part Number Description | Pin count | Part Number | |
| PLUG | RIGHT ANGLE | 100 | 30001-100T-F |
| 120 | 30001-120T-01F | ||
| 120 | 30001-120T-F | ||
| 160 | 30001-160T-01F | ||
| 160 | 30057-160T-F | ||
| RECEPTACLE | RIGHT ANGLE | 120 | 30002-120T-01F |
| 160 | 30002-160T-01F | ||
| 160 | 30002-160T-02F |
------------------------------------------------------------------------------------------------
4、 Japan I-PEX Connectors -- I-PEX 30001 Series High-pin MINIDOCK ™ STANDARD I/O Connectors
