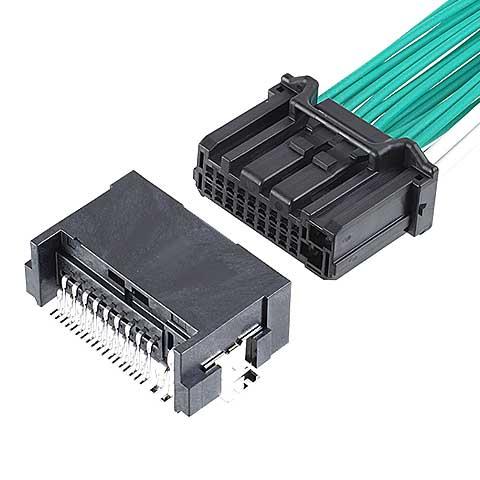

I-PEX V0071 series automotive and industrial-grade SMT connectors are: heat-resistant, vibration-resistant, mixed (signal + power) terminals; high heat resistance and vibration resistance, suitable for high contact reliability applications; unique embedded spring terminals, providing long-term stable electrical connection; suitable for automotive and industrial-grade industrial applications; Contact spacing (mm): 2.000; Height: 13.60 Max; Available Pin number: 20 28; Fitting type: horizontal vehicle gauge and industrial level SMT connector.
1、 the main product details of I-PEXV0071 series vehicle and industrial SMT connectors:

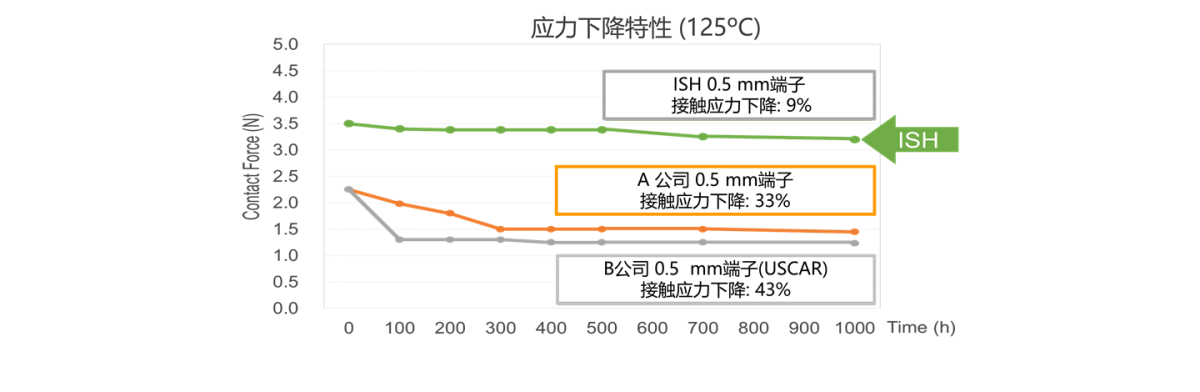

High heat and vibration resistance for high contact reliability applications:

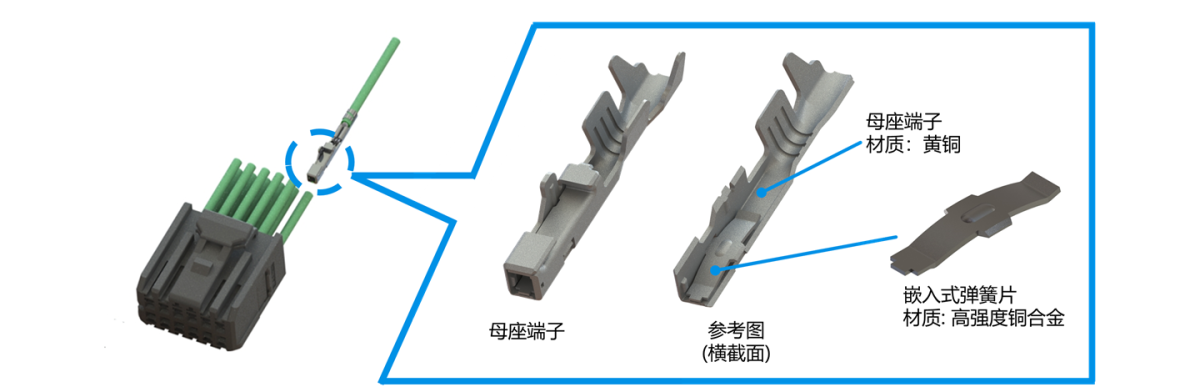

Unique embedded spring terminals provide long-term stable electrical connection:
Applicable to the industry applications of vehicle regulation and industrial level:
------------------------------------------------------------------------------------------------
2、 the technical parameters of I-PEXV0071 series vehicle and industrial SMT connectors:
| Chimera type | Level |
| Contact pitch | 2.00 mm |
| Height | 13.60 Max |
| Depth | 25.30 mm |
| Width Formula | 13.0+1.0*pin mm |
| Pin count | 2028 |
| Discrete Cable (AWG) | #20#22 |
| Current rating | 4.5A per pin (Signal)7A per pin (Power) |
| Full shielding (ZenShield®) | No |
| Mechanical lock | Yes |
------------------------------------------------------------------------------------------------
3、 the main model/material number of I-PEXV0071 series vehicle standard and industrial level SMT connector:
ISH (Horizontal Type-Hybrid) RECOMMENDED PART NUMBERS
| Part Number Description | Pin count | Part Number | |
| MALE CONNECTOR | 20 | V0071-020E-011 | |
| 28 | V0071-028E-011 | ||
| FEMALE HOUSING | 20 | V0072-020B-111 | |
| 28 | V0072-028B-112 | ||
| TERMINAL (for FEMALE) | Size 0.5 mm | - | VT001-513 |
| Size 1.5 mm | - | VT004-513 | |
OTHER ISH (Horizontal Type-Hybrid) PART NUMBERS
| Part Number Description | Pin count | Part Number |
| MALE CONNECTOR | 20 | V0071-020E-012 |
| FEMALE HOUSING | 20 | V0072-020B-112 |
------------------------------------------------------------------------------------------------
