JAEJAE Connectors The Japan Avionics WP10 Series 0.4 mm pitch board-to-board (FPC) connector is a: stacked board-to-board (FPC) connector with a compact and space-saving form factor. It is ideal for high-current connectivity areas such as battery connectivity for compact handheld devices such as smartphones, wearables and tablets. This product features high current compatible power terminals that allow power distribution of 10A. In addition, there is a variant that can support currents up to 12A by using a combination of power terminals and an improved hold-down device. The hold-down structure with a locking area prevents damage to the connector during mating, improves customer maneuverability, and also has a high pull-out force to prevent product detachment. Its key features are: 0.40 mm pitch, 2 rows, 0.7 mm stack height, 2.2 mm width Power terminals (5.0 A/pin x 4 pin) compatible with 10A power supply. The 12A variant may be used for improved compaction with additional power. The two-point construction design of the power and signal terminals resists twisting stresses. Armored durable hold-down construction with locking area enhances retention and adds protection to the mating surface to prevent damage to the plastic insulator. The operability of customers is improved, and there is a clear click sense in the cooperation process. The contact structure ensures high abrasion resistance and high conductive reliability. Lead-free. (Nickel barrier layer on contact. ) The main applications are: mobile phones, smartphones, wearable devices, tablets, laptops and other small portable devices.
1. JAEJAE connector Japan Avionics WP10 series 0.4 mm pitch board-to-board (FPC) connector main product specifications details:
| Number of Contacts | 2, 4 pos. (signal), 4 pos. (power), 2 pos. (Hold-down) |
| Pitch | 0.4 mm, 2 rows |
| Rated Current | Signal Terminal: AC, DC 0.4 A/pos. |
| Power Supply Terminal: AC, DC 5.0 A/pos. | |
| Hold-down: AC, DC 2.0 A/pos. (Only for 12A products) | |
| Rated Voltage | AC, DC 50 V |
| Contact Resistance (Initial) | Signal Terminal: 20 milliohm max. |
| Power Supply Terminal: 5 milliohm max. | |
| Hold-down: 20 milliohm max. | |
| Insulation Resistance (Initial) | 100 megohm min. |
| Dielectric Withstanding Voltage | AC 250 Vr.m.s. (1 minute) |
| Total Insertion Force | 40 N max. |
| Total Extraction Force | 10 N min. |
| Durability Mating Cycles | 30 mating cycles |
| Operating Temperature Range | -40 deg. C to +85 deg. C |
------------------------------------------------------------------------------------------------
2. Japan JAEJAE connector Japan Avionics WP10 series 0.4 mm pitch board-to-board (FPC) connector main material number/model:
| Product Name | Features | Connector Type |
| WP10-P004VA12-R15000 | 0.4mm pitch, Stacking type board-to-board (FPC) connector, Plug, 4 pos. (Signal), 4 pos. (Power), 2 pos. (Hold-down) | Plug |
| WP10-S004VA12-R15000 | 0.4mm pitch, Stacking type board-to-board (FPC) connector, Receptacle, 4 pos. (Signal), 4 pos. (Power), 2 pos. (Hold-down) | Receptacle |
| WP10-P002VA10-R15000 | 0.4mm pitch, Stacking type board-to-board (FPC) connector, Plug, 2 pos. (Signal), 4 pos. (Power) | Plug |
| WP10-P004VA10-R15000 | 0.4mm pitch, Stacking type board-to-board (FPC) connector, Plug, 4 pos. (Signal), 4 pos. (Power) | Plug |
| WP10-S002VA10-R15000 | 0.4mm pitch, Stacking type board-to-board (FPC) connector, Receptacle, 2 pos. (Signal), 4 pos. (Power) | Receptacle |
| WP10-S004VA10-R15000 | 0.4mm pitch, Stacking type board-to-board (FPC) connector, Receptacle, 4 pos. (Signal), 4 pos. (Power) | Receptacle |
------------------------------------------------------------------------------------------------

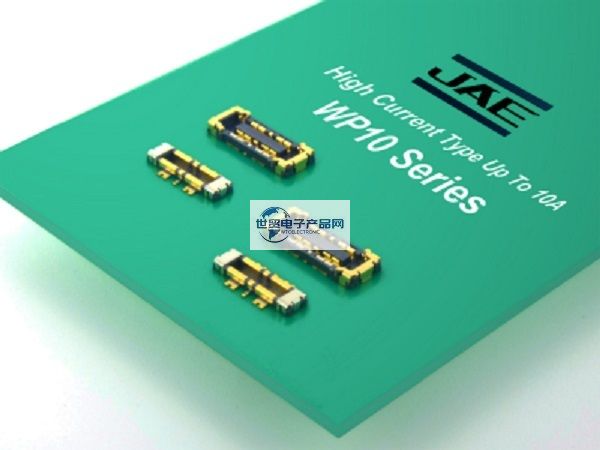

3. Japan JAE connector--JAE Japan Avionics WP10 series 0.4 mm pitch board-to-board (FPC) connector
