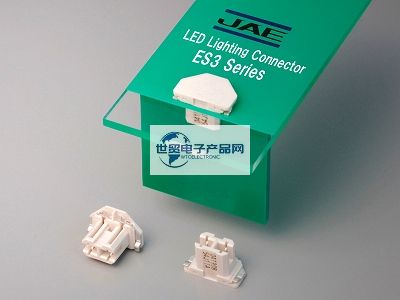

JAEJAE connector Japan Avionics ES3 series LED power card edge connector is a: card edge connector for LED lighting power supply, which supports direct connection of converter board and LED mounting board. The connector is a 2-position card edge type connector ideal for LED bulbs and LED lighting fixtures. ES3 series connectors feature embossed tape and are compatible with SMT installation. The connectors allow reflow soldering to be mounted to the LED mounting board while mounting other components such as LEDs and SMT components. Low profile 1.6 mm mounting height, designed with light shielding in mind. The insulator is made of white LCP (liquid crystal polymer) and is heat and light resistant. The direct connection of the converter board and LED mounting board can reduce assembly work time. The cable-less connection makes it possible to reduce the number of parts. The SMT type can be mounted on the LED mounting board at the same time as other components. Its main features are: low profile 1.6 mm mounting height, designed with light shielding in mind. The insulator is made of white LCP (liquid crystal polymer) and is heat and light resistant. The direct connection of the converter board and LED mounting board can reduce assembly work time. The cable-less connection makes it possible to reduce the number of parts. The SMT type can be mounted on the LED mounting board at the same time as other components.
1. JAEJAE connector Japan Avionics ES3 series LED power card edge connector main product specifications details:
| Number of Contacts | 2 positions |
| Rated Current | 1 A |
| Rated Voltage | AC/ DC 200 V |
| Contact Resistance | 60 milliohm max. |
| Dielectric Withstanding Voltage | 500 VACr.m.s. (1 minute) |
| Insulation Resistance | 10 megohm min. |
| Operating Temperature Range | -40 deg. C to +105 deg. C |
| Remarks | cULus-certified. (NOV. 2011.) |
------------------------------------------------------------------------------------------------
2. Japan JAEJAE connector Japan Avionics ES3 series LED power card edge connector main material number/model:
ES3B002WF1/ES3B002WF1R1000
------------------------------------------------------------------------------------------------
3. Japan JAE connector--JAE Japan Avionics ES3 series LED power card edge connector
