JAE Connectors-Provide JAE|Japanese Avionics WP7 Series 0.4mm Pitch Board-to-Board (FPC) Connectors

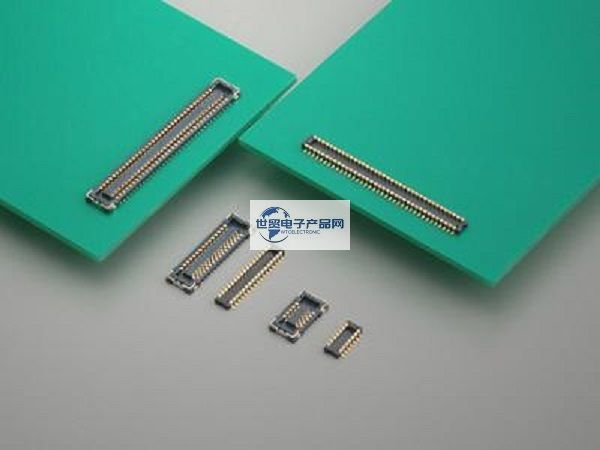

JAEJAE Connectors Japan Avionics WP7 Series 0.4 mm Pitch Board-to-Board (FPC) Connector is a: low profile board-to-board (FPC) connector with a 0.4 mm pitch, ideal for high-density installation in ultra-thin information communication devices such as mobile phones, smartphones, LCDs and laptops. In order to meet different product functional requirements, the low-pin count and high-pin count models (WP7A/WP7B) have the same mounting mode. Its main features are:. 4 mm pitch, 2 rows, 0.7 mm stacking height. The contact structure ensures high abrasion resistance and high contact reliability. Safety compression prevents breakage of the insulator and falling off of the FPC. Two-point contact design to resist twisting stresses. Lead-free. (The nickel barrier layer on the contacts prevents solder wicking. ) The socket contacts are better configured based on the number of pins. High removal force WP7A (low pin count: 10-32 positions. ) Low insertion force WP7B (high pin count 34-70 pos. ) Signal contacts support 10 Gbps transfer rates. Supports MIPI, USB3.1 2nd generation and PCIe 3rd generation transmission. The main applications are: information and communication equipment, such as mobile phones, LCD monitors and notebook computers.

1. Japan JAEJAE connector Japan Avionics WP7 series 0.4 mm pitch board-to-board (FPC) connector main material number/model:

------------------------------------------------------------------------------------------------

2. Japan JAE connector--JAE Japan Avionics WP7 series 0.4 mm pitch board-to-board (FPC) connector
