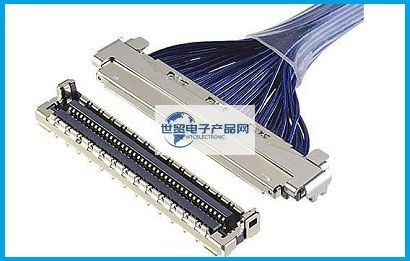

Compatible with/replacing I-PEXI-PEX connector Japan's Daiichi Seiko 20879-040E-010.4 mm pitch LVDS connector female product is a: fully shielded design and multi-point grounding design, mechanical locking, high-speed data transmission (20 Gbps/lane), 0.4 mm pitch, 90-degree outlet vertical plug-in ultra-thin coaxial connector; Its main features are: ZenShield ® 's fully shielded and multi-point grounding design effectively prevents EMI leakage; Diversified options; High contact reliability. [World Trade Electronic Products Network provides compatible I-PEXI-PEX connectors Japan's No. 1 Seiko 20879-040E-010.4 mm pitch LVDS connector female replacement].

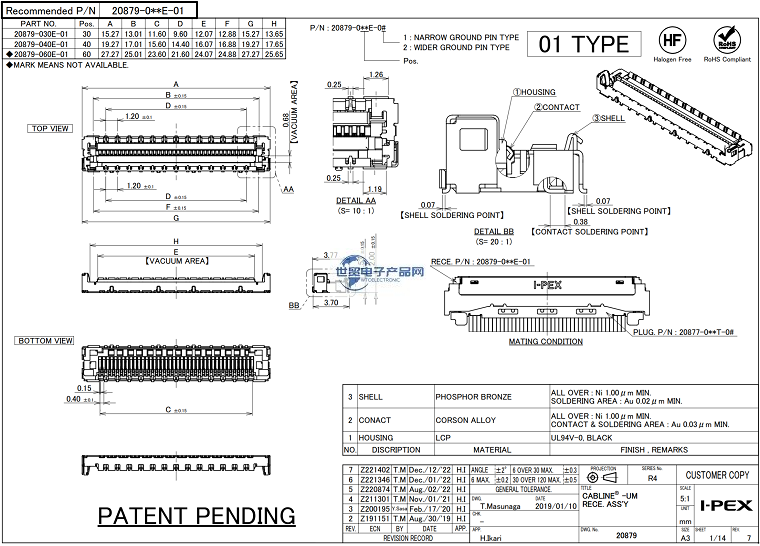

---------------------------------------------------------------------------------------1. Compatible with/replacing I-PEXI-PEX connector Japan Daiichi Seiko 20879-040E-010.4 mm pitch LVDS connector female product related technical parameters:
| Chimeric type | Vertical |
| Contact pitch | 0.40 mm |
| Height | 2.35 Max (2.20 Nom.) , |
| Depth | 5.00 mm |
| Width Formula | With Lock Cover : 5.0 + (0.4 * ?p); Without Lock Cover : 4.2 + (0.4 * ?p) mm |
| Pin count | 304060 |
| Micro-Coaxial Cable (AWG) | #38#40#42#44#46 |
| Discrete Cable (AWG) | #34#36#38#39#40#42#44#46 |
| Current rating | 0.1A AC/DC [AWG #44] Per Contact0.24A AC/DC [AWG #42] Per Contact0.3A AC/DC [AWG #40] Per Contact0.5A AC/DC [AWG #38] Per Contact0.8A AC/DC [AWG #36] Per Contact1.0A AC/DC [AWG #34] Per Contact |
| Applicable Standards (Reference Only) | USB4 (20 Gbps/lane)USB 3.1 Gen 2 (10 Gbps)USB 3.1 Gen 1 (5 Gbps)eDP HBR 3 (8.1 Gbps)eDP HBR 2 (5.4 Gbps)eDP (2.7 Gbps)HDMI 2.0 (6 Gbps)V-By-One HS 1.4 (4 Gbps)MiPi standards |
| Full shielding (ZenShield®) | Yes |
| Mechanical lock | Yes |
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
