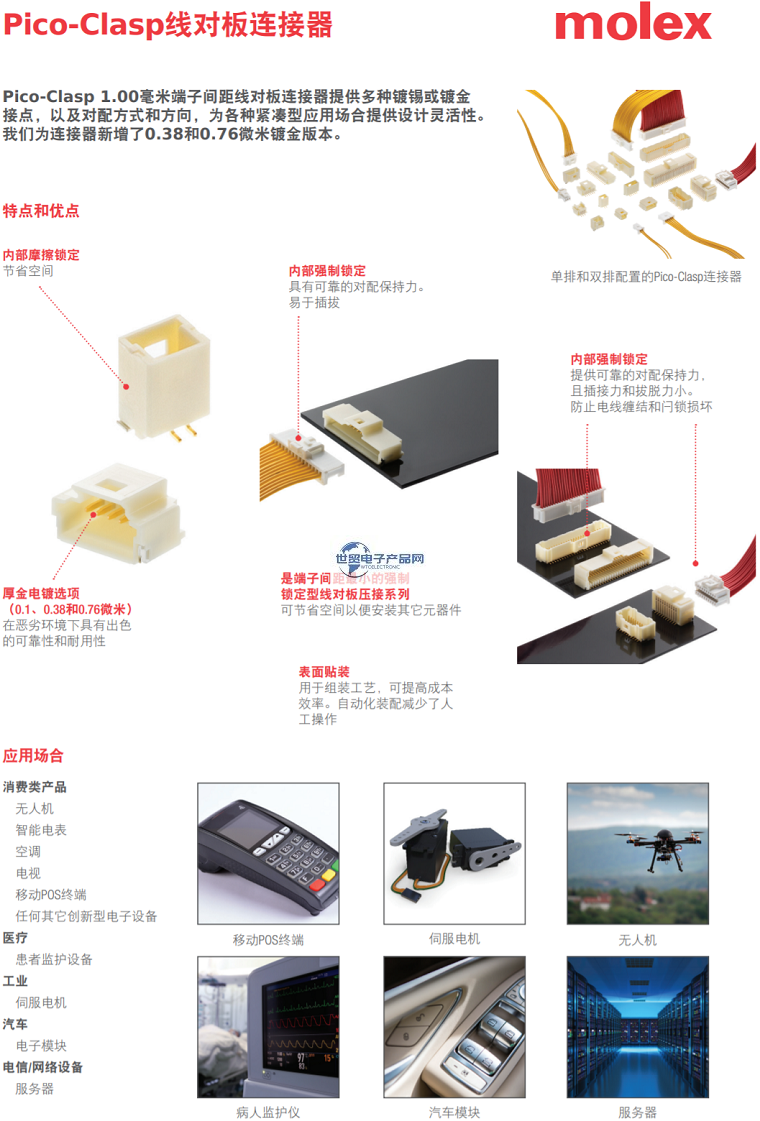

Compatible/Replacement MolexMolex Connectors MolexMolex Connectors 501330/501189 Series Connectors 2 * 10 ~ 2 * 25P1.0 mm Pitch WTB Connector Product is a: 1.00 mm pitch wire-to-board, Pico-Clasp connector system Available in circuit sizes from 2 to 50 and a range of terminal models, ideal for space-constrained applications. A wide range of design options, including gold plating and tin plating, provide both design flexibility and simple compatibility with product families; Its main features and advantages are: pressure locking wire-to-plate crimping system with minimum spacing: space saving for inserting other components, wide joint variation range: providing customers with multiple choices and design flexibility, internal friction locking: space saving, positive internal locking: providing reliable insertion firmness and low insertion and unlocking force, preventing cable entanglement and unlocking, external pressure locking: firm insertion and easy insertion and unlocking, SMT installation: providing assembly and cost-effectiveness, automated assembly reduces manpower. [World Trade Electronic Products Network provides MolexMolex connectors MolexMolex connectors 501330/501189 series connectors 2 * 10 ~ 2 * 25P1. 0mm pitch WTB connector plug replacements].

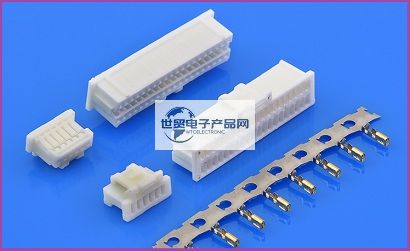

---------------------------------------------------------------------------------------1. Compatible with/replacing MolexMolex Connector MolexMolex Connector 501330/501189 Series 1.0 mm Pitch WTB Connector Plug Product Related Specifications:
| Reference information: | Electrical parameters: |
| Packaging: Terminal-Reel Housing | Voltage (Max): 50 V |
| Cage-Bagged | Current (Max): See Derating Information |
| Base-Carrier Reel | Contact resistance (max): 20 milliohm |
| Design unit of measurement: mm | Dielectric withstand voltage: 250 VAC, 1 minute |
| RoHS Compliance: Yes | Insulation resistance (min): 100 Mohm. |
| Whether it meets the standard of scorching wire: No | AWG Wire Number: 28, 30, 32 |
| Whether it is halogen-free: No | UL: 1571 (UL1571 electron line) |
| Physical parameters: | Mechanical parameters: |
| Terminal: Phosphor Bronze | Pluggable times (min): 30 times |
| Housing: Nylon | |
| Electroplating: Tin plating or 0.1/0.38/0.76 micron gold plating | |
| Operating temperature:-40 to + 105 degrees Celsius |
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
----------------------------------------------------------------------------------3. Compatible/replacement 501330/501189 series connectors 2 * 10 ~ 2 * 25P1. 0mm pitch WTB connector plugs Product material number/model list:
| 5011892010 | 5011893010 | 5011894010 | 5013300200 | 5013300300 |
| 5013300400 | 5013300500 | 5013300600 | 5013300700 | 5013300800 |
| 5013300900 | 5013301000 | 5013301100 | 5013301200 | 5013301300 |
| 5013301400 | 5013301500 |
------------------------------------------------------------------------------------------------------------4. Wire-to-Board Connector-Compatible with Molex501330/501189 Series Connector 2 * 10 ~ 2 * 25P1. 0mm Pitch WTB Connector Replacement
