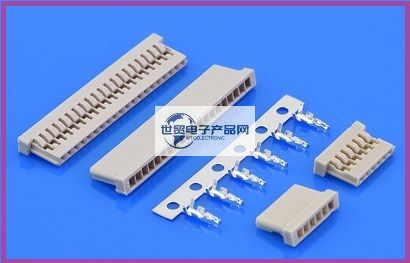

Wire-to-Board Connectors - Provide Compatible HRS|DF14 Series Connectors 2P~30P|1.25mm Pitch WTB Connector Plug and Receptacle Replacements

Compatible with/replacing HRS Hirose Hirose connector DF14 series connector 2P ~ 30P 1.25 mm pitch WTB connector product is a: 1.25 mm pitch, low and thin press connector; The DF14 is a right angle connector. Signals can use DF14 where there is no space between the boards. The airborne DF14 (A) has a plate mounting height of 2.5 mm. The offset version, DF14H, has a lower profile with a plate mounting height of 1.6 mm. Pitch: 1.25 mm, Pin Bit: 2 ~ 30P, Product Color: White/Brown, Product Material: PA66 UL94V-0/C5191, Applicable Wire: AWG # 26 ~ 32. [World Trade Electronic Products Network provides HRS Hirose Hirose connector DF14 series connector 2P ~ 30P1. 25mm pitch WTB connector plug and socket replacement].

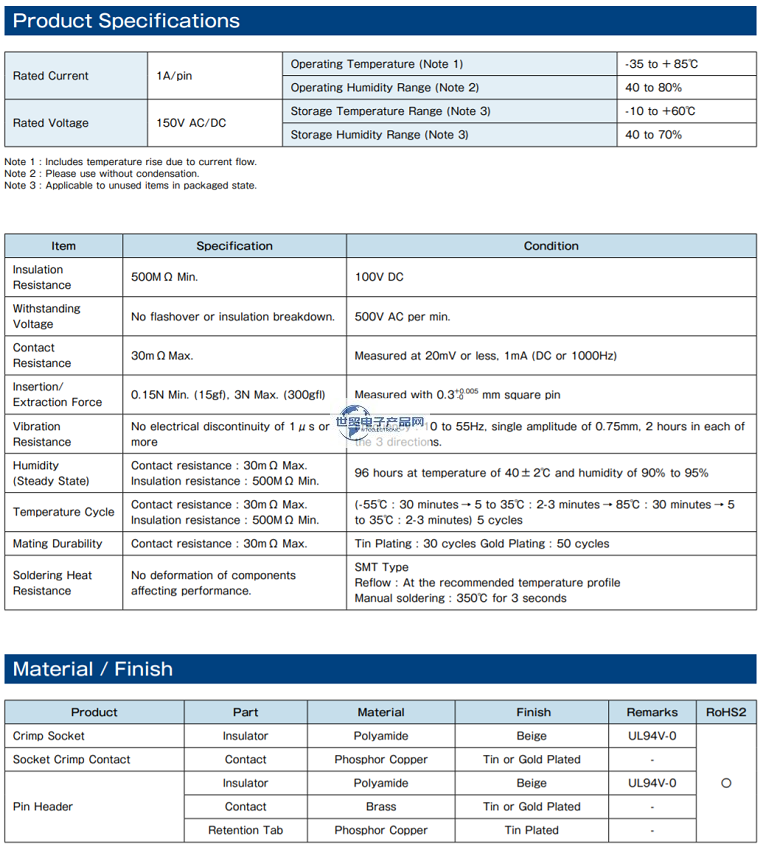

------------------------------------------------------------------------------------------1. Compatible with/replacing HRSHirose connector DF14 series connector 2P ~ 30P1. 25mm pitch WTB connector plug and socket product specifications and parameters:

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------3. Compatible/replacement HRSDF14 series connectors 2P ~ 30P1. 25mm pitch WTB connectors plug and socket product material number/model list:

----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
