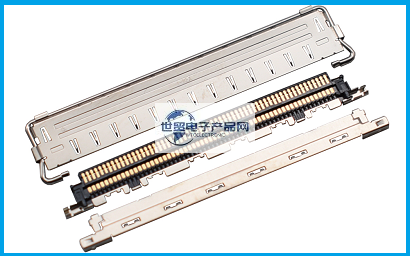

Compatible with/replacing I-PEXI-PEX connector Japan's No. 1 Seiko 20680-060T-010.4 mm pitch LVDS connector product is a: fully shielded design with mechanical locking, high-speed data transmission (20 Gbps/lane), 0.4 mm pitch, extremely thin coaxial connector for horizontal plugging and unplugging; Its main features are: ZenShield ® 's fully shielded and multi-point grounding design effectively prevents EMI leakage; The mechanical locking cover prevents the connector from being incompletely fitted and falling off; High-rate transmission, ideal for Thunderbolt 3 (20 Gbps/lane) applications; contact spacing (mm): 0.400; Height: 1.10 Max; Pin number: 60P; Extremely thin coaxial wire (AWG): # 38 # 40 # 42 # 44 # 46; Chimeric Type: Horizontal. [World Trade Electronic Products Network provides compatible I-PEXI-PEX connectors Japan's No. 1 Seiko 20680-060T-010.4 mm pitch LVDS connector replacement].
-----------------------------------------------------------------------------------------1. Compatible with/replacing I-PEXI-PEX connector Japan Daiichi Seiko 20680-060T-010.4 mm pitch LVDS connector product related technical parameters:
| Chimeric type | Level |
| Contact pitch | 0.40 mm |
| Height | 1.20 Max |
| Depth | 6.70 mm |
| Width Formula | 6.95+(0.4*?p) mm |
| Pin count | 60 |
| Micro-Coaxial Cable (AWG) | #38#40#42#44#46 |
| Discrete Cable (AWG) | #34#36#38#39#40#42#44#46 |
| Current rating | 0.1A AC/DC [AWG #44] per contact/up to 60 contacts0.24A AC/DC [AWG #42] per contact/up to 60 contacts0.3A AC/DC [AWG #40] per contact/up to 60 contacts0.5A AC/DC [AWG #38] per contact/up to 18 contacts0.8A AC/DC [AWG #36] per contact/up to 6 contacts1.0A AC/DC [AWG #34] per contact/up to 6 contacts |
| Applicable Standards (Reference Only) | USB4 (20 Gbps/lane)USB 3.1 Gen 2 (10 Gbps)USB 3.1 Gen 1 (5 Gbps)eDP HBR 3 (8.1 Gbps)eDP HBR 2 (5.4 Gbps)eDP (2.7 Gbps)HDMI 2.0 (6 Gbps)V-By-One HS 1.4 (4 Gbps)MiPi standards |
| Full shielding (ZenShield®) | Yes |
| Mechanical lock | Yes |

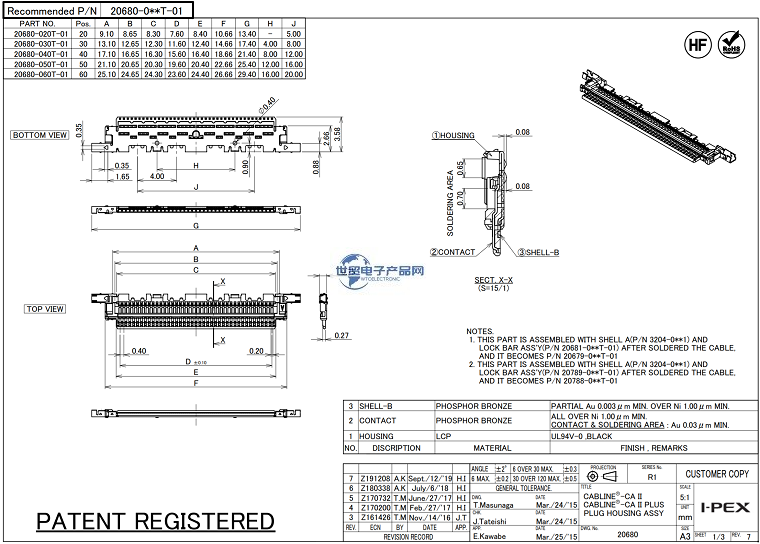

--------------------------------------------------------------------------2. Compatible with I-PEXI-PEX connector Japan Daiichi Seiko 20680-060T-010.4 mm pitch LVDS connector Reference drawing:
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
