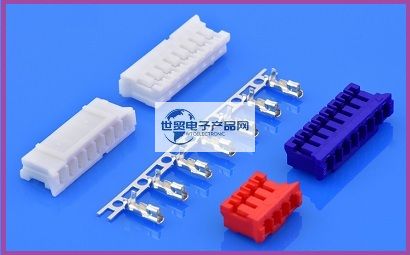

Compatible/replace JSTJST connector Japanese press-on terminal PHR series connector 2P ~ 16P 2. 0mm pitch WTB connector male and female socket product is a: 2.0 mm pitch/pluggable press-on connector; Fitting height 8.0 mm, width 4.5 mm (thin), pitch 2.0 mm. The connector is designed to meet the internal high-density wires connected to the printed circuit board. Compact, high reliability, low cost; Its main features are: high reliability terminal, box base, substrate fixed structure, surface package (SMT) type; pitch: 2.0 mm, Pin bit: 2 ~ 16P, product color: white, product material: PA66 UL94V-0/C5191, applicable wire: AWG # 24 ~ 28. [World Trade Electronic Products Network provides JSTJST connector Japan press terminal PHR series connector 2P ~ 16P 2. 0mm pitch WTB connector male and female seat substitute].
-----------------------------------------------------------------------------------1. Compatible with/replacing JSTJST connectors PHR series connectors 2P ~ 16P2. 0mm pitch WTB connectors male and female seats Product related description and parameters:

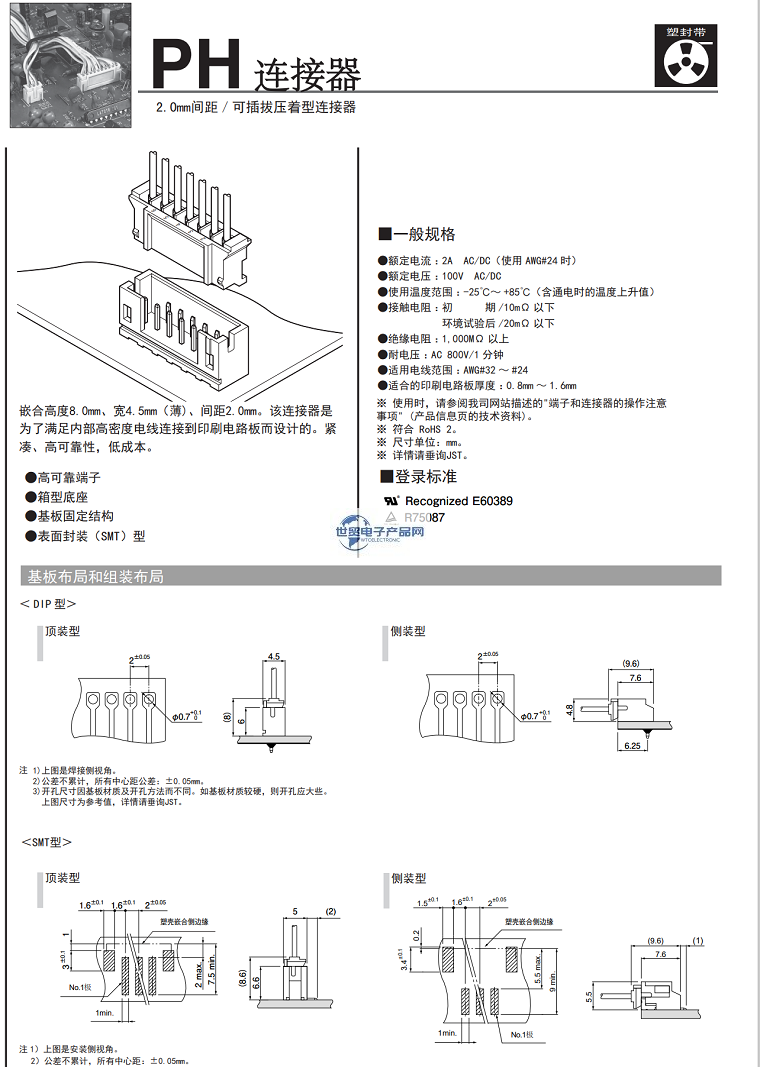

| PHR CONNECTOR Series Details: | PHR CONNECTOR Series General Electrical Performance Specifications: | |
| Type 1: | detachable type | ● Rated current: 2A AC/DC (when using AWG # 24) |
| Type 2: | Crimp type, thin profile | ● Rated voltage: 100V AC/DC |
| Spacing: | 2 | ● Operating temperature range:-25 ℃ ~ + 85 ℃ (including temperature increase when powered on) |
| Current: | 2A (AWG#24) | ● Contact resistance: initial/10 mΩ or less, after environmental test/20 mΩ or less |
| Features: | ● Insulation resistance: 1,000 MΩ or more | |
| Category Name: | Press-on connector (wire-to-board type) | ● Withstand voltage: AC 800V/1 minute |
| Height: | 2 | ● Applicable wire range: AWG # 32 ~ # 24 |
| Voltage: | 100V | ● Suitable printed circuit board thickness: 0.8 mm ~ 1.6 mm |
| Thickness: | ||
| Description: | * The groove in the center of the terminal ensures positive contact and low contact resistance at all times. | |
| * The terminal has a ribbon retention length of 2.6 +/-0.4 mm long. | ||
| * Box type plug with seat | ||
| * The same socket plug is available for kr/krd/cr crimp type connectors. | ||
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
-----------------------------------------------------------------------------------3. Compatible/replacement JSTPHR series connectors 2P ~ 16P2. 0mm pitch WTB connectors male and female seats Product material number/model list:
| B10B-PH-SM4-TB | S9B-PH-SM4-TB | S5B-PH-K-S | S14B-PH-KL | S16B-PH-KL |
| S14B-PH-K-S | B12B-PH-SM4-TB | PHR-5 | B10B-PH-KL | S2B-PH-KL |
| S2B-PH-SM4-TB | S14B-PH-SM4-TB | B9B-PH-SM4-TB | B11B-PH-KL | S3B-PH-KL |
| B10B-PH-K-S | S13B-PH-K-S | B2B-PH-SM4-TB | B12B-PH-KL | S4B-PH-KL |
| B6B-PH-K-S | PHR-9 | PHR-8 | B13B-PH-KL | S5B-PH-KL |
| B12B-PH-K-S | S7B-PH-K-S | S2B-PH-K-S | B14B-PH-KL | S6B-PH-KL |
| B5B-PH-K-S | S12B-PH-K-S | S11B-PH-K-S | B15B-PH-KL | S7B-PH-KL |
| B16B-PH-SM4-TB | S3B-PH-K-S | S6B-PH-SM4-TB | B16B-PH-KL | S8B-PH-KL |
| B4B-PH-K-S | B16B-PH-K-S | S8B-PH-SM4-TB | B2B-PH-KL | S9B-PH-KL |
| B15B-PH-SM4-TB | S13B-PH-SM4-TB | B14B-PH-SM4-TB | B3B-PH-KL | SPH-002T-P0.5L |
| B13B-PH-SM4-TB | B7B-PH-K-S | B5B-PH-SM4-TB | B4B-PH-KL | SPH-004T-P0.5S |
| PHR-10 | PHR-13 | S16B-PH-K-S | B5B-PH-KL | S6B-PH-K-S |
| S11B-PH-SM4-TB | PHR-4 | PHR-6 | B6B-PH-KL | S10B-PH-SM4-TB |
| B3B-PH-SM4-TB | S8B-PH-K-S | PHR-14 | B7B-PH-KL | B9B-PH-K-S |
| B8B-PH-K-S | PHR-16 | B11B-PH-SM4-TB | B8B-PH-KL | B3B-PH-K-S |
| S12B-PH-SM4-TB | B14B-PH-K-S | S7B-PH-SM4-TB | B9B-PH-KL | PHR-11 |
| B7B-PH-SM4-TB | S15B-PH-SM4-TB | B13B-PH-K-S | S10B-PH-KL | PHR-2 |
| S3B-PH-SM4-TB | PHR-7 | B11B-PH-K-S | S11B-PH-KL | S4B-PH-K-S |
| B6B-PH-SM4-TB | PHR-12 | B8B-PH-SM4-TB | S12B-PH-KL | S9B-PH-K-S |
| B15B-PH-K-S | PHR-3 | PHR-15 | S13B-PH-KL | S15B-PH-K-S |
| S5B-PH-SM4-TB | B4B-PH-SM4-TB | S4B-PH-SM4-TB | S15B-PH-KL | SPH-002T-P0.5S |
| B2B-PH-K-S | S10B-PH-K-S |
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
