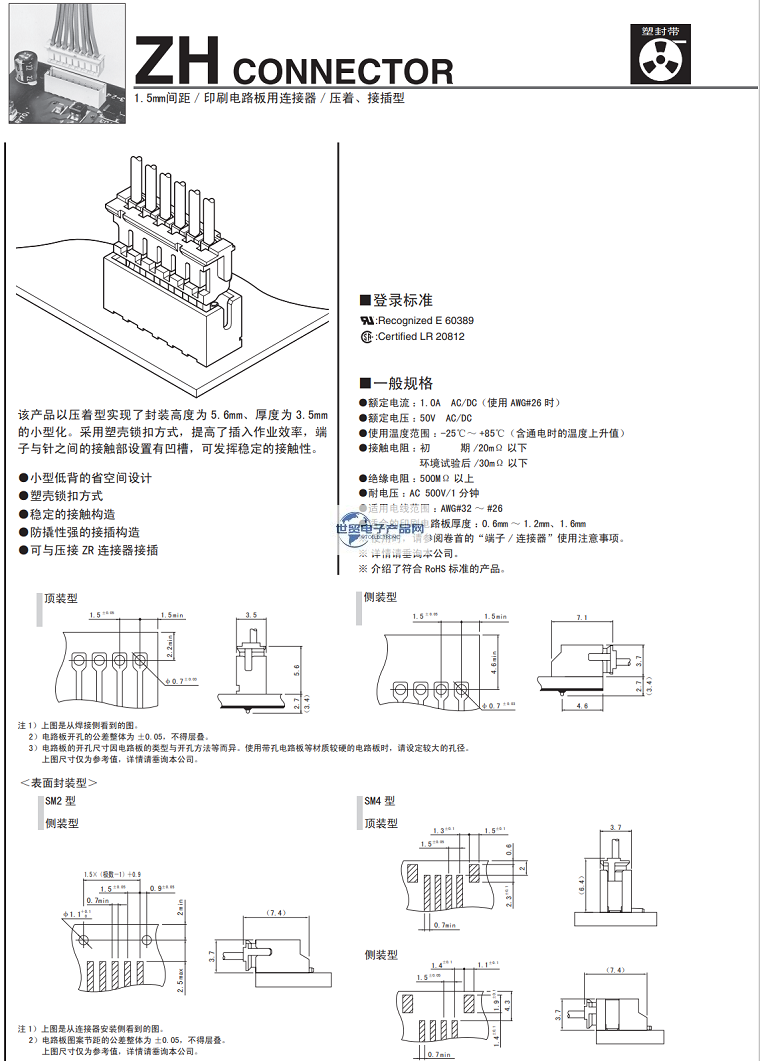

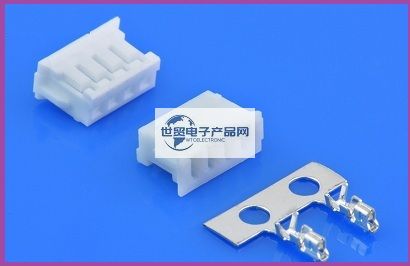

Compatible with/replacing JSTJST connectors Japanese press-on terminals ZH series connectors 2P ~ 15P1. 5mm pitch WTB connectors male and female sockets The product is a: 1.5 mm pitch/connector for printed circuit boards/press-on, plug-in type; This product is miniaturized with a package height of 5.6 mm and a thickness of 3.5 mm in a pressed type. The plastic case locking mode is adopted to improve the insertion operation efficiency, and the contact part between the terminal and the needle is provided with a groove, which can exert stable contact; Its main features are: small and low-back space-saving design, plastic case locking mode, stable contact structure, strong anti-prying connection structure, which can be connected with crimped ZR connector; Pitch: 1.5 mm, Pin position: 2 ~ 15P, product color: white, product material: PA66 UL94V-0/C5191, applicable wire: AWG # 26 ~ 32. [World Trade Electronic Products Network provides JSTJST connectors, Japanese pressed terminals, GH series connectors, 2P ~ 15P1. 25mm pitch, WTB connectors, male and female seat replacements].
---------------------------------------------------------------------------------------1. Compatible with/replacing JSTJST connectors ZH series connectors 2P ~ 15P1. 5mm pitch WTB connectors male and female seats Product related description and parameters:
| ZH CONNECTOR Series Details: | General electrical performance specifications of ZH CONNECTOR series: | |
| Type 1: | detachable type | ● Rated current: 1.0 A AC/DC (when using AWG # 26) |
| Type 2: | Crimp type, ultra-small | ● Rated voltage: 50V AC/DC |
| Spacing: | 1.5 | ● Operating temperature range:-25 ℃ ~ + 85 ℃ (including temperature increase when powered on) |
| Current: | 1.0A (AWG#26) | ● Contact resistance: initial/20 mΩ or less, after environmental test/30 mΩ or less |
| Features: | ● Insulation resistance: 500MΩ or more | |
| Category Name: | Press-on connector (wire-to-board type) | ● Withstand voltage: AC 500V/1 minute |
| Height: | 1.5 | ● Applicable wire range: AWG # 32 ~ # 26 |
| Voltage: | 50V | ● Suitable printed circuit board thickness: 0.6 mm ~ 1.2 mm, 1.6 mm |
| Thickness: | ||
| Description: | The plastic case locking mode is adopted, and the contact part between the terminal and the pin is provided with a groove, which can exert stable contact. Can be plugged into crimp ZR connectors. | |
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
--------------------------------------------------------------------------------3. Compatible/replacement JSTZH series connectors 2P ~ 15P1. 5mm pitch WTB connectors male and female seats Product material number/model list:
| S3B-ZR-SM4A-TF | B5B-ZR-3.4 | B5B-ZR | S8B-ZR-SM2-TF | S5B-ZR-3.4 |
| S5B-ZR-SM2-TF | S11B-ZR-SM4A-TF | B6B-ZR | S5B-ZR | S13B-ZR-3.4 |
| B4B-ZR | S7B-ZR-3.4 | S2B-ZR-SM2-TF | S4B-ZR-3.4 | B2B-ZR-SM4-TF |
| B10B-ZR-SM4-TF | B8B-ZR-SM4-TF | S11B-ZR | S8B-ZR-3.4 | S6B-ZR-3.4 |
| S4B-ZR-SM2-TF | S11B-ZR-3.4 | S13B-ZR-SM4A-TF | ZHR-12 | S5B-ZR-SM4A-TF |
| S10B-ZR-3.4 | S13B-ZR-SM2-TF | B12B-ZR-3.4 | ZHR-7 | S8B-ZR |
| B2B-ZR | S2B-ZR-3.4 | ZHR-9 | ZHR-13 | B8B-ZR |
| S3B-ZR | S8B-ZR-SM4A-TF | ZHR-2 | B3B-ZR-SM4-TF | S10B-ZR-SM4A-TF |
| B9B-ZR | B13B-ZR | B5B-ZR-SM4-TF | B4B-ZR-3.4 | B2B-ZR-3.4 |
| S12B-ZR-SM4A-TF | S9B-ZR-SM4A-TF | ZHR-10 | ZHR-4 | S6B-ZR-SM4A-TF |
| B11B-ZR-3.4 | S4B-ZR-SM4A-TF | ZHR-6(3.0) | B10B-ZR | B8B-ZR-3.4 |
| S2B-ZR-SM4A-TF | B7B-ZR-3.4 | S3B-ZR-SM2-TF | S7B-ZR | ZHR-5 |
| S9B-ZR | S9B-ZR-3.4 | S7B-ZR-SM4A-TF | SZH-003T-P0.5 | S12B-ZR-3.4 |
| S2B-ZR | B11B-ZR-SM4-TF | S10B-ZR-SM2-TF | SZH-002T-P0.5 | B4B-ZR-SM4-TF |
| B7B-ZR | B3B-ZR-3.4 | S11B-ZR-SM2-TF | B13B-ZR-3.4 | S6B-ZR |
| S4B-ZR | B9B-ZR-3.4 | S12B-ZR-SM2-TF | B11B-ZR | B7B-ZR-SM4-TF |
| B12B-ZR-SM4-TF | S12B-ZR | S6B-ZR-SM2-TF | ZHR-11 | B3B-ZR |
| B9B-ZR-SM4-TF | S3B-ZR-3.4 | S7B-ZR-SM2-TF | ZHR-8 | B13B-ZR-SM4-TF |
| S10B-ZR | B10B-ZR-3.4 | B6B-ZR-3.4 | ZHR-3 | ZHR-6 |
| B12B-ZR | S13B-ZR | S9B-ZR-SM2-TF | B6B-ZR-SM4-TF |
