Extremely Fine Coaxial Wire Harness-Production I-PEX20907-005E-01|0.35mm Pitch|#40-#46 Extremely Fine Coaxial Wire Harnesses

Categorization:Harness Component

Specializing in the sales of: Connectors | Wire Harness | Cable Products

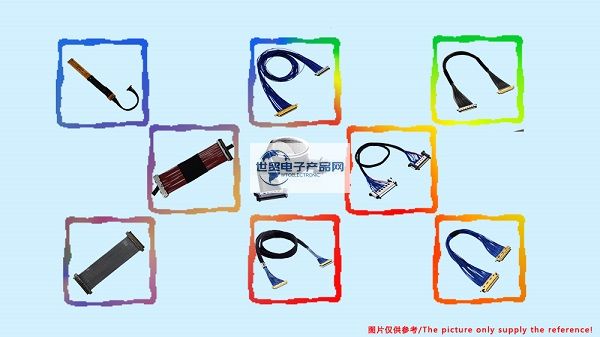

I-PEX20907-005E-01 Extremely Thin Coaxial Wiring Harness is a CABLINE ® -UY/20907 series manufactured by I-PEX with the material number of 20907 -005E-01 | contact spacing: 0.35mm Extremely Thin Coaxial Connector and compatible Extremely Thin Coaxial Wire (AWG): # 40 # 42 # 44 # 46 is a wire harness product assembled through a unique production process. Our company (World Trade Electronic Products Network) specializes in the production of ultra-thin coaxial wire harnesses-I-PEX20907-005E-01 | 0.35mm spacing | # 40- # 46 ultra-thin coaxial wire harness. The following picture shows the ultra-thin coaxial wire harness (Micro) produced by our company. Some pictures of Coaxial Cable harness assembly products (pictures are for reference only).

1、 I-PEX20907-005E-01 | 0.35 mm Pitch | 40awg-46awg | Connector Schematic, Specifications, and Features for Very Thin Coaxial Harness:

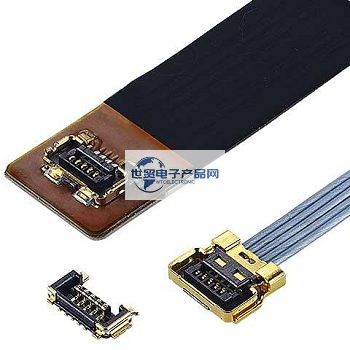

Very thin coaxial and FPC connectors with low mating height (mating height = 0.76 mm), narrow pitch (0.35 mm pitch), 90-degree outgoing vertical plug type
Small, low design for tight spaces
Excellent differential SI performance (PCIe Gen 5:32 GT/s)
Two types of male seats are available (terminal male seat and FPC SMT male seat *)
Contact spacing (mm): 0.350
Height: 0.82 Max (0.76 Nom.) ,
Available Pins: 5 10
AWG: # 40 # 42 # 44 # 46
Chimera Type: Vertical

-------------------------------------------------------------------------------------------------

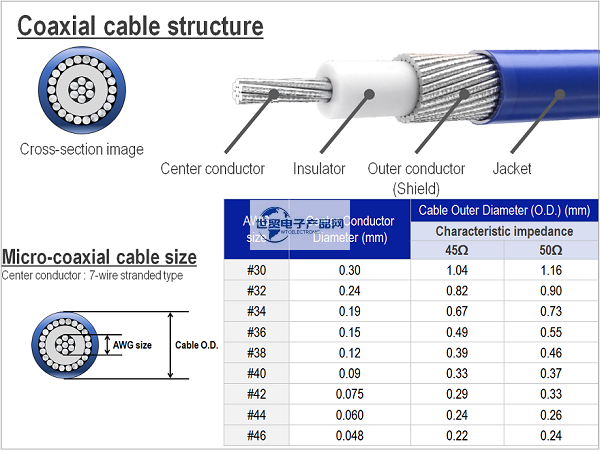

2、 I-PEX20907-005E-01 | 0.35 mm Pitch | 40awg-46awg | Fine Coaxial Wire for Fine Coaxial Harness Schematic and Specifications:

-------------------------------------------------------------------------------------------------

3、 that the ultra-thin coaxial wire harness produced by our company uses the material number or model of the ultra-thin coaxial wire connector of I-PEX Company as follows:

20907-005E-0120907-010E-0120847-020T-0120847-030T-0120847-040T-01
20680-020T-0120680-030T-0120680-040T-0120680-050T-0120680-060T-01
20878-030T-0120878-040T-0120634-210T-0220634-112T-0220634-120T-02
20634-130T-0220634-140T-0220634-150T-0220634-160T-0220454-220T
20454-230T20454-240T20454-250T-0120777-030T-0120777-040T-01
20532-030T-0220532-034T-0220532-040T-0220532-050T-0220974-040T-01
20373-R10T-0620373-R14T-0620373-R20T-0620373-R30T-0620373-R32T-06
20373-R35T-0620373-R40T-0620373-R50T-0620497-026T-3020497-032T-30
20497-040T-3020497-050T-3020473-030T-1020473-040T-1020346-010T-32R
20346-015T-32R20346-020T-32R20346-025T-32R20346-030T-32R20346-035T-32R
20346-040T-32R20438-030T-0120438-040T-0120438-050T-0120320-R30T-11
20320-R40T-1120320-050T-11

-------------------------------------------------------------------------------------------------

4、 How to purchase or learn about I-PEX20907-005E-01 | 0.35mm Pitch | # 40- # 46 Very Thin Coaxial Harness Assembly Products? :
