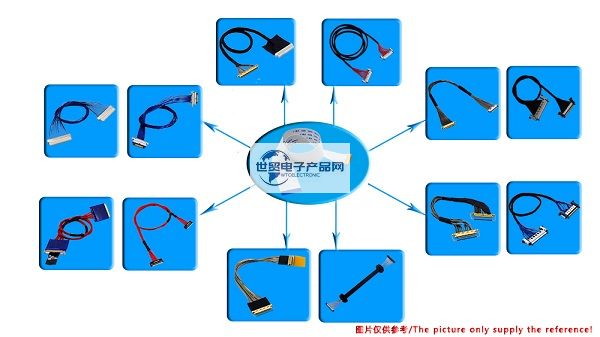

HTK LVC-D10LPMSG + Extremely Thin Coaxial Harness is a kind of LVC series produced by HTK (Japan Hondo Communications) with the material number of LVC-D10LPMSG + | contact spacing: 0.5mm Extremely Thin Coaxial Connector and Adaptable Extremely Thin Coaxial Wire (AWG): # 36 # 38 # 40 # 42 # 44 # 46 is a kind of wire harness product assembled through unique production process. Our company (World Trade Electronic Products Network) specializes in the production of ultra-thin coaxial wire harnesses-HTK LVC-D10LPMSG + | 0.5mm spacing | # 36- # 46 ultra-thin coaxial wire harness. The following picture shows the ultra-thin coaxial wire harness (Micro) produced by our company. Some pictures of Coaxial Cable harness assembly products (pictures are for reference only).

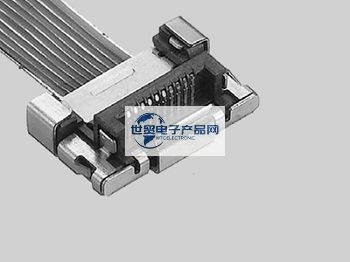

1、 HTK LVC-D10LPMSG + | 0.5mm pitch | 36awg-46awg | Connector schematic diagram, specifications and features used for very thin coaxial harness:

LVC series 0.5mm pitch connectors are used for interconnection between PC and LCD via thin wire coaxial cable.
Features
• Supports high-speed data transmission.
• Board-to-cable applications for high density packaging.
• Enable as much high-speed data transmission as possible by reducing propagation skew.
• Low profile allows for reduced installation space.
• Pulse heat welding technology is used to minimize cable damage during connection.
Application
PCs, LCD inverter, LCD interface
General electrical performance
Rated voltage: 50 V AC
Rated current: 0.3 A/pin
Insulation resistance: over 100 megohms at 250V DC
Dielectric withstand voltage: 150V AC (R. M. S.) for up to 1 minute

-------------------------------------------------------------------------------------------------

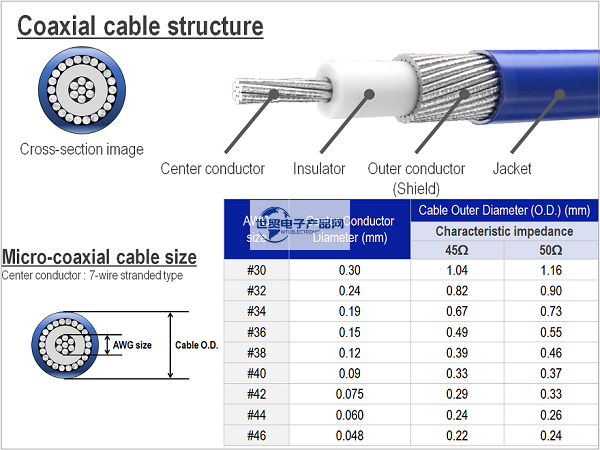

2、 HTK LVC-D10LPMSG + | 0.5mm pitch | 36awg-46awg | Schematic diagram and specification parameters of ultra-thin coaxial wire used for ultra-thin coaxial harness:

-------------------------------------------------------------------------------------------------

3、 that the ultra-thin coaxial wire harness produced by our company uses the material number or model of the ultra-thin coaxial wire connector of HONDA (Benduo Communication) Company as follows:

LVC-D10LPMSG+LVC-D10SFYG+LVC-C20LPMSG+LVC-D20LPMSG+LVC-D20SFYG3+
LVC-C30LPMSG+LVC-C30SFYG+LVC-C40SFYG+LVC-C40LPMSG+LVD-A30LMSG+
LVD-A30SFYG+LVD-A30SFYG-TPLVD-A50LMSG+LVD-A50SFYG+LVD-A40LMSG+
LVD-A40SFYG+LVX-A40LMSG+LVX-A40SFYG+LVX-A30LMSG+LVX-A30SFYG+

-------------------------------------------------------------------------------------------------

4、 how to buy or know HTK LVC-D10LPMSG + | 0.5mm pitch | # 36- # 46 very thin coaxial harness assembly products? :
