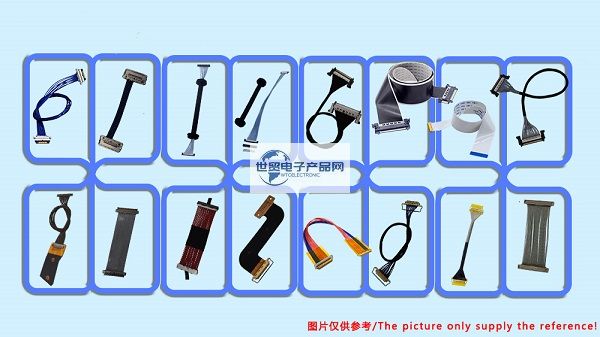

JAE FI-JW40C Very Thin Coaxial Harness is one of FI-JW series manufactured by JAE (Japan Avionics) with the material number of FI-JW40C | contact spacing: 0.3mm very thin coaxial connector and adaptable very thin coaxial wire (AWG): # 42 # 44 # 46 is a kind of wire harness product assembled through unique production process. Our company (World Trade Electronic Products Network) specializes in the production of very thin coaxial wire harness-JAE (Japan Aviation Electronics) FI-JW40C | 0.3mm spacing | # 42- # 46 very thin coaxial wire harness. The following picture shows the very thin coaxial wire harness (Micro Coaxial) produced by our company Cable) Some pictures of harness assembly products (pictures are for reference only).

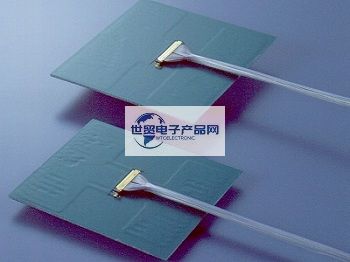

1、 JAE FI-JW40C | 0.3mm pitch | 42awg-46awg | Connector schematic diagram, specifications and features used for very thin coaxial harness:
| Recently, portable devices have become more compact and slim, and there is a need for a connector that takes up less mounting space and has a more compact thin coaxial wire plug side that can be passed through a very small diameter hinge after the wiring harness is assembled. The FI-JW series is a compact, low profile connector with a plug that allows the harness to be assembled through a very small diameter hinge. |
| Features |
| The plug side can pass through a hole with a diameter of 3.7 mm. Hinge (40 Pos.) After harness assembly. AWG #42)。 |
| The fit is 3.2 mm deep by 17.3 mm wide (40 lb.) The height has reached 1.65mm. |
| A stable connection is achieved with an effective contact length of 0.35 mm. |
| A low contact resistance is achieved on the gold-plated grounding contacts of the plug and socket. |
| Contains a mismatch prevention key. |
| There are 6 ground contacts between the plug and the receptacle for enhanced noise immunity. |
| Applicable wire: compatible with AWG # 44 and # 42 thin coaxial wire. |
| Support automatic installation, with socket embossing belt. |
| Solder migration prevention structure with nickel barrier on socket. |
-------------------------------------------------------------------------------------------------

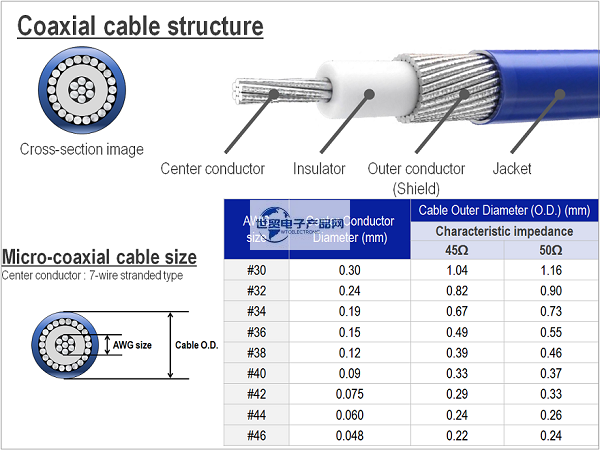

2、 JAE FI-JW40C | 0.3mm Pitch | 42awg-46awg | Schematic diagram and specifications of the very thin coaxial wire used in the very thin coaxial harness:
-------------------------------------------------------------------------------------------------
3、 the material number or model of the JAE (Japan Aviation Electronics) ultra-thin coaxial line connector used in the ultra-thin coaxial harness produced by our company is as follows:
| HD1P040MA1R6000 | HJ1P050MA1R6000 | FI-RC3-1A-1E-15000 | FI-RC3-1B-1E-15000 | FI-RE21CL |
| FI-RE31CL | FI-RE41CL | FI-RE51CL | FI-X30HL-B | FI-JZ50C-R6000 |
| FI-JW30C | FI-JW40C | FI-JW34C | FI-JW50C | FI-J30C5-T3000 |
| FI-J40C5-T3000 | FI-X30C-NPB | FI-X30MR-NPB | FI-X30M-NPB | FI-X30MA1 |
-------------------------------------------------------------------------------------------------
4、 How to buy or know JAE FI-JW40C | 0.3mm Pitch | # 42- # 46 Very Thin Coaxial Harness Assembly Products? ：
