Overview of HYDIS 10.4 "inch LCD screen model and matching EDP wiring harness and connector:

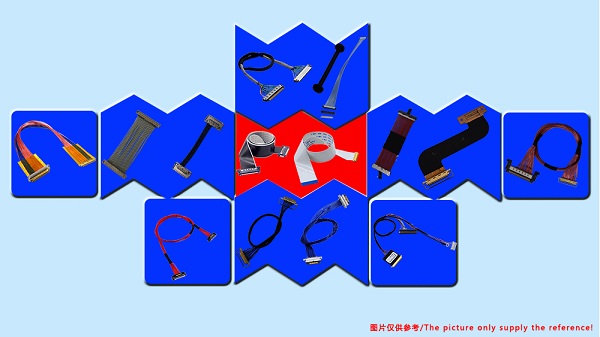

HYDIS 10.4 "inch LCD screen whose signal connector is EDP connector LCD screen models are: HT10X21-100, HT10X21-200, HT10X21-301, HT10X21-311, HT10X21-331, HV104X01-100, HX104X01-200, HX104X01-201, HX104X01-210, HX104X01-211, HX104X02-100, HX104X02-102, HX104X02-100, HX104X03-101, HX104X02-102, HX104X03-101, etc. EDP connector models of LCD screen modules used with them include: 20455-030E-02, DF19L-14P-1H, FI-XB30S-HF10, etc. Our company (World Trade Electronic Products Network) specializes in the production of customized HYDIS 10.4 "inch LCD screen EDP drive screen wiring harnesses and the sales of LCD screen signal modules and backlight connectors. At the same time, we can customize and produce various LCD screen drive screen EDP wiring harnesses and other supporting wiring harnesses according to the connector model/brand, wire length, contact definition, packaging method, etc. Customize the production of various LCD screen drive screen EDP wiring harnesses. The picture below is our company's solution for using HYDIS 10.4" inch LCD screen and various other brand specifications of LCD screen/industrial company some physical pictures of LCD screen EDP drive screen wiring harness products (pictures are for reference only).
-------------------------------------------------------------------------------------------------
2. HYDIS 10.4 "inch LCD screen model and matching EDP connector sales brief description and list details:

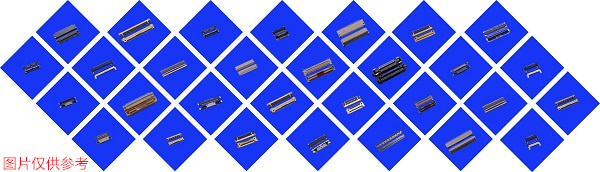

World Trade Electronic Products Network is a sales platform for producing and selling connector harness and cable products jointly developed and established by Suzhou Huichengyuan Electronic Technology and a number of connector harness and cable manufacturers; We can provide you with HYDIS 10.4 "inch LCD screen signal module connectors, backlight connectors and related supporting LCD screen connectors in one stop. We are involved in 60 + LCD screen connector brand manufacturers as agents/sales, including The main brands covered are: I-PEX (Japan's No.1 Seiko) JAE (Avionics) HRS (Hirose Electric) MOLEX (MOLEX) JST (Japan Voltage Terminal) Kyocera Elco (Kyocera) Starconn (Qingliang) STM (Xinsheng Seiko), etc.; The picture below shows some physical pictures of the LCD screen connector products represented/sold by our company and the details of the related list of EDP connectors matching the HYDIS 10.4 "inch LCD screen model (the pictures and table contents are for reference only).
| LCD module model | Dimensions | Module signal interface model | Brief Description of LCD Module |
| HT10X21-100 | 10.4" | DF19L-14P-1H | HT10X21-100 is a 10.4-inch liquid crystal module product using a-Si TFT-LCD technology |
| HT10X21-200 | 10.4" | DF19L-14P-1H | HT10X21-200 is a 10.4-inch a-Si TFT-LCD liquid crystal module product |
| HT10X21-301 | 10.4" | DF19L-14P-1H | HT10X21-301 is a 10.4-inch liquid crystal module product with a-Si TFT-LCD technology |
| HT10X21-311 | 10.4" | DF19L-14P-1H | HT10X21-311 is a 10.4-inch liquid crystal module product using a-Si TFT-LCD technology |
| HT10X21-331 | 10.4" | DF19L-14P-1H | HT10X21-331 is a 10.4-inch a-Si TFT-LCD liquid crystal module product |
| HV104X01-100 | 10.4" | DF19L-14P-1H | HV104X01-100 is a 10.4-inch a-Si TFT-LCD liquid crystal module product |
| HX104X01-200 | 10.4" | DF19L-14P-1H | The HX104X01-200 is a 10.4-inch liquid crystal glass product with a-Si TFT-LCD technology |
| HX104X01-201 | 10.4" | DF19L-14P-1H | HX104X01-201 is a 10.4-inch a-Si TFT-LCD liquid crystal glass product |
| HX104X01-210 | 10.4" | FI-XB30S-HF10 | HX104X01-210 is a 10.4-inch liquid crystal module with a-Si TFT-LCD technology |
| HX104X01-212 | 10.4" | 20455-030E-02 | HX104X01-212 is a 10.4-inch liquid crystal module product using a-Si TFT-LCD technology |
| HX104X01-211 | 10.4" | 20455-030E-02 | HX104X01-211 is a 10.4-inch liquid crystal glass product with a-Si TFT-LCD technology |
| HX104X02-100 | 10.4" | 20455-030E-02 | HX104X02-100 is a 10.4-inch a-Si TFT-LCD liquid crystal module product |
| HX104X02-101 | 10.4" | 20455-030E-02 | HX104X02-101 is a 10.4-inch liquid crystal glass product with a-Si TFT-LCD technology |
| HX104X02-102 | 10.4" | 20455-030E-02 | HX104X02-102 is a 10.4-inch liquid crystal module with a-Si TFT-LCD technology |
| HX104X01-100 | 10.4" | DF19L-14P-1H | HX104X01-100 is a 10.4-inch liquid crystal module product using a-Si TFT-LCD technology |
| HX104X03-100 | 10.4" | 20455-030E-02 | HX104X03-100 is a 10.4-inch a-Si TFT-LCD liquid crystal module product |
| HX104X03-101 | 10.4" | 20455-030E-02 | HX104X03-101 is a 10.4-inch liquid crystal glass product with a-Si TFT-LCD technology |
-------------------------------------------------------------------------------------------------
3. How to purchase or understand the EDP drive screen wiring harness and connector products customized by HYDIS 10.4 "inch LCD screen? ：
