Bellwether(贝尔威勒) 80148-3281 M.2 interface 3.2H connector related description:
Bellwether 80148-3281 is an M.2 - Standard (SMT) interface connector designed specifically for industrial control and embedded systems. Its excellent electrical performance and compact structure enable it to perform stably in a variety of complex environments. This model connector has 67 pins, a 0.5mm pin spacing, and uses a Key A guiding structure, compatible with M.2 modules such as Wi-Fi, Bluetooth, and SSD. The center height is 1.94mm, with a total height of only 3.2mm, perfectly matching high-density PCB designs.
It supports a maximum current of 0.5A and has passed 60 insertion and removal tests to ensure reliability in actual use. The product adopts SMT mounting structure for convenient mass welding and installation, enhancing production efficiency. The 80148-3281 not only takes into account size and performance but also reflects Bellwether's strict quality control system, making it an ideal choice for high-quality connections in industrial equipment.

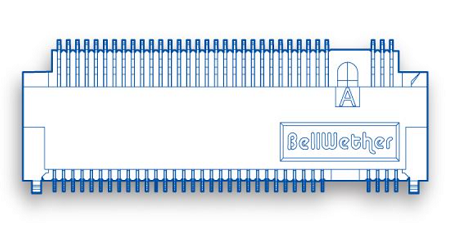

Bellwether80148-3281M.2 interface 3.2HConnectorProduct drawings:
Bellwether80148-328X M.2 interface 3.2HConnectorProduct material number tail meaning:
x = Different Packing Specification (Tape & Reel)
* Contact Plating
1=Gold Flash
2=Gold Plated, 5u”
3=Gold Plated, 10u”
4=Gold Plated, 15u”
5=Gold Plated, 30u”
Bellwether80148-328* M.2 interface 3.2HConnector product material number details:
80148-3281，80148-3282，80148-3283，80148-3284，80148-3285
How to purchase or learn about the Bellwether 80148-3281 M.2 interface 3.2H connector product?
Suzhou Huichengyuan Electronics Technology Co., Ltd.-Agent for the sale of Bellwether(贝尔威勒) 80148-3281 M.2 interface 3.2H connector products; If you want to purchase or learn more about Bellwether(贝尔威勒) connectors, cable products, and solutions, please contact them through the following methods.
Contact: Manager Zhang, Mobile: 18913228573(WeChat same number), Email: King_Zhang@LPMconn.com, Tel: 0512-36851680, QQ: 2991550717
Address: No. 2 Yongran Road, Zhangpu Town, Kunshan City, Suzhou Province
