Categorization：Replacement Connector
Bellwether(贝尔威勒) 80888-1021 DDR4 4.0H connector related description:

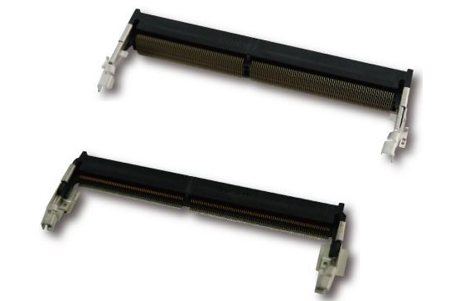

The Bellwether product model is the DDR4 SODIMM 4.0H memory module connector with part number 80888-1021, which occupies an important position in the market due to its efficient and stable performance and strong durability. It adopts a standard 260-pin design with a pitch of 0.5mm, ensuring efficient data transmission and stable performance. The maximum current of this product is 0.5A, suitable for applications with high current loads. The terminal material is made of copper alloy, which can effectively reduce contact resistance and improve electrical performance. In addition, the temperature range of the Bellwether DDR4 SODIMM 4.0H connector is from -40℃ to 85℃, allowing it to work in extreme environments, greatly enhancing its application range in industrial, communication, and electronic equipment.

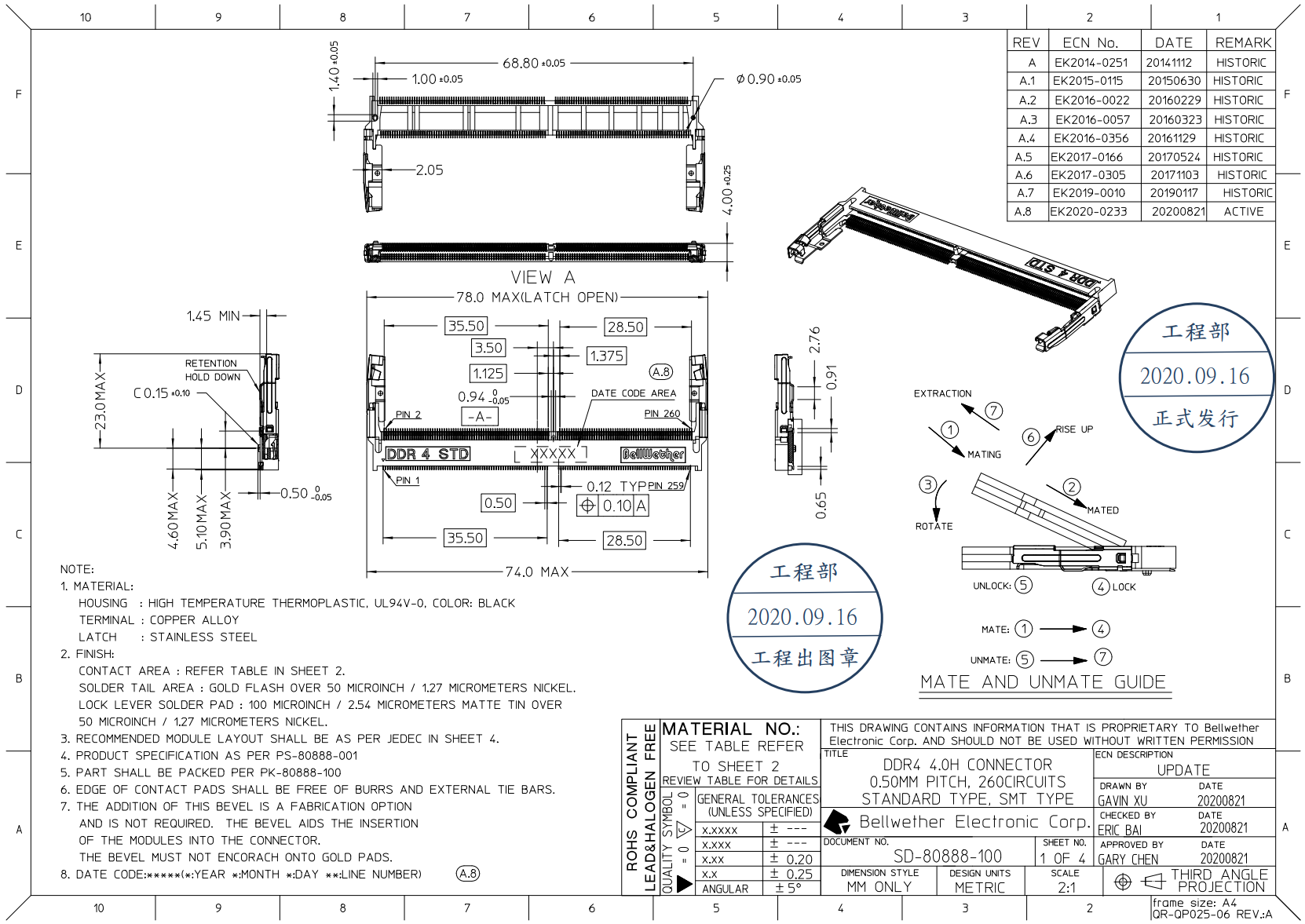

Bellwether80888-1021 DDR4 4.0H connectorProduct drawings:
Bellwether 80888-1021DDR4 4.0H connectorProduct material number tail椎interpretation:
x = Different Packing Specification (Tape & Reel)
* Contact Plating
1=Gold Flash
2=Gold Plated, 5u”
3=Gold Plated, 10u”
4=Gold Plated, 15u”
5=Gold Plated, 30u”
BellwetherDDR4 4.0HConnector product material number details:
80886-1021，80886-1121，80888-1021，80888-1121
How to purchase or learn about the Bellwether 80888-1021 DDR4 4.0H connector product?
Suzhou Huichengyuan Electronic Technology Co., Ltd. - agent for the sale of Bellwether (Belleville) 80888-1021 DDR4 4.0H connector products; If you want to purchase or learn more about Bellwether (Belleville) connectors, harness products and solutions, please contact them through the following methods.
Contact person: Zhang Manager, Mobile: 18913228573 (WeChat number), Email: King_Zhang@LPMconn.com, Phone: 0512-36851680, QQ: 2991550717
Address: No. 2 Yongran Road, Zhangpu Town, Kunshan City, Suzhou Province
