Categorization：Replacement Connector
HRS|Hirose|Hirose FX15 Series 1.0mm Pitch Extreme Coaxial Connector is a: 1mm pin pitch, wire-to-board connector, extreme coaxial connector supporting LVDS signals.
1, Japan HRS | Hirose | Japan Hirose FX15 series 1.0mm pitch very fine coaxial connectors Specifications and Features:
1mm pin pitch, wire-to-board connector, supports LVDS signals
1. Space saving
2. Equal length transmission lines
3. Various configurations with and without shielding allow for greater design flexibility and lower costs.
4. Self-calibration and self-direction
5. Safe and fully pluggable design
6. FX15S well shielded (enhanced)
7. Lead-free certification
2, Japan HRS | Hirose | Japan Hirose FX15 Series 1.0mm Pitch Extremely Fine Coaxial Connector Product Image:
3, Japan HRS | Hirose | Japan Hirose FX15 Series 1.0mm Pitch Extremely Fine Coaxial Connectors Material Number / Model Number Details:
| FX15S-31S-0.5SH(11) | FX15-31S-0.5SV(30) | FX15S-31P-C | FX15S-51P-0.5SD | FX15SC-41S-0.5SV |
| FX15-2830PCFB | FX15M-21P-C | FX15S-31S-0.5SH | FX15S-51P-C | FX15SC-41S-0.5SV(30) |
| FX15-3032PCFA | FX15M-21S-0.5SH | FX15S-31S-0.5SH(30) | FX15S-51P-GND | FX15SC-51S-0.5SH |
| FX15-3032PCFB | FX15M-21S-0.5SH(30) | FX15S-41P-0.5SD | FX15S-51P-GND(A) | FX15SC-51S-0.5SH(30) |
| FX15-3032PCFB(01) | FX15M-31P-C | FX15S-41P-C | FX15S-51S-0.5SH | FX15SC-51S-0.5SV |
| FX15-31P-C | FX15M-31S-0.5SH | FX15S-41P-GND | FX15SC-41S-0.5SH | FX15SC-51S-0.5SV(30) |
| FX15-31S-0.5SV | FX15M-31S-0.5SH(30) | FX15S-41S-0.5SH | FX15SC-41S-0.5SH(30) | FX15SW-31P-C |

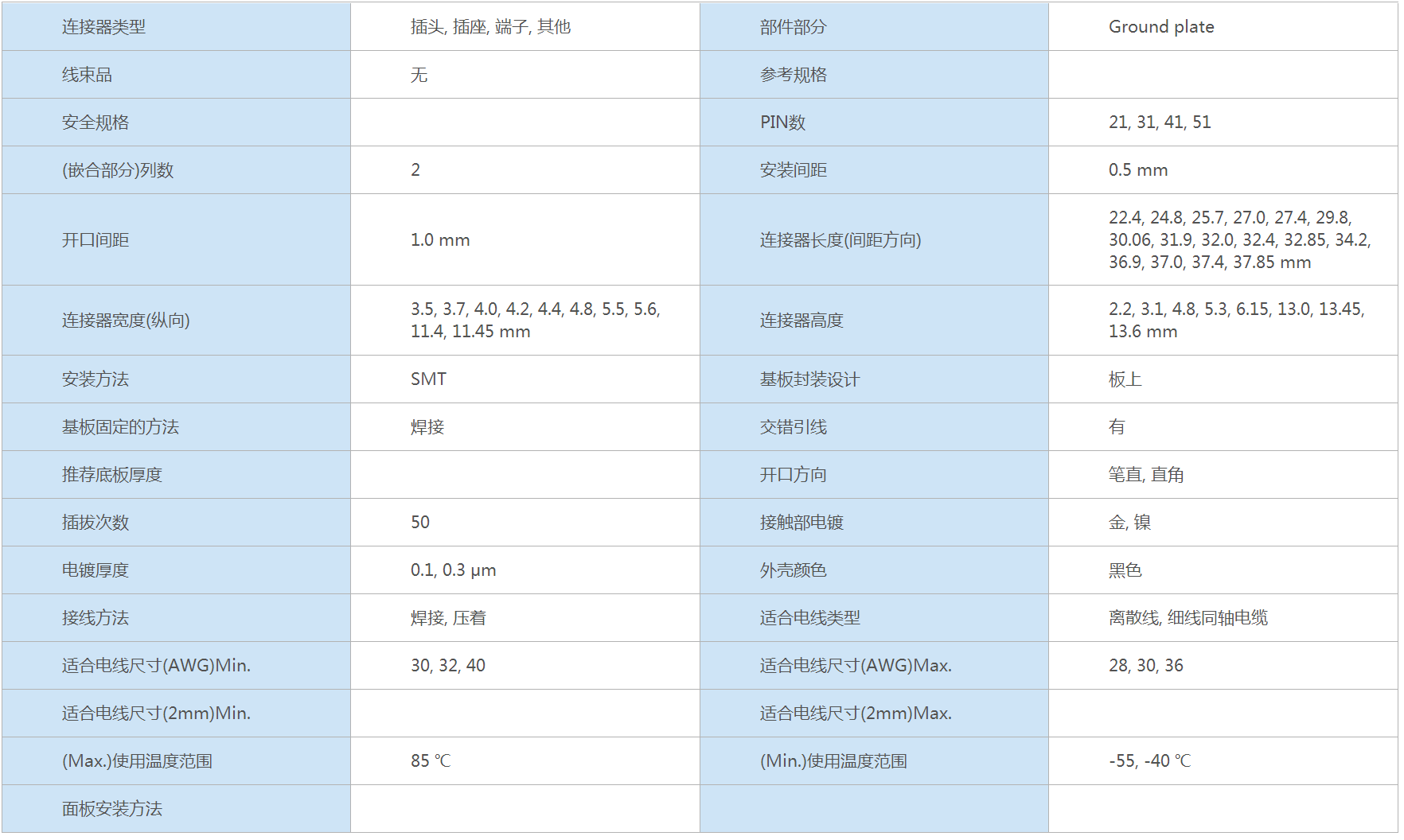

4, Japan HRS | Hirose | Japan Hirose FX15 series 1.0mm pitch very fine coaxial connector Specifications reference table:
5、Japan HRS|Hirose|Japan Hirose FX15 Series 1.0mm Pitch Extremely Fine Coaxial Connector This product seller:
Agent sales [Japan HRS | Hirose | Japan Hirose FX15 series very fine coaxial connectors] and material number / model number in the details of the table list of all connector products; if you want to buy or know what we can provide connectors | wiring harness | wire and cable products solutions, welcome to contact us through the following way.
