Categorization：Replacement Connector

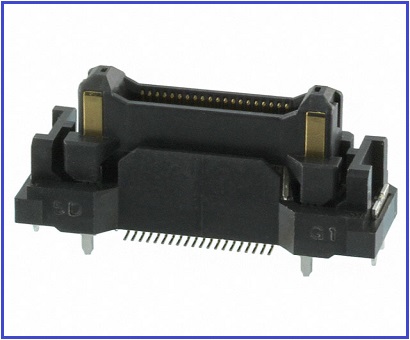

Compatible/Replacement HRS|Hirose|Hirose|Hirose Connectors|FX23-40P-0.5SV Board-to-Board Connector is a: FX23 0.5mm pin pitch floating board-to-board connector supports high current rating and high speed transmission. High-speed transmission of up to 8Gbps (larger values) is supported by an innovative contact design to ensure impedance matching.The FX23 series features a hybrid construction with power and signal contacts. Each of the four built-in power contacts can carry 3A rated current, and each of the signal contacts can carry 0.5A current. [Offer HRS|Hirose|Hirose|Hirose Connectors|FX23-40P-0.5SV Board-to-Board Connector Replacement].
------------------------------------------------------------------------------------------------
1, Compatible / Replacement Hirose | HRS | Hirose Connectors | FX23-40P-0.5SV Board-to-Board Connectors Product Specifications and Parameters.
| Product Properties | attribute value |
| Manufacturer. | Hirose Electric |
| Product Category. | Board-to-Board and Mezzanine Connectors |
| Products. | Headers |
| Number of Positions. | 40 Position |
| Pitch. | 0.5 mm |
| Termination Type. | Solder |
| Mounting Angle. | Vertical |
| Current rating. | 500 mA |
| Voltage rating. | 50 VAC |
| Minimum Operating Temperature. | - 55 C |
| Higher Operating Temperature. | + 105 C |
| Contact Plating. | Gold |
| Contact Material. | Copper Alloy |
| Housing material. | Polyamide (PA) |
| Series. | FX23 |
| Packaging. | Tray |
| Trademark. | Hirose Connector |
| Insulation resistance. | 100 MOhms |
| Product Type. | Board to Board & Mezzanine Connectors |
| Subcategories. | Board to Board & Mezzanine Connectors |
| Trademark Name. | FunctionMAX |
| Part No. Alias. | 5733002300 |
| Unit weight. | 1.260 g |
------------------------------------------------------------------------------------------------

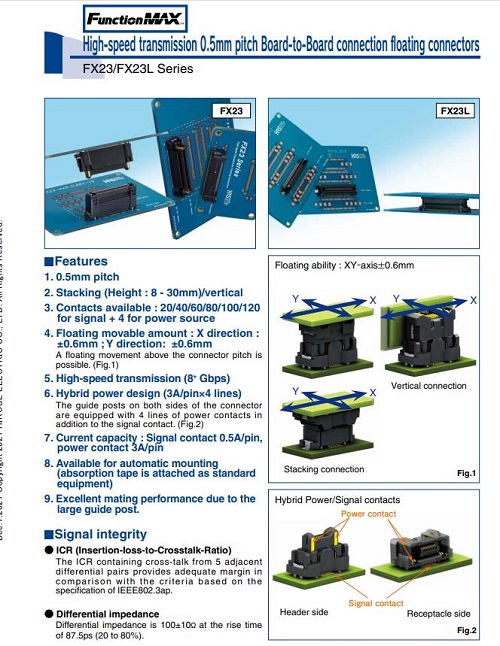

2, Compatible / Alternative Hirose|HRS|Hirose Connectors|FX23-40P-0.5SV Board-to-Board Connector Product Specification:
------------------------------------------------------------------------------------------------
3, Compatible / Replacement Hirose | HRS | Hirose Connectors | FX23-40P-0.5SV Board-to-Board Connectors Product Part Number / Model Number List:
| DF62C-2S-2.2C | DF62C-6S-2.2C | DF62C-24S-2.2C | DF62B-4EP-2.2C | DF62B-7EP-2.2C |
| DF62C-3S-2.2C | DF62C-7S-2.2C | DF62B-2EP-2.2C | DF62B-5EP-2.2C | DF62B-13EP-2.2C |
| DF62C-4S-2.2C | DF62C-13S-2.2C | DF62B-3EP-2.2C | DF62B-6EP-2.2C | DF62B-24EP-2.2C |
| DF62C-5S-2.2C |
------------------------------------------------------------------------------------------------
4, Board-to-Board Connector - Provide compatible HRS|FX23-20P-0.5SV Board-to-Board Connector Replacement This product seller:
Board-to-Board Connectors - Compatible HRS|FX23-40P-0.5SV Board-to-Board Connector Alternative] and specializes in the agency / production / sales of a variety of {connectors | harnesses | wires and cables}; if you want to buy or understand what we can provide connectors | harnesses | wires and cables product solutions, welcome to contact us through the following way.
