Categorization：Replacement Connector

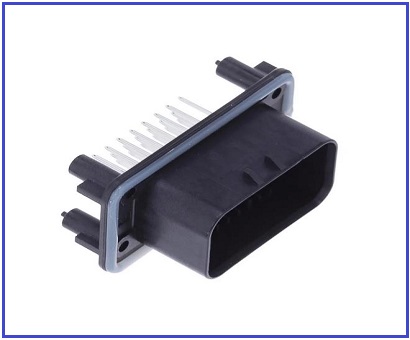

Compatible/Replacement TE|Tyco|Tyco Connectors|776228-1 Automotive Connectors are a: Automotive connectors utilize a 2.54mm center wire for motor vehicle applications where vibration and mechanical stress are high.TE Connectivity MQS offers the benefits of existing contactor systems, including high packing density, high current carrying capacity, robust design, and safe operation. Socket contacts and pin contacts insert securely into the contact cavity and provide a crisp click when locked. The socket engages four contacts on the 0.63 x 0.63mm pin contact and achieves a current carrying capacity of up to 7.5A C at 80°C. Micro Power Quadlok and Power Quadlok Systems have expanded the MQS contact family and added valuable features. Quadlok features a 5.08mm center wire with a higher current carrying capacity of 34A or 25A. Power Quadlok features a 7.62mm center wire with a current carrying capacity of 45A or 30A. TE Connectivity MQS 1.5mm is suitable for hermetically sealed and unsealed applications. The MQS 1.5mm can be used with the MQS, Micro Quadlok, and Power Quadlok to provide secondary locking at a common level. TE|Tyco|Tyco Connectors|776228-1 Automotive Connector Replacement].
------------------------------------------------------------------------------------------------
1, Compatible / Alternative TE|Tyco|Tyco Connector|776228-1 Automotive Connector Product Specifications and Parameters.
| Product Properties | attribute value |
| Manufacturer. | TE Connectivity |
| Product Category. | Automotive Connectors |
| Products. | Headers |
| Number of Positions. | 23 Position |
| Pitch. | 4 mm |
| Model: 1 | Pin (Male) |
| Mounting Style. | Through Hole |
| Termination Type. | Solder Pin |
| Contact Plating. | Tin |
| Wire Gauge Min. | 20 AWG |
| Gauge larger values: | 16 AWG |
| Colors. | Black |
| Series. | AMPSEAL |
| Applications. | Power, Signal |
| Trademark. | TE Connectivity |
| Contact Type. | Pin (Male) |
| Contact Material. | Brass |
| Contact Type. | Pin |
| Current rating. | 8 A |
| Description/Function. | AMPSEAL, Automotive Headers |
| Flammability Class. | UL 94 V-0 |
| Entrance protection. | IP6K9K |
| Length. | 60.8 mm |
| Material. | Plastic |
| Higher Operating Temperature. | + 105 C |
| Minimum Operating Temperature. | - 40 C |
| Mounting Angle. | Straight |
| Exclusions: 1 | 3 Row |
| Product Type. | Automotive Connectors |
| Subcategories. | Automotive Connectors |
| Voltage rating. | 250 VAC |
| Width. | 32.1 mm |
| Unit weight. | 23.100 g |
------------------------------------------------------------------------------------------------

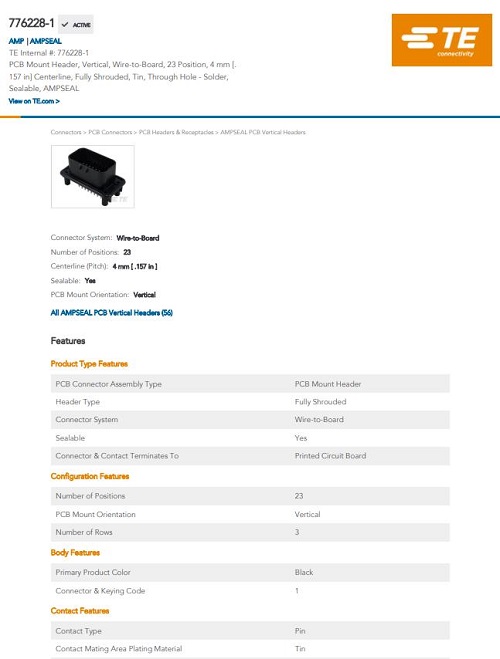

2, Compatible / Alternative to TE|Tyco|Tyco Connectors|776228-1 Automotive Connectors Product Specification:
------------------------------------------------------------------------------------------------
3, Compatible / alternative TE | Tyco | Tyco Connectors | 776228-1 Automotive Connectors Product Part Number / Model Number List:
| 4-1418448-2 | 1-1564520-1 | 1-1703808-1 | 1703838-2 | 1418507-2 |
| 1-1418448-1 | 2-1564520-1 | 2-1703808-1 | 1564562-1 | 1379029-1 |
| 2-1418448-1 | 1-1564516-1 | 1-1703818-1 | 1564562-2 | 953697-1 |
| 3-1418448-1 | 2-1564516-1 | 2-1703818-1 | 1564411-1 | 1-1718333-1 |
| 4-1418448-1 | 1-1564416-1 | 1-1703843-1 | 1564411-2 | 1-967570-3 |
| 1-1564526-1 | 2-1564416-1 | 2-1703843-1 | 1670150-1 | 1-967627-1 |
| 2-1564526-1 | 1-1564512-1 | 1-1670730-1 | 1563110-1 | 1-967629-1 |
| 1-1564412-1 | 2-1564512-1 | 1-1703841-1 | 1670865-1 | 776231-1 |
| 2-1564412-1 | 1-1703820-1 | 2-1703841-1 | 1554461-2 | 776228-1 |
| 1-1564407-1 | 2-1703820-1 | 1-1703839-1 | 213894-2 | 776267-1 |
| 2-1564407-1 | 1-1703773-1 | 2-1703839-1 | 174929-1 | 6437288-3 |
| 1-1564528-1 | 2-1703773-1 | 1703838-1 | 1-2112757-1 | 6437288-1 |
| 2-1564528-1 |
------------------------------------------------------------------------------------------------
4, Automotive Connectors - Provide Compatible TE|776228-1 Automotive Connector Replacement This product seller:
We are a professional distributor of automotive connectors - TE776228-1 and specialize in the distribution of all kinds of connectors, wiring harnesses and cables. If you would like to buy or find out more about the connectors, wiring harnesses and cables that we have to offer, please feel free to contact us through the following channels.
