Categorization：Replacement Connector

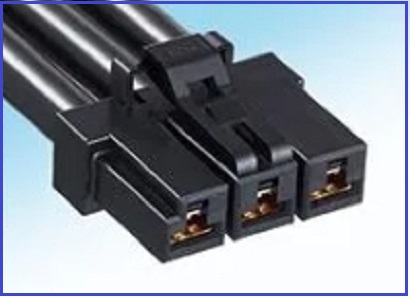

Compatible/Replacement HRS|DF60A-2S-10.16C power connector is a: wire-to-board connector with a small footprint and current-carrying capacity of up to 40 A. The Hirose DF60 wire-to-board connector also offers a robust mating with a clear tactile click and highly reliable 5-point contact (with individual contact springs). DF60 connectors are available in a variety of connection styles, including straight, right angle, and in-line connections, and keyed models are also available.The DF60 series connectors accept AWG 8 to 12 gauge cable, are RoHS compliant, and are in the process of obtaining UL and TUV approvals. Replacement HRS|DF60A-2S-10.16C power connectors are available.
------------------------------------------------------------------------------------------------
1, Compatible/Replacement HRS|DF60A-2S-10.16C Power Connector Product Related Attributes:
| Product Properties | attribute value |
| Manufacturer. | Hirose Electric |
| Product Category. | Power to Board |
| Product Type. | Power to the Board |
| Contact Type. | Socket (Female) |
| Current rating. | 65 A |
| Voltage rating. | 1 kV |
| Number of Positions. | 2 Position |
| Mounting Style. | Cable Mount / Free Hanging |
| Termination Type. | Crimp |
| Pitch. | 10.16 mm |
| Series. | DF60 |
| Packaging. | Bulk |
| Trademark Name. | EnerBee |
| Trademark. | Hirose Connector |
| Contact Material. | Copper |
| Contact Plating. | Gold |
| Shell color. | Black |
| Housing material. | Polybutylene Terephthalate (PBT) |
| Insulation resistance. | 1000 MOhms |
| Maximum working temperature. | + 105 C |
| Minimum Operating Temperature. | - 55 C |
| Mounting Angle. | Straight |
| Exclusions: 1 | 1 Row |
| Products. | Sockets |
| Factory Packing Quantity. | 100 |
| Subcategories. | Power Connectors |
| Wire Gauge Max. | 8 AWG |
| Wire Gauge Min. | 12 AWG |
| Wire Gauge Range. | 12 AWG to 8 AWG |
| Part No. Alias. | 680-3059-0-00 |
| Unit weight. | 3.770 g |
------------------------------------------------------------------------------------------------

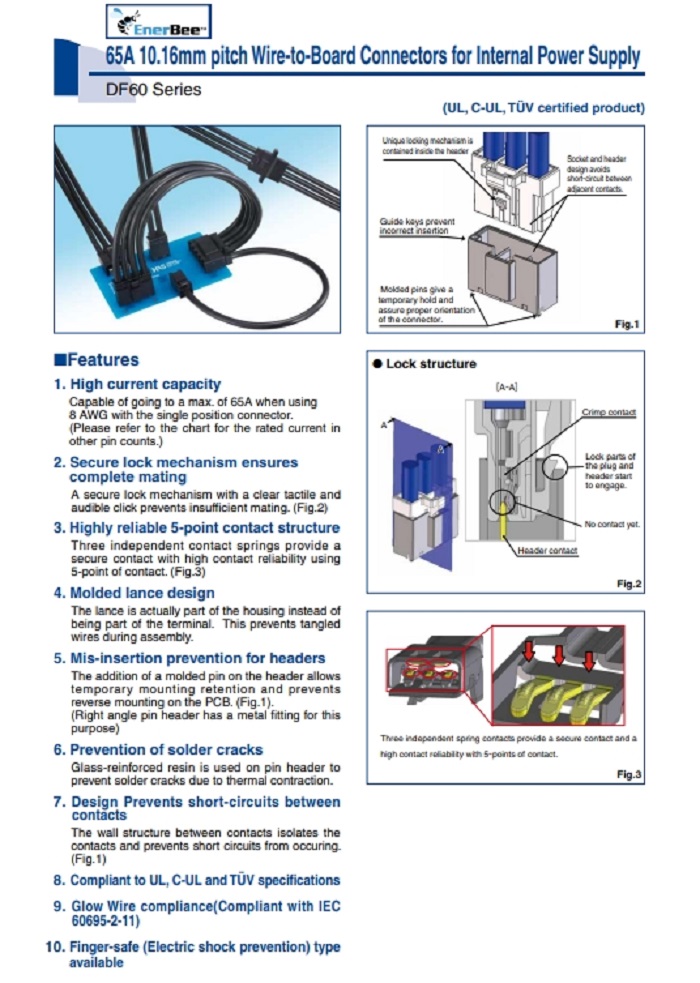

2, Compatible/Replacement for HRS|DF60A-2S-10.16C Power Connector Product Specification:
------------------------------------------------------------------------------------------------
3, Compatible / Alternative HRS | DF60A-2S-10.16C Power Connector Product Part Number / Model Number List:
| DF60A-1S-10.16C | DF60A-2S-10.16C | DF60A-3S-10.16C | DF60A-4S-10.16C |
------------------------------------------------------------------------------------------------
