Categorization：Replacement Connector
Compatible/Replacement for TE|3-1670894-1 Automotive Connector is a: Female Terminal Shell, Wire-to-wire, 8 pos, 0.236 in [6 mm] Centerline, Sealable, Black, Wire and Cable, Heavy Duty Sealed Connector Series [Replacement for TE|3-1670894-1 Automotive Connector available].
------------------------------------------------------------------------------------------------
1, Compatible/Replacement for TE|3-1670894-1 Automotive Connectors Product Related Attributes:
| Product Type Characteristics | Connector shape : Rectangular |
| Connector System : Wire to Wire | |
| Connector and Shell Type : Female Terminal Boots | |
| Sealable : Yes | |
| Connectors and terminals terminated to : wires and cables | |
| Main Locking Features : On Terminal | |
| Hybrid Connector : No | |
| Structural Properties | Number of bits : 8 |
| Number of rows : 2 | |
| Electrical Characteristics | Operating voltage (VDC): 60 |
| Main Characteristics | Outlet angle : 180°, 90 |
| Main Product Color : Black | |
| Connector and keying code : C | |
| Characteristics of contacts | Terminal Type : Female |
| Terminal size : 2.8mm | |
| Width at male end of butt joint : 2.8 mm [ .11 in] | |
| Terminal current rating (max.) (A): 40 | |
| Mechanical accessories | Mating Alignment : With |
| Mating Alignment Type : Keyed | |
| Strain Relief : Without | |
| Connector Mounting Type : Cable Mount (Free Hanging) | |
| Terminal position guarantee : No | |
| Shell Characteristics | Housing material : PBT GF30 |
| Centerline (spacing) : 6 mm [ .236 in ] | |
| sizes | Product Length : 54.1 mm [ 2.13 in] |
| Product width: 25.7 mm [ 1.012 in] | |
| Connector Height: 31.25 mm [ 1.23 in] | |
| operating environment | Operating temperature (max.) : 140 °C [ 284 °F] |
| Operating Temperature Range : -40 - 140 °C [ -40 - 284 °F ] | |
| Operation/Application | Circuit Applications : Power Supplies |
| industry standard | UL Flame Retardant Rating : UL 94V-0 |
| Protection class : IP67 | |
| Packaging Characteristics | Encapsulation method : Box |
| Number of packages : 300 | |
| (sth. or sb) else | Ability to guarantee connector position : No |
| Repairable : Yes |
-----------------------------------------------------------------------------------------------

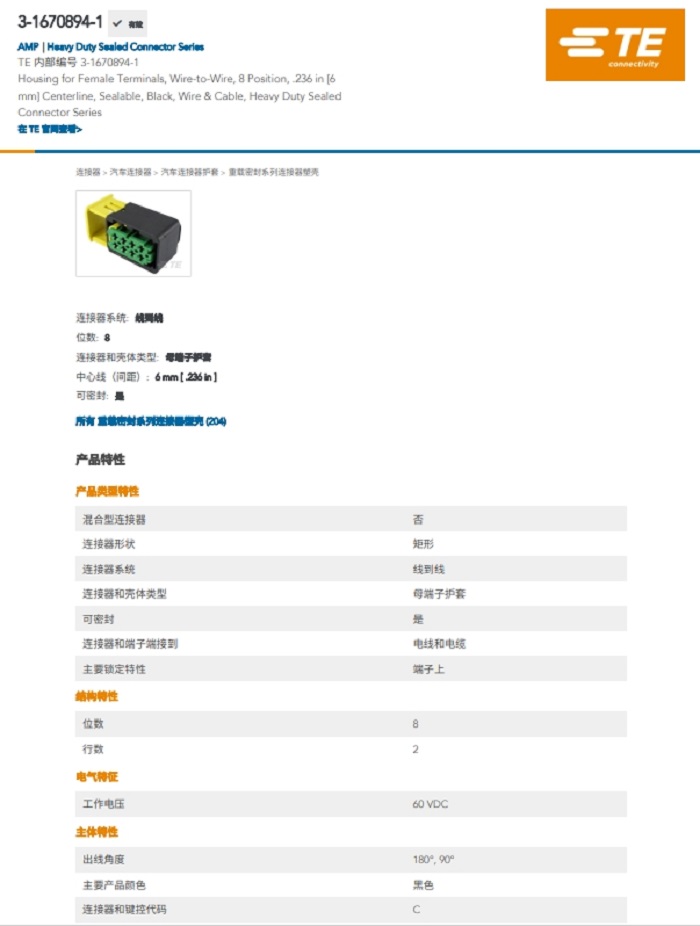

2, Compatible / Alternative to TE|3-1670894-1 Automotive Connectors Product Specification:
------------------------------------------------------------------------------------------------
3, Compatible / Alternative TE|3-1670894-1 Automotive Connectors Product Part Number / Model Number List:
| 1-1670894-1 | 2-1670894-1 | 3-1670894-1 | 4-1670894-1 |
------------------------------------------------------------------------------------------------
4, Automotive Connectors - Offer Compatible TE|3-1670894-1 Automotive Connector Replacement This product seller:
We are a professional distributor of [Automotive Connectors - Compatible TE|3-1670894-1 Automotive Connector Replacement] and specialized in distributing/manufacturing/selling various kinds of {Connectors|Wire Harnesses|Wire Cables}; If you would like to buy or know what Connectors|Wire Harnesses|Wire Cables solutions we can provide, please feel free to contact us through the following ways.
