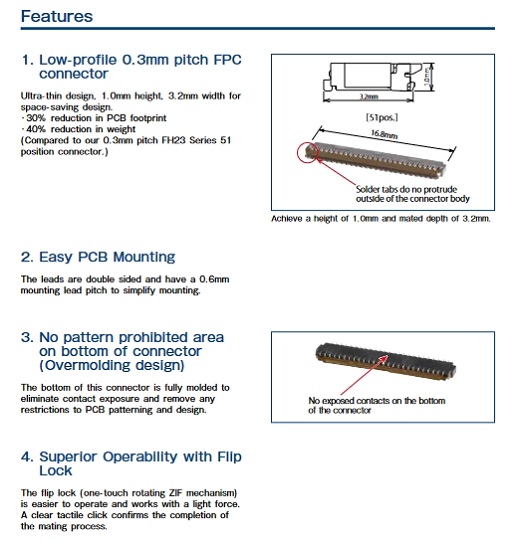

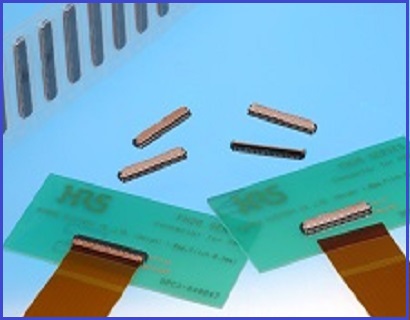

Compatible/Replacement HRS|Hirose|Hirose|Hirose Connectors|FH26W-35S-0.3SHW FPC Connector is a: 0.3mm pitch, 1.0mm height FPC connector; its main features and benefits are: 1. Low pitch 0.3mm FPC connector with ultra-thin design, height of 1.0mm, width of 3.2mm, saving design space; PCB 30% reduction in PCB footprint; 40% weight reduction (compared to our 0.3mm pitch FH23 Series 51) graphics and design any constraints on PCB graphics and design. 4. Flip Lock Lock Flip Lock (one-touch rotary ZIF mechanism) Easier to operate with a gentle push. A clear "click " signals the completion of the mating process Joining process. HRS|Hirose|Hirose|Hirose Connectors|FH26W-35S-0.3SHW FPC Connector Replacement].
------------------------------------------------------------------------------------------------
1、Compatible / Replacement HRS | Hirose Connectors | Hirose | FH26 Series Connectors FPC connector products related specifications and parameters:.
| Item | Speciffcation | Conditions |
| Insulation Resistance | 50M Q Min. | 100V DC |
| Withstanding Voltage | No flashover or insulation breakdown. | 90V AC for 1 min. |
| Contact Resistance | 100m Q Max.Including FPC conductor resistance | 1mA |
| Mating Durability (Insertion/Withdrawal) | Contact resistance : 100m Q MaxNo damage, cracks, or parts dislocation. | 10 cycles |
| Vibration | No electrical discontinuity of 1 u s or moreContact resistance : 100m Q Max.No damage, cracks, or parts dislocation | Frequency : 10 to 55 Hzsingle amplitude of 0.75mm,10 cycles, 3 directions. |
| Shock | No electrical discontinuity of 1 u s. Min.Contact resistance : 100m Q Max.No damage, cracks, or parts dislocation | Acceleration of 981 m/s?6 ms duration, sine half-wave waveform.3 cycles in each of the 3 axis |
| Humidity(Steady State) | Contact resistance :100m Q MaxInsulation resistance : 50M Q MinNo affect on appearance or performance. | 96 hours at temperature of 40 士 2C and humidity of90% to 95%. |
| Temperature Cycle | Contact resistance : 100m Q MaxInsulation resistance : 50M Q Min.No damage, cracks, or parts looseness. | Temperature : -55C-+15C to 35C- +85C++15C to +35C Time : 30 - 2 to 3 - 30 - 2 to 3 (Minutes)5 cycles |
| Resistance to Soldering Heat | No deformation of components affectingperformance. | Reflow : At the recommended temperature profileManual soldering: 350C +/-10C for 51 seconds |
------------------------------------------------------------------------------------------------
2, Compatible / Alternative HRS | Hirose Connectors | Hirose | FH26 Series Connectors FPC connector product specification:
------------------------------------------------------------------------------------------------
3, Compatible / Replacement HRS | Hirose Connectors | Hirose | FH26 Series Connectors FPC connector product material number / model list:
| FH26W-13S-0.3SHW | FH26W-19S-0.3SHW | FH26W-25S-0.3SHW | FH26W-31S-0.3SHW | FH26W-37S-0.3SHW |
| FH26W-15S-0.3SHW | FH26W-21S-0.3SHW | FH26W-27S-0.3SHW | FH26W-33S-0.3SHW | FH26W-39S-0.3SHW |
| FH26W-17S-0.3SHW | FH26W-23S-0.3SHW | FH26W-29S-0.3SHW | FH26W-35S-0.3SHW |
------------------------------------------------------------------------------------------------
