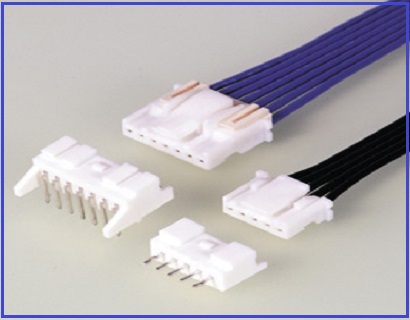

Compatible/Replacement Japan Crimp Terminal |JST|Japanese Crimp Terminal Connector|B06B-PASK-1 Connectors for Relay Connection are: 2.0mm pitch PA series connectors consisting of crimp connectors for wire-to-panel connection (PA connectors), crimp connectors for wire-to-panel connection (PAF connectors), and crimp connectors for relay connection (PAL connectors). These connectors are 2.0mm pitch connectors with a strong locking mechanism, making it possible to connect complex wiring patterns. The main features of these connectors are: a strong locking mechanism; mutually compatible crimp and crimp double sockets; a wide range of products that can be further expanded by using a retainer depending on the application; PA connectors (standard type, retainer-compatible type); highly reliable terminals; an insertion-guiding structure; and flanged stamped pins. Japan Crimp Terminal | JST | Japan Crimp Terminal Connector | B06B-PASK-1 Replacement Connector for Relay Connection].
------------------------------------------------------------------------------------------------
1, Compatible / Alternative to Japan Crimp Terminal | JST | Japan Crimp Terminal Connector | B06B-PASK-1 Relay Connection Connector product specifications and parameters:
| range | PA |
| wrap | Tape and Reel (TR) |
| product status | unsold |
| Connector Type | terminal (electrical engineering) |
| Contact type | Male Pin |
| Pitch - Mating | 0.079"（2.00mm） |
| pin position | 6 |
| number of items, etc. in a total | 1 |
| type | Board to Cable/Wire |
| shroud | With Shelter - 4 Walls |
| Installation type | Surface Mount |
| nock (of a bow) | soldered |
| Fastening type | Locking Pin Chute |
| Insulation height | 0.350"（8.89mm） |
| Contact shape | square-shaped |
| Contact Finish - Mating | 锡 |
| Contact Finish - Column | 锡 |
| Contact Material | copper alloy |
| insulating material | Polyamide (PA), Nylon |
| characterization | Pick and Place, Weld Hold |
| operating temperature | -25°C ~ 85°C |
| Material flammability class | UL94 V-0 |
| Insulation color | natural |
| Rated current (amps) | 3A |
| rated voltage | 250V |
| Joint Stacking Height | 11.1mm，16mm，16.2mm |
------------------------------------------------------------------------------------------------

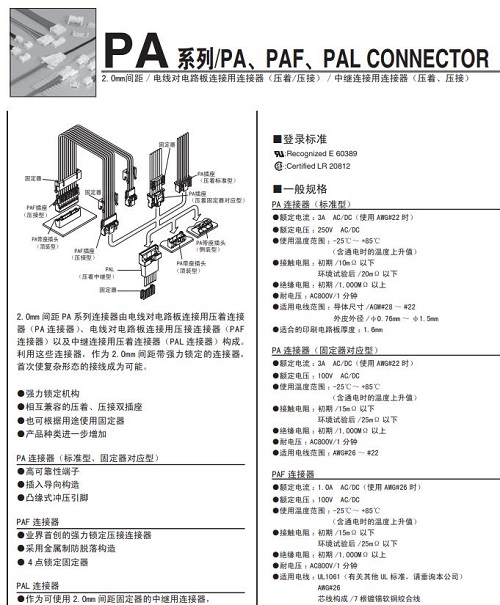

2, Compatible / Alternative to Japan Crimp Terminal | JST | Japan Crimp Terminal Connector | B06B-PASK-1 Connectors for Relay Connections Product Specification:
------------------------------------------------------------------------------------------------
3, compatible / alternative to Japan Crimp Terminal | JST | Japan Crimp Terminal Connector | B06B-PASK-1 Relay Connection Connector product number / model list:
| BM02B-PASS-TFT | BM03B-PASS-TFT | B09B-PNISK-1A | BM09B-GHS-TBT | BM07B-GHS-TBT |
| B02B-PASK-1 | B05B-PASK-1 | BM12B-PUDSS-TFC | BM20B-ZPDTRS-TF | 02T-JWPF-VSLE-S |
| BM03B-PASS-TFT | B06B-PASK-1 |
------------------------------------------------------------------------------------------------
