Categorization：Replacement Connector

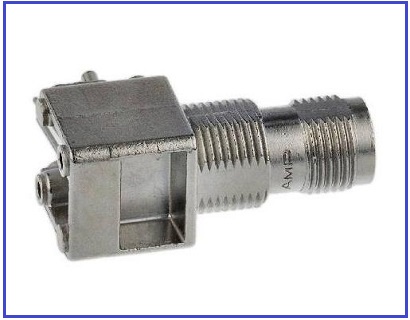

Compatible/Replacement Tyco|TE|Tyco Connector|1-2199230-6 PCI Connector is a: TNC RF Interface, Jack, 50 Ω, Screw, 11 GHz Operating Frequency, Cable-to-Board, 1 Position, Printed Circuit Board, Panel Mount. [Provide Tyco|TE|Tyco Connector|5227839-1 RF Connector Replacement].
------------------------------------------------------------------------------------------------
1, Compatible / Alternative Tyco | TE | Tyco Connectors | 5227839-1 RF connector products related specifications and parameters:
| Products. | PCB Receptacles |
| RF Series. | TNC |
| Model: 1 | Jack (Socket) |
| Impedance. | 50 Ohms |
| Greater Frequency. | 11 GHz |
| Termination Type. | Solder |
| Directions. | Right Angle |
| Polarity. | Standard |
| Mounting Style. | Through Hole |
| Cable Type. | - |
| IP Rating. | - |
| Packaging. | Tray |
| Main Body Finish. | Nickel |
| Main Material. | Zinc Die Cast |
| Trademark. | TE Connectivity / AMP |
| Contact Plating. | Gold |
| Insulation resistance. | 5000 MOhms |
| Product Type. | RF Connectors / Coaxial Connectors |
| Voltage rating. | 500 V |
| Unit weight. | 19.504 g |
------------------------------------------------------------------------------------------------

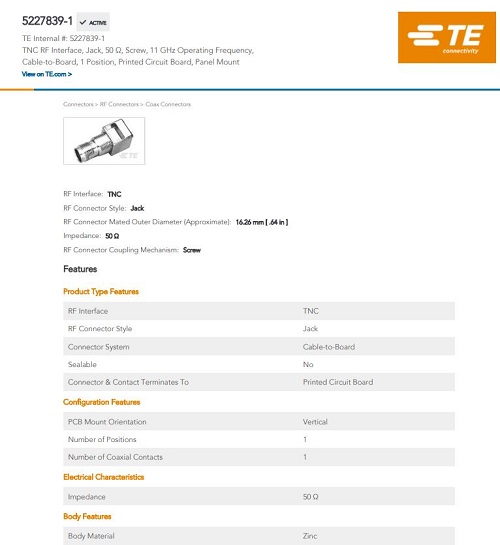

2, Compatible/Replacement Tyco|TE|The Tyco Connector|5227839-1 RF Connector Product Specification:
------------------------------------------------------------------------------------------------
3, Compatible / Replacement Tyco | TE | Tyco Connectors | 5227839-1 RF connector product part number / model number list:
| 5227839-1 | 1-2199230-6 |
------------------------------------------------------------------------------------------------
4, RF Connector - Provide Compatible TE|5227839-1 RF Connector Replacement This product seller:
RF Connectors - Compatible with TE|5227839-1 RF Connector Replacement] and specializing in the agency / production / sales of a variety of {connectors | wiring harness | cable products}; if you want to buy or understand what we can provide connectors | wiring harness | cable products solutions, welcome to contact us through the following way.
