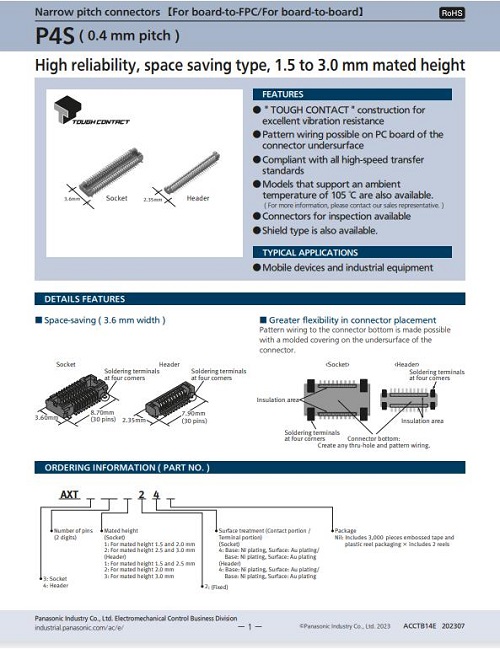

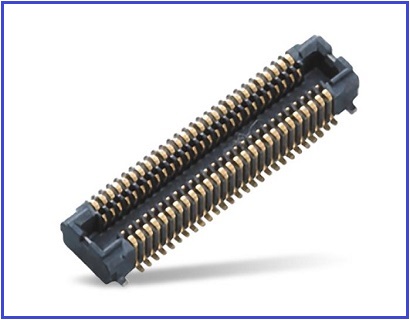

Compatible/Replacement Panasonic|Panasonic|Panasonic Connectors|AXT510124 Board-to-Board Connector is a:P4S Narrow Pitch Connectors are 0.4mm connectors that provide board-to-board and board-to-FPC connections. These connectors offer space savings compared to the P4 series with retention fittings.The P4S connectors feature a rugged contact construction that is highly resistant to shock, foreign objects, solder creep, and corrosion. These connectors are ideally suited for modular unit inspection and inspection during device assembly.Panasonic P4S connectors are ideal for compact portable devices such as cellular phones, DVCs, and digital cameras. Panasonic P4S connectors are ideal for compact portable devices such as cell phones, DVCs, digital cameras, etc. [Offer Panasonic|Panasonic|Panasonic Connectors|AXT510124 Board-to-Board Connector Replacement].


------------------------------------------------------------------------------------------------
1, Compatible/Replacement Panasonic|Panasonic|Panasonic Connectors|AXT510124 Board-to-Board Connector product related specifications and parameters:

Electrical Characteristicsrated current0.3A/terminal (all cores total 5A or less)
rated voltage60V AC/DC
withstand voltage150V AC 1 minuteApply the specification voltage for 1 minute, there should be no short circuit or damage under the detection current of 1mA.
electrical insulation resistance1,000MΩ or more (initial)Measurement for 1 minute with a 250V DC megohmmeter.
contact resistance90mΩ or lessMeasurement method of contact resistance according to JIS C 5402
mechanical propertyCombined insertion force0.981N/core x number of cores or less (initial)
Combined drawing power0.0588N/core x number of cores or more
Environmental CharacterizationAmbient temperature-55~+85℃Should be free of ice and condensation at low temperatures
Solder heat resistanceInitial electrical and mechanical properties should be met.Reflow soldering: peak temperature below 260°C
(Surface temperature of the printed circuit board near the connector terminal section)
Soldering iron: 300℃ for less than 5 seconds, 350℃ for less than 3 seconds.
Storage temperature-55~+85℃(Product monomer)Should be free of ice and condensation at low temperatures
-40~+50℃(packing tape and reel)
Thermal shock resistance (combination)5 cycles1703575098844264.gif
Insulation resistance 100MΩ or more
Contact resistance 90mΩ or less
Humidity resistance (combination)120 hoursIEC60068-2-78
Insulation resistance 100MΩ or moreTemperature 40±2℃ Humidity 90~95%RH
Contact resistance 90mΩ or less
Saline sprayability (combination)24 hoursIEC60068-2-11
Insulation resistance 100MΩ or moreTemperature 35±2℃ Salt water concentration 5±1%
Contact resistance 90mΩ or less
Hydrogen sulfide (combination)48 hoursTemperature 40±2°C
Contact resistance 90mΩ or lessGas concentration 3±1ppm Humidity 75~80%RH
Lifetime performancePlug life50 timesRepeated plugging and unplugging frequency under 200 times/hour
weightsCombination height 1.5mm
20 pole Sockets 0.04g, plugs 0.02g

------------------------------------------------------------------------------------------------
2, Compatible/Replacement for Panasonic|Panasonic|Panasonic Connectors|AXT510124 Board-to-Board Connector Product Specification:


------------------------------------------------------------------------------------------------
3, Compatible/Replacement Panasonic|Panasonic|Panasonic Connectors|AXT510124 Board-to-Board Connector Product Part Number/Model Number List:

AXT440124AXT530124AXT624124AXK724147GAXK840145WG
AXT450124AXT534124AXT626124AXK730147GAXK850145WG
AXT460124AXT540124AXT630124AXK740147GAXK860145WG
AXT470124AXT542124AXT634124AXK750147GAXK870145WG
AXT480124AXT548124AXT640124AXK760147GAXK880145WG
AXT510124AXT550124AXT642124AXK770147GAXK5F10347YG
AXT516124AXT560124AXT648124AXK780147GAXK5F12347YG
AXT520124AXT610124AXT650124AXK820145WGAXK5F16347YG
AXT524124AXT616124AXT660124AXK824145WGAXK5F20347YG
AXT526124AXT620124AXK720147GAXK830145WG

------------------------------------------------------------------------------------------------
