Categorization：Replacement Connector

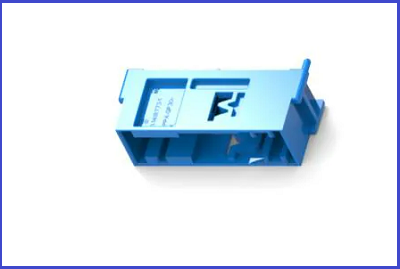

Compatible/Replacement Tyco|TE|Tyco Connector|1-1418773-1 Header Connector is a: Header Connector Through Hole 32 pos 0.100" (2.54mm) [Offer Tyco|TE|Tyco Connector|1-1418773-1 Header Connector Replacement].
------------------------------------------------------------------------------------------------
1, Compatible / alternative Tyco | TE | Tyco Connectors | 1-1418773-1 header connector products related specifications and parameters:
| makers | TE Connectivity AMP Connectors |
| range | Micro Quadlok |
| wrap | fitting |
| part status | unsold |
| Connector Type | terminal (electrical engineering) |
| Contact type | Male Pin |
| Pitch - Mating | 0.100"（2.54mm） |
| pin position | 32 |
| number of items, etc. in a total | 2 |
| Spacing - Mating | 0.100"（2.54mm） |
| Number of loaded pin positions | possess |
| type | Board to Cable/Wire |
| shroud | With Shelter - 4 Walls |
| Installation type | vent |
| nock (of a bow) | soldered |
| Fastening type | Latch Holder |
| Contact Length - Mating | 0.256"（6.50mm） |
| Contact Length - Column | 0.110"（2.79mm） |
| Overall contact length | - |
| Insulation height | 0.795"（20.20mm） |
| Contact shape | square-shaped |
| Contact Finish - Mating | 锡 |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Column | 锡 |
| Contact Material | copper alloy |
| insulating material | Polyphthalamide (PPA), Glass-Filled |
| characterization | plate guide |
| operating temperature | -40°C ~ 85°C |
| intrusion protection | - |
| Material flammability class | - |
| Insulation color | blue (color) |
| Rated current (amps) | - |
| rated voltage | - |
| Joint Stacking Height | - |
| Contact Finish Thickness - Column | - |
| appliance | automotive grade |
| Basic Product Number | 1418773 |
------------------------------------------------------------------------------------------------

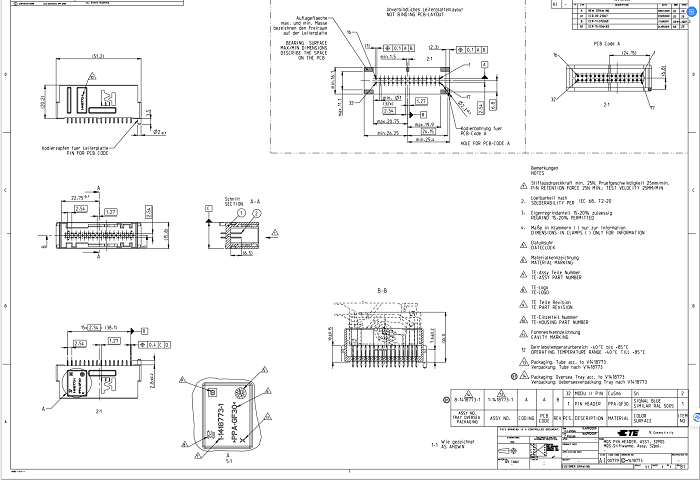

2, Compatible / Alternative Tyco | TE | Tyco Connectors | 1-1418773-1 header connector product specification:
------------------------------------------------------------------------------------------------
3, Compatible / Replacement Tyco | TE | Tyco Connectors | 1-1418773-1 header connector product number / model list:
| 1-936119-1 | 2291392-2 | 1-2291392-2 | 2326910-8 |
| 1-936119-2 | 2291392-3 | 1-2291392-3 | 2326910-9 |
| 936121-1 | 2291392-4 | 2-2291392-0 | 1-2326910-0 |
| 936121-2 | 2291392-5 | 2326910-1 | 1-2326910-1 |
| 1379102-1 | 2291392-6 | 2326910-2 | 1-2326910-2 |
| 1379101-1 | 2291392-7 | 2326910-3 | 1-2326910-3 |
| 953697-1 | 2291392-8 | 2326910-4 | 2-2326910-0 |
| 2296121-1 | 2291392-9 | 2326910-5 | 2138710-1 |
| 1-1418773-1 | 1-2291392-0 | 2326910-6 | 2138710-2 |
| 2291392-1 | 1-2291392-1 | 2326910-7 | 2138710-3 |
-------------------------------------------------------------------------------------------------
4、Pin Header Connector - Offer Compatible TE|1-1418773-1 Pin Header Connector Replacement This product seller:
We are a professional distributor of [Pin Header Connectors - Offer Compatible TE|1-1418773-1 Pin Header Connector Replacement] and a professional distributor/manufacturer/seller of all kinds of {Connectors|Wire Harnesses|Wire Cables}; If you would like to buy or find out what connectors, wire harnesses, cables and other solutions we have to offer, please feel free to contact us through the following ways.
