Categorization：Replacement Connector

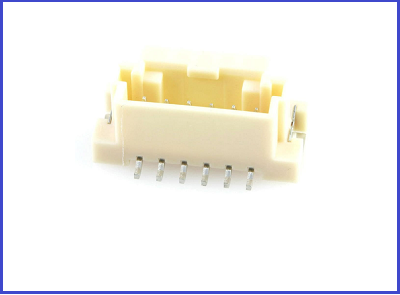

Compatible/Replacement Molex|Molex|Molex Connector|560020-0620 Header Connector is a: DuraClik Wire-to-Board Header, Single Row, Vertical, 6-Way, Nickel-on-Tin (Sn), Natural [Offer Molex|Molex|Molex Connector|560020-0620 Header Connector Replacement].
------------------------------------------------------------------------------------------------
1, Compatible/Replacement Molex|Molex|Molex Connectors|560020-0620 Header Connector products related specifications and parameters:
| Products. | Headers |
| Type. | Shrouded |
| Number of Positions. | 6 Position |
| Pitch. | 2 mm |
| Exclusions: 1 | 1 Row |
| Line spacing. | - |
| Mounting Style. | SMD/SMT |
| Termination Type. | Solder |
| Mounting Angle. | Straight |
| Contact Type. | Pin (Male) |
| Contact Plating. | Tin |
| Series. | 560020 |
| Trademark Name. | DuraClik |
| Applications. | Wire-to-Board, Signal |
| Minimum Operating Temperature. | - 40 C |
| Higher Operating Temperature. | + 105 C |
| Packaging. | Reel |
| Packaging. | Cut Tape |
| Packaging. | MouseReel |
| Attachment type. | - |
| Trademark. | Molex |
| Contact Material. | Copper Alloy |
| Contact Type. | - |
| Current rating. | 3 A |
| Flammability Class. | UL 94 V-0 |
| Shell color. | Natural |
| Housing material. | Polyamide (PA) |
| Insulation resistance. | 1000 MOhms |
| Product Type. | Headers & Wire Housings |
| Factory Packing Quantity. | 2600 |
| Subcategories. | Headers & Wire Housings |
| Voltage rating. | 125 V |
| Unit weight. | 840 mg |
------------------------------------------------------------------------------------------------

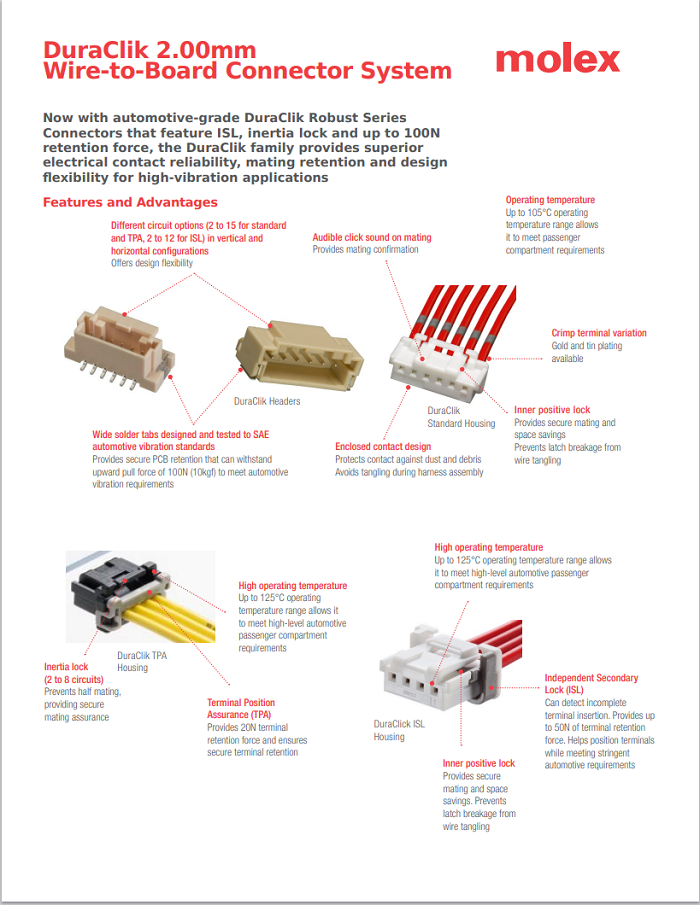

2, Compatible/Replacement for Molex|Molex|Molex Connectors|560020-0620 Header Connector Product Specification:
------------------------------------------------------------------------------------------------
3, Compatible / Replacement Molex|Molex|Molex Connectors|560020-0620 Header Connector Product Part Number / Model Number List:
| 560020-0220 | 560020-1020 | 502352-0400 | 502352-1200 |
| 560020-0320 | 560020-1120 | 502352-0500 | 502352-1300 |
| 560020-0420 | 560020-1220 | 502352-0600 | 502352-1400 |
| 560020-0520 | 560020-1320 | 502352-0700 | 502352-1500 |
| 560020-0620 | 560020-1420 | 502352-0800 | 98192-0001 |
| 560020-0720 | 560020-1520 | 502352-0900 | 98982-0021 |
| 560020-0820 | 502352-0200 | 502352-1000 | 98982-1016 |
| 560020-0920 | 502352-0300 | 502352-1100 | 98982-1010 |
-------------------------------------------------------------------------------------------------
4、Pin Header Connectors - Offer Compatible Molex|560020-0620 Pin Header Connector Replacement This product seller:
Agent sales to provide [pin header connectors - to provide compatible Molex | 560020-0620 pin header connector alternatives] as well as specializing in the agency / production / sales of a variety of {connectors | wiring harness | wire and cable products}; if you want to buy or understand what we can provide connectors | wiring harness | wire and cable products solutions, welcome to contact us through the following way.
