Categorization：Replacement Connector

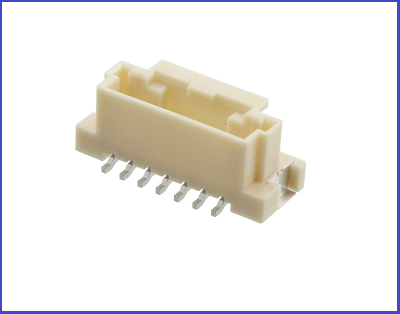

Compatible/Replacement Molex|Molex|Molex Connector|560020-0720 Header Connector is a : Header Connector Surface Mount 7 pos 0.079" (2.00mm). [Offer Molex|Molex|Molex Connector|560020-0720 Header Connector Replacement].
------------------------------------------------------------------------------------------------
1, Compatible/Replacement Molex|Molex|Molex Connectors|560020-0720 Header Connector products related specifications and parameters:
| makers | Molex |
| range | DuraClik 560020 |
| wrap | Tape and Reel (TR) |
| Shear Tape (CT) | |
| part status | unsold |
| Connector Type | terminal (electrical engineering) |
| Contact type | Male Pin |
| Pitch - Mating | 0.079"（2.00mm） |
| pin position | 7 |
| number of items, etc. in a total | 1 |
| Spacing - Mating | - |
| Number of loaded pin positions | possess |
| type | Board to Cable/Wire |
| shroud | With Shelter - 4 Walls |
| Installation type | Surface Mount |
| nock (of a bow) | soldered |
| Fastening type | pin lock |
| Contact Length - Mating | - |
| Contact Length - Column | - |
| Overall contact length | - |
| Insulation height | 0.315"（8.00mm） |
| Contact shape | square-shaped |
| Contact Finish - Mating | 锡 |
| Contact Finish Thickness - Mating | - |
| Contact Finish - Column | 锡 |
| Contact Material | copper alloy |
| insulating material | Polyamide (PA), Nylon |
| characterization | fixed brackets |
| operating temperature | - |
| intrusion protection | - |
| Material flammability class | - |
| Insulation color | natural |
| Rated current (amps) | - |
| rated voltage | - |
| Joint Stacking Height | 9.3mm |
| Contact Finish Thickness - Column | - |
| appliance | Automotive Grade, Industrial Grade |
| Basic Product Number | 560020 |
------------------------------------------------------------------------------------------------

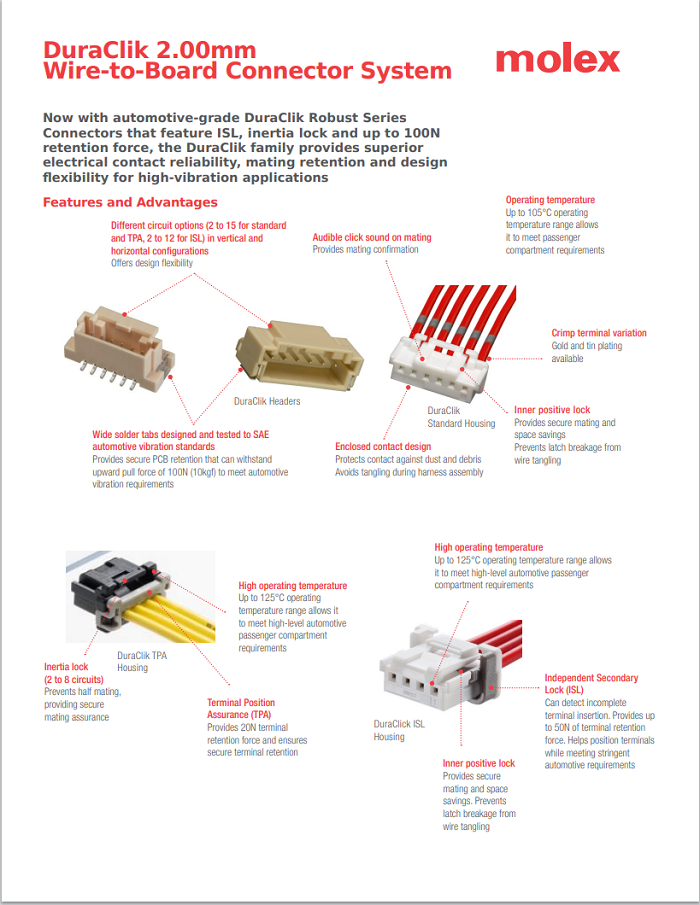

2, Compatible/Replacement for Molex|Molex|Molex Connectors|560020-0720 Header Connector Product Specification:
------------------------------------------------------------------------------------------------
3, Compatible / Replacement Molex|Molex|Molex Connectors|560020-0720 Header Connector Product Part Number / Model Number List:
| 560020-0220 | 560020-1020 | 502352-0400 | 502352-1200 |
| 560020-0320 | 560020-1120 | 502352-0500 | 502352-1300 |
| 560020-0420 | 560020-1220 | 502352-0600 | 502352-1400 |
| 560020-0520 | 560020-1320 | 502352-0700 | 502352-1500 |
| 560020-0620 | 560020-1420 | 502352-0800 | 98192-0001 |
| 560020-0720 | 560020-1520 | 502352-0900 | 98982-0021 |
| 560020-0820 | 502352-0200 | 502352-1000 | 98982-1016 |
| 560020-0920 | 502352-0300 | 502352-1100 | 98982-1010 |
-------------------------------------------------------------------------------------------------
4、Pin Header Connectors - Offer Compatible Molex|560020-0720 Pin Header Connector Replacement This product seller:
Agent sales to provide [pin header connectors - to provide compatible Molex | 560020-0720 pin header connector alternatives] as well as specializing in the agency / production / sales of a variety of {connectors | wiring harness | wire and cable products}; if you want to buy or understand what we can provide connectors | wiring harness | wire and cable products solutions, welcome to contact us through the following way.
