Categorization：Replacement Connector
Compatible/Replacement Samtec Connector | IPL1-124-02-L-D-K Rectangular Connector is a: (2.54 mm.) 100" Pitch-Discrete Wire Terminal. Samtec IPL1-124-02-L-D-K Rectangular Connector is a (2.54 mm.) 100" Pitch - Discrete Wire Terminal.
------------------------------------------------------------------------------------------------
1, Compatible/Replacement Samtec Connector|IPL1-124-02-L-D-K Rectangular Connector product specifications and parameters:
| Manufacturer. | Samtec |
| Product Category. | Headers and casings |
| Products. | Headers |
| Type. | Discrete Wire |
| Number of Positions. | 48 Position |
| Pitch. | 2.54 mm |
| Exclusions: 1 | 2 Row |
| Mounting Style. | SMD/SMT |
| Termination Type. | Solder Pin |
| Mounting Angle. | Straight |
| Contact Type. | Pin (Male) |
| Contact Plating. | Gold |
| Applications. | Wire-to-Board |
| Minimum Operating Temperature. | - 55 C |
| Higher Operating Temperature. | + 125 C |
| Packaging. | Tube |
| Trademark. | Samtec |
| Contact Material. | Phosphor Bronze |
| Current rating. | 2.1 A to 4.8 A |
| Flammability Class. | UL 94 V-0 |
| Shell color. | Natural |
| Housing material. | Liquid Crystal Polymer (LCP) |
| Latch Type. | Unlatched |
| Product Type. | Headers & Wire Housings |
| Factory Packing Quantity. | 9 |
| Subcategories. | Headers & Wire Housings |
| Voltage rating. | 675 VAC, 954 VDC |
------------------------------------------------------------------------------------------------

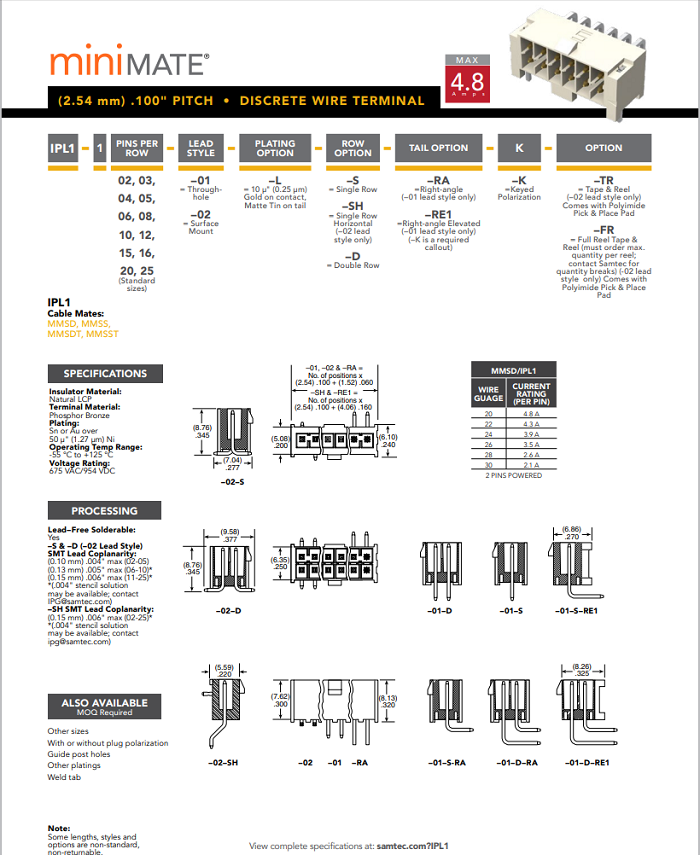

2, Compatible/Replacement Samtec Connector|IPL1-124-02-L-D-K Rectangular Connector Product Specification:
------------------------------------------------------------------------------------------------
3, Compatible/Replacement Samtec Connectors | IPL1-124-02-L-D-K Rectangular Connector Product Part Number/Model Number List:
| IPL1-124-01-L-S-RE1-K | IPL1-125-02-L-D-K-TR | ISDM-14 | ISDM-28 |
| IPL1-124-02-L-D-K | IPL1-125-02-L-SH-K | ISDM-14-K | ISDM-28-K |
| IPL1-124-02-L-D-K-TR | IPL1-125-02-L-SH-K-TR | ISDM-16 | ISDM-30 |
| IPL1-124-02-L-SH-K | IPL1-125-02-L-S-K | ISDM-16-K | ISDM-30-K |
| IPL1-124-02-L-SH-K-TR | IPL1-125-02-L-S-K-TR | ISDM-18 | ISDM-32 |
| IPL1-124-02-L-S-K | ISDM-04 | ISDM-18-K | ISDM-32-K |
| IPL1-124-02-L-S-K-TR | ISDM-06 | ISDM-20 | ISDM-34 |
| IPL1-125-01-L-D-K | ISDM-06-K | ISDM-20-K | ISDM-34-K |
| IPL1-125-01-L-D-RA-K | ISDM-08 | ISDM-22 | ISDM-36 |
| IPL1-125-01-L-D-RE1-K | ISDM-08-K | ISDM-22-K | ISDM-36-K |
| IPL1-125-01-L-S-K | ISDM-10 | ISDM-24 | ISDM-38 |
| IPL1-125-01-L-S-RA-K | ISDM-10-K | ISDM-24-K | ISDM-38-K |
| IPL1-125-01-L-S-RE1-K | ISDM-12 | ISDM-26 | ISDM-40 |
| IPL1-125-02-L-D-K | ISDM-12-K | ISDM-26-K | ISDM-40-K |
-------------------------------------------------------------------------------------------------
4, Rectangular Connector - Provide compatible Samtec|IPL1-124-02-L-D-K Rectangular Connector Replacement This product seller:
Rectangular Connector - Compatible Samtec | IPL1-124-02-L-D-K Rectangular Connector Replacement] and specializing in the agency / production / sales of a variety of {connectors | wiring harness | wire and cable products}; if you want to buy or understand what we can provide connectors | wiring harness | wire and cable products solutions, welcome to contact us through the following way.
