Compatible/Replacement Tyco|TE|Tyco Connector|2286550-1 Automotive Connector is a: Data Connection Header, A, Wire-to-Board, 6 Position, 0.079" [2mm] Centerline, Shielded, Horizontal, Signal, -40-221°F [-40-105°C], HSD.[Offer Tyco|TE|Tyco Connectors|2286550-1 Automotive Connector Replacement].
------------------------------------------------------------------------------------------------
1, Compatible / alternative Tyco | TE | Tyco Connector | 2286550-1 automotive connector products related specifications and parameters:
| Product Type Characteristics |
| Connectors and terminals terminated to : Printed Circuit Boards |
| Connector System : Wire to Board |
| Sealable : No |
| Hybrid Connector : Yes |
| Structural Properties |
| Number of bits : 6 |
| PCB Mounting Orientation : Horizontal |
| Electrical Characteristics |
| Operating voltage (VDC): 60 |
| 阻抗 (Ω): 100 |
| Main Characteristics |
| Body material : PPA GF25, ZnAL4Cu1 |
| Connector and keying code : A |
| PCB Retention of Characteristics Plating Material : Tin |
| Characteristics of contacts |
| RF Connector Center Terminal Plating Material : Gold (Au) |
| Plating material for terminal contact : Gold |
| Terminal Type : Pin |
| Mating Pin Diameter: .6 mm [.024 in] |
| Center contact: with |
| Termination Characteristics |
| PCB Termination Method : Through Hole - Solder |
| Mechanical accessories |
| PCB Mounting Fixing Type : Solder Tail |
| PCB mounting fixing : with |
| Joint fixing : with |
| Shell Characteristics |
| Case Color : Black |
| Centerline (spacing) : 2 mm [ .079 in ] |
| sizes |
| Product Length : 15.65 mm [ .616 in] |
| Product width : 27.3 mm [ 1.074 in] |
| Connector Height : 10.95 mm [ .431 in] |
| operating environment |
| Operating temperature (larger) (°C): 65, 70, 75, 80, 85, 90, 100, 105 |
| Operating temperature (larger) (°F): 149, 158, 167, 176, 185, 194, 212, 221 |
| Operating Temperature Range : -40 - 105 °C [ -40 - 221 °F ] |
| Operation/Application |
| Assembly process characteristics : Plate support |
| Masking : Yes |
| Circuit Application : Signal |
| Packaging Characteristics |
| Encapsulation method : Reel |
| Number of packages : 300 |
| (sth. or sb) else |
| Dielectric material : PA GF |
| Plating material for external terminals : Other |
| Interface number: 114-94444 |
| Soldering process : Reflow soldering |
------------------------------------------------------------------------------------------------

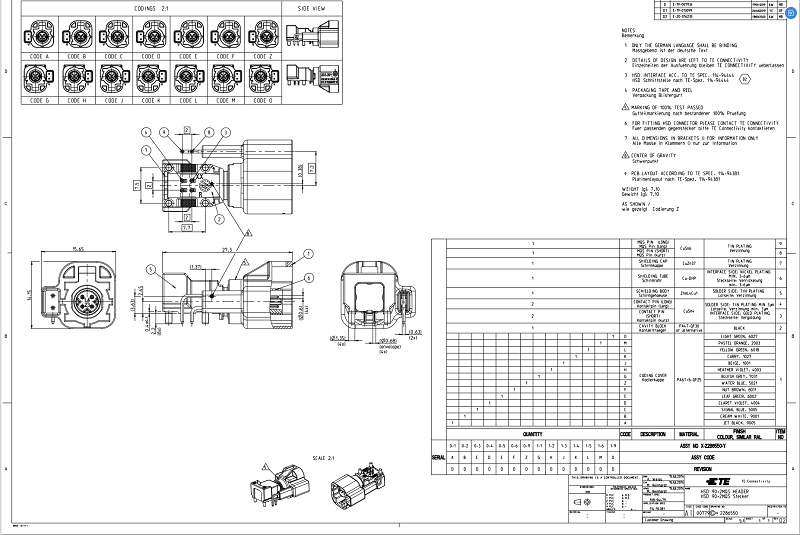

2, Compatible / Alternative Tyco|TE|Tyco Connectors|2286550-1 Automotive Connectors Product Specification:
------------------------------------------------------------------------------------------------
3, Compatible / Alternative Tyco | TE | Tyco Connectors | 2286550-1 Automotive Connectors Product Part Number / Model Number List:
| 1-2286547-5 | 1554983-2 | 1-1452483-4 | 1-776280-2 |
| 1-2286547-6 | 1554983-3 | 1-1452483-1 | 1-776267-1 |
| 1-2286547-9 | 1554983-4 | 0-1452480-1 | 1-776267-2 |
| 2286550-1 | 1554983-5 | 0-1452480-2 | 1-776267-4 |
| 2286550-2 | 1554983-6 | 0-1452480-3 | 1-776267-5 |
| 2286550-3 | 0-1452483-1 | 0-1452480-4 | 1-776087-1 |
| 2286550-4 | 0-1452483-2 | 0-1452480-5 | 1-776087-2 |
| 2286550-6 | 0-1452483-3 | 0-1452480-6 | 1-776087-4 |
| 2286550-5 | 0-1452483-4 | 0-1452480-7 | 1-776087-5 |
| 2286550-9 | 0-1452483-5 | 0-1452480-8 | 1-776163-1 |
| 2325130-1 | 0-1452483-6 | 0-1452480-9 | 1-776163-2 |
| 2325130-2 | 0-1452483-7 | 1-1452480-0 | 1-776163-4 |
| 2325130-3 | 0-1452483-8 | 1-1452480-1 | 1-776163-5 |
| 2325130-4 | 0-1452483-9 | 1-1452480-2 | 1-776163-6 |
| 2325130-5 | 1-1452483-0 | 1-1452480-3 | 1-776276-1 |
| 2325130-6 | 1-1452483-2 | 1-1452480-4 | 1-776276-2 |
| 1554983-1 | 1-1452483-3 | 1-776280-1 | 1-776262-1 |
-------------------------------------------------------------------------------------------------
