Categorization：Replacement Connector
Compatible/Replacement Tyco|TE|Tyco Connector|1-1452480-3 Automotive Connector is a: Male Terminal Shell, Wire to Wire, 2 Positions, .315 in [8 mm] Centerline, Orange, Cable Mount (Free Hanging), -40-185°F [-40-85°C], Keyed M. [... Provides Tyco|TE|Tyco Connectors|1-1452480-3 Automotive Connector Replacement].
------------------------------------------------------------------------------------------------
1, Compatible / alternative Tyco | TE | Tyco Connector | 1-1452480-3 automotive connector products related specifications and parameters:
| Product Type Characteristics |
| Connector shape : Rectangular |
| Connector System : Wire to Wire |
| Connector and Shell Type : Male Terminal Boots |
| Sealable : No |
| Connectors and terminals terminated to : wires and cables |
| Key Locking Features : Housing Integration |
| Hybrid Connector : No |
| Structural Properties |
| Number of bits : 2 |
| Number of rows : 1 |
| Electrical Characteristics |
| Nominal voltage architecture (V): 800 |
| Main Characteristics |
| Main product color : Orange |
| Connector and keying code : M |
| Characteristics of contacts |
| Terminal Type : Pin |
| Terminal Size : .5mm |
| Mating Pin Diameter: .5 mm [.02 in] |
| Terminal current rating (higher value) (A): 1 |
| Mechanical accessories |
| Mating Alignment : With |
| Mating Alignment Type : Keyed |
| Connector Mounting Type : Cable Mount (Free Hanging) |
| Shell Characteristics |
| Centerline (spacing) : 8 mm [ 3.15 in ] |
| operating environment |
| Operating Temperature (larger) : 85 °C [ 185 °F] |
| Operating Temperature Range : -40 - 85 °C [ -40 - 185 °F ] |
| Operation/Application |
| Circuit Application : Signal |
------------------------------------------------------------------------------------------------

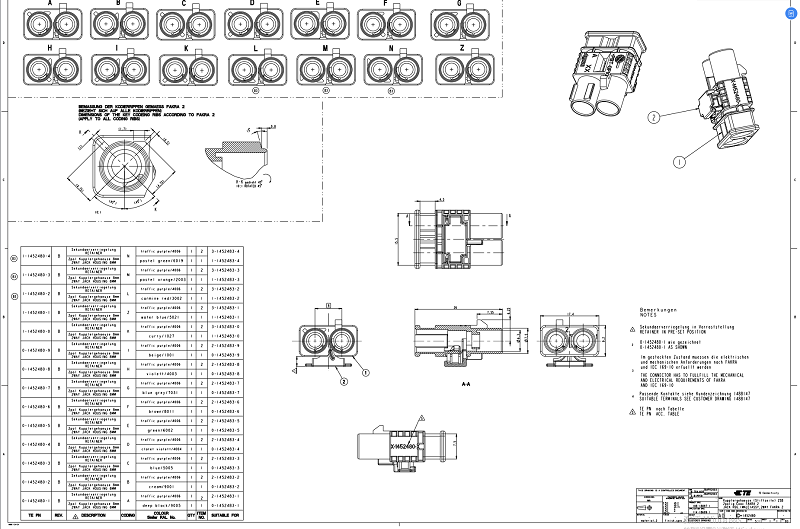

2, Compatible / Alternative Tyco|TE|Tyco Connectors|1-1452480-3 Automotive Connectors Product Specification:
------------------------------------------------------------------------------------------------
3, Compatible / Alternative Tyco | TE | Tyco Connectors | 1-1452480-3 Automotive Connectors Product Part Number / Model Number List:
| 1-2286547-5 | 1554983-2 | 1-1452483-4 | 1-776280-2 |
| 1-2286547-6 | 1554983-3 | 1-1452483-1 | 1-776267-1 |
| 1-2286547-9 | 1554983-4 | 0-1452480-1 | 1-776267-2 |
| 2286550-1 | 1554983-5 | 0-1452480-2 | 1-776267-4 |
| 2286550-2 | 1554983-6 | 0-1452480-3 | 1-776267-5 |
| 2286550-3 | 0-1452483-1 | 0-1452480-4 | 1-776087-1 |
| 2286550-4 | 0-1452483-2 | 0-1452480-5 | 1-776087-2 |
| 2286550-6 | 0-1452483-3 | 0-1452480-6 | 1-776087-4 |
| 2286550-5 | 0-1452483-4 | 0-1452480-7 | 1-776087-5 |
| 2286550-9 | 0-1452483-5 | 0-1452480-8 | 1-776163-1 |
| 2325130-1 | 0-1452483-6 | 0-1452480-9 | 1-776163-2 |
| 2325130-2 | 0-1452483-7 | 1-1452480-0 | 1-776163-4 |
| 2325130-3 | 0-1452483-8 | 1-1452480-1 | 1-776163-5 |
| 2325130-4 | 0-1452483-9 | 1-1452480-2 | 1-776163-6 |
| 2325130-5 | 1-1452483-0 | 1-1452480-3 | 1-776276-1 |
| 2325130-6 | 1-1452483-2 | 1-1452480-4 | 1-776276-2 |
| 1554983-1 | 1-1452483-3 | 1-776280-1 | 1-776262-1 |
-------------------------------------------------------------------------------------------------
4, Automotive Connectors - Offer Compatible TE|1-1452480-3 Automotive Connector Replacement This product seller:
We are a professional distributor of [Automotive Connectors - Offer Compatible TE|1-1452480-3 Automotive Connector Replacement] and specialize in the distribution of all kinds of {Connectors|Harnesses|Wire Harnesses|Cables}; If you would like to buy or know what connectors, harnesses and cables we have to offer, you are welcome to contact us through the following ways.
